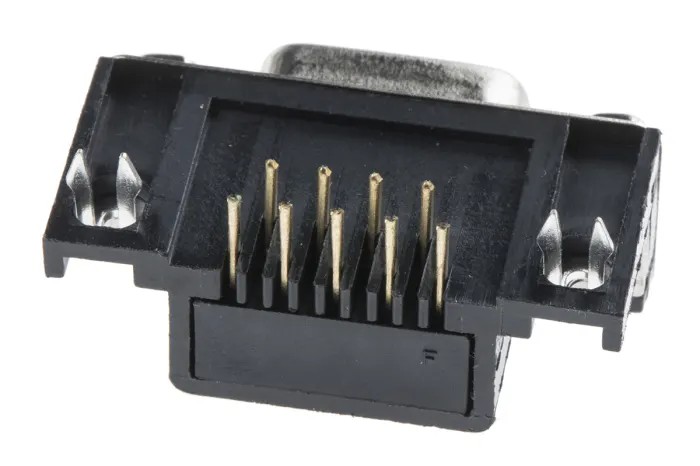

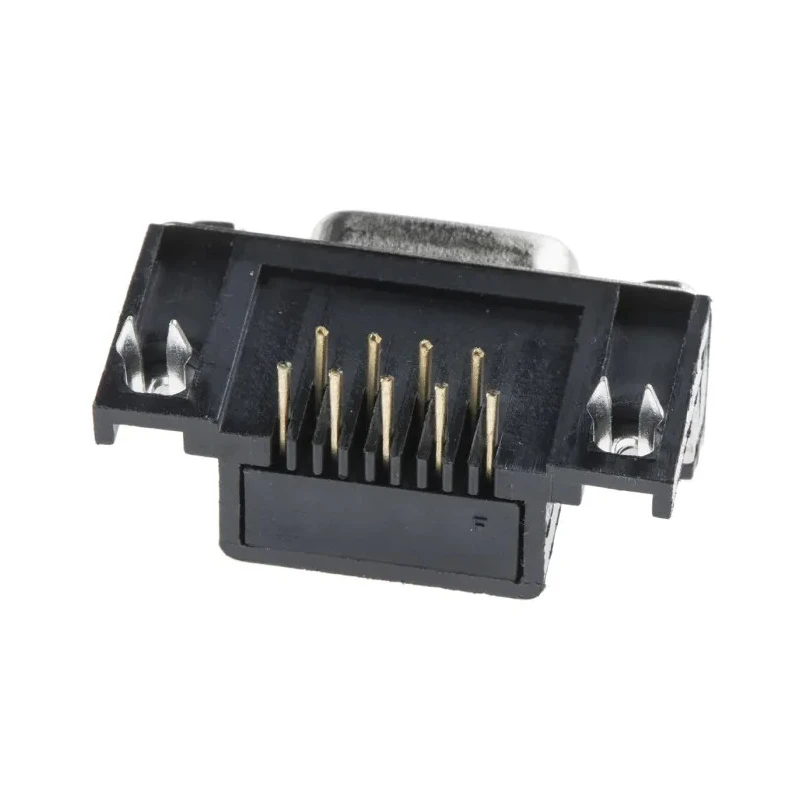

RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole Female D-Sub Connector with 4 to 40 UNC Screw Lock 811-7119

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole Female D-Sub Connector with 4 to 40 UNC Screw Lock 811-7119

Name: RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole Female D-Sub Connector with 4 to 40 UNC Screw Lock 811-7119
Brand: RS PRO
SKU: 375378
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	3A
Model	811-7119
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Brass
Series	107
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
A range of Right Angle PCB mount D-Sub connectors with	Nickel plated steel shells, Black Glass-Filled Thermoplastic PBT UL 94V-0 insert, Brass Gold flash plated stamped contacts, Brass Tin plated grounding hook boardlocks, Brass Nickel plated M3 threaded screwlocks installed and 9.4 mm footprint

Key Features

This D-Sub connector features 9 contacts rated for 3A current.
The right angle design facilitates PCB through hole mounting.
Connector housing is fibreglass reinforced polybutylene terephthalate providing durability.
Gold-plated brass contacts ensure reliable electrical connections.
Operating voltage is 250V with temperature range from -55°C to 105°C.
Solder termination type for secure wiring.
Mounting hardware includes 4 to 40 UNC screw lock for firm installation.
Connector gender is female and is part of the 107 series.

Product Description

RS PRO 811-7119 is a 9 Way Right Angle Female D-Sub Connector designed for PCB through hole mounting with a 2.77 mm pitch and 4 to 40 UNC screw lock mounting hardware.

Constructed with a fibreglass reinforced polybutylene terephthalate housing, this connector offers durability and resistance to environmental factors. It features brass contacts with gold plating that provide excellent electrical conductivity and corrosion resistance.

This connector is rated to carry currents up to 3 amperes and supports operating voltages of up to 250 volts. It operates reliably across a wide temperature range from -55°C to 105°C, ensuring performance in various industrial, electronic, and laboratory environments.

The right angle orientation and solder termination type allow secure and compact PCB mounting, ideal for applications requiring reliable, high-density electrical connections. Mounting hardware with 4 to 40 UNC screw locks ensure a secure mechanical connection to the device or enclosure.

9 contacts rated at 3A current. Right angle orientation for PCB through hole mounting. Fibreglass reinforced polybutylene terephthalate housing. Gold-plated brass contacts for durability and conductivity. 250V operating voltage and temperature range from -55°C to 105°C.

Solder termination type for strong connections. 4 to 40 UNC screw lock mounting hardware included. Female connector gender suitable for various electronic assemblies. Part of the RS PRO 107 series, made in China.

This product is ideal for use in industrial electronics, telecommunications, computing, and laboratory instrumentation where reliable and compact D-Sub connections are required. Its robust construction and secure mounting features make it suitable for demanding applications in manufacturing and repair.
