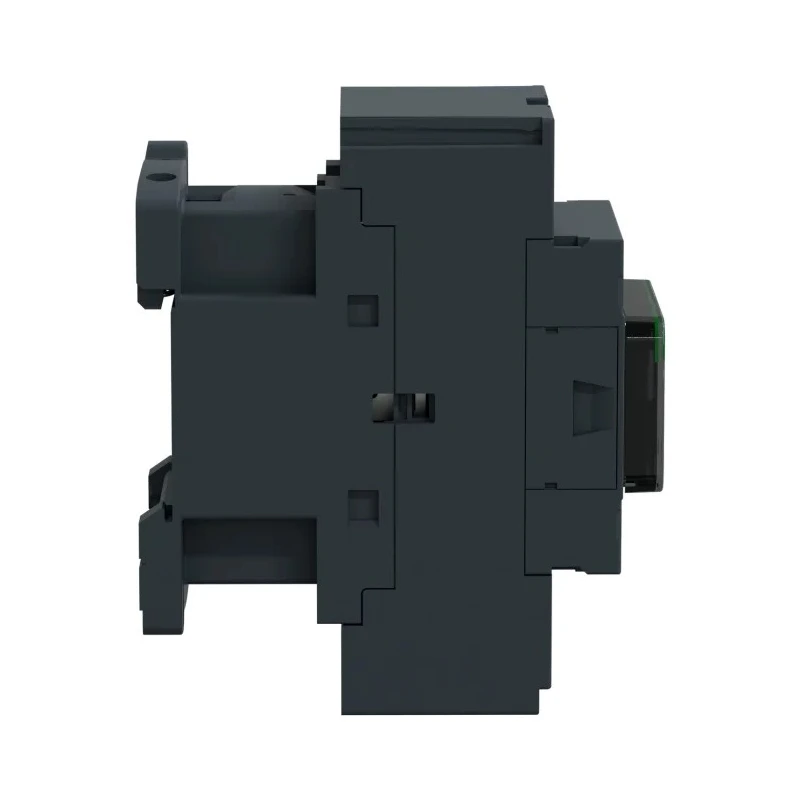

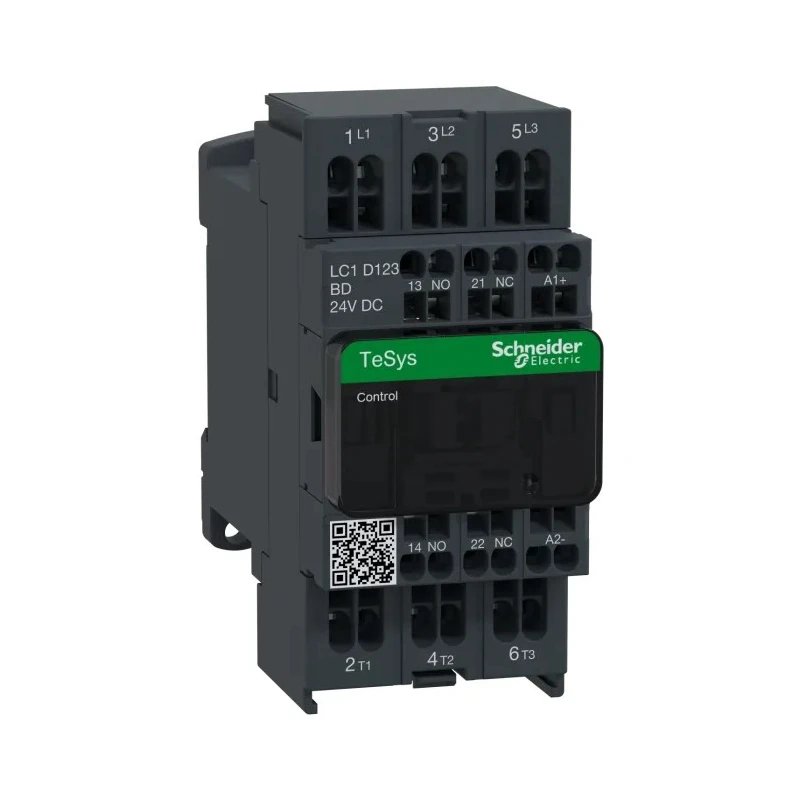

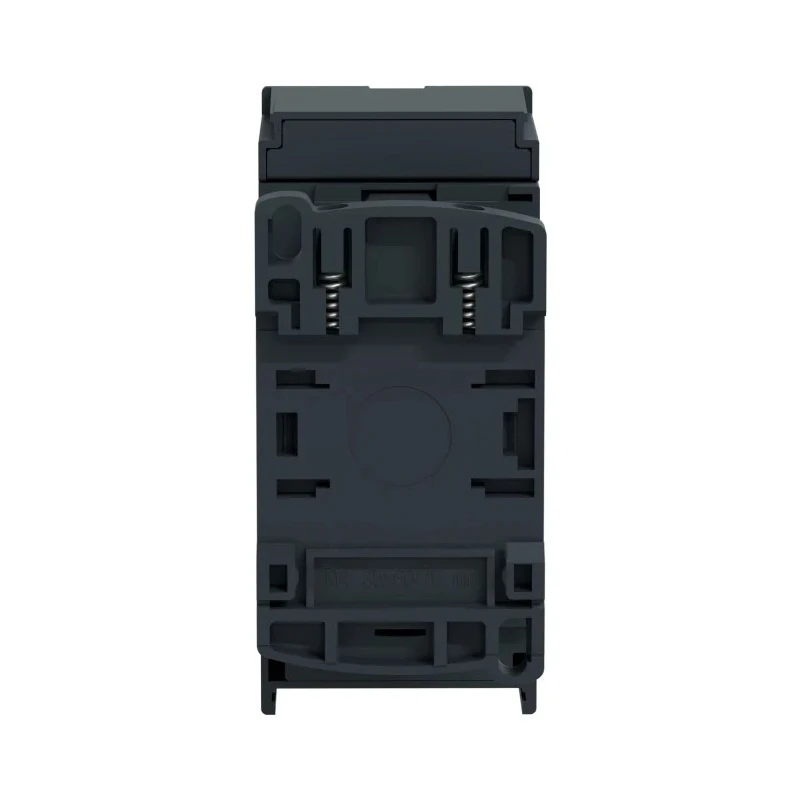

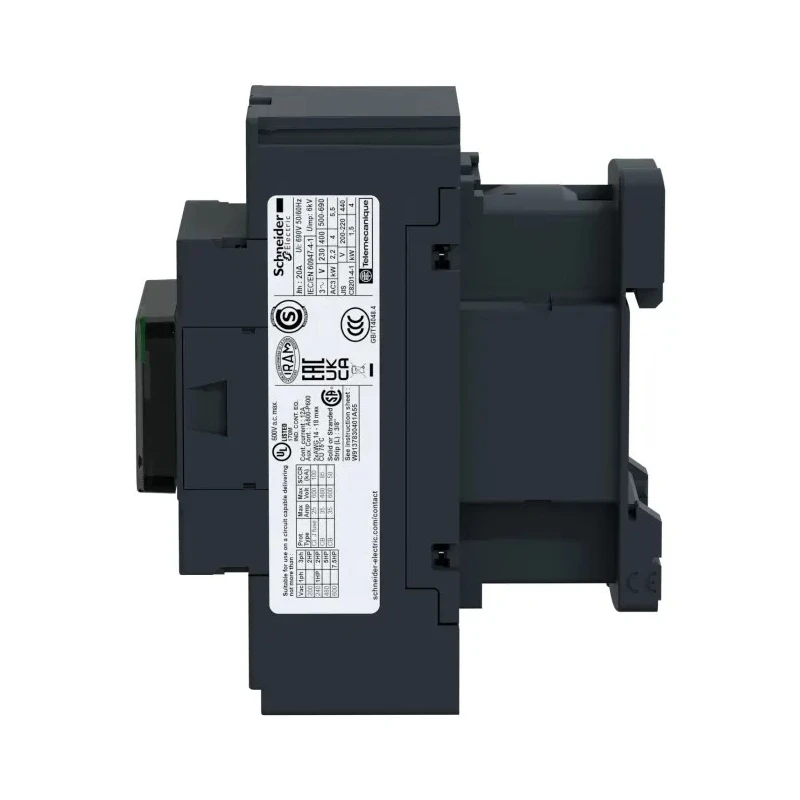

Schneider Electric TeSys D Contactor, 24V DC Coil, 3-Pole, 12A, 7.5 kW, 3 NO, 690V DC, 300V AC LC1D123BD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 45mm |
| Model | LC1D123BD |
| Depth | 99mm |
| Width | 95mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EN, IEC, UL |
| Contact Voltage | 690, 300V dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a 24V DC coil voltage for efficient control.
- Includes 3 poles with a contact configuration of 3 normally open contacts.
- Capable of handling a contact current of 12 amperes.
- Power rating of 7.5 kW suitable for various motor and resistive load controls.
- Equipped with 2 auxiliary contacts configured as 1 normally open and 1 normally closed.
- Designed to mount on DIN rails for straightforward installation.
- Constructed to operate reliably between -5°C and 60°C ambient temperatures.
- Terminal type is cage clamp for secure wiring connections.
Product Description
Schneider Electric LC1D123BD TeSys D Contactor is engineered for reliable motor control and resistive load applications. Operating with a 24V DC coil, this 3-pole contactor handles up to 12 amperes and a power rating of 7.5 kW. It features three normally open power contacts and two auxiliary contacts (1 NO and 1 NC), designed for seamless integration into automation and motor control systems.
The contactor supports DIN rail mounting, allowing for quick and secure installation within industrial control panels. Its cage clamp terminal type ensures firm and efficient electrical connections. The device is built to operate within a temperature range from -5°C to 60°C, making it suitable for varied industrial environments.
This Schneider Electric contactor complies with EN, IEC, and UL standards, confirming its adherence to rigorous global quality and safety benchmarks. Measuring 99mm in depth, 95mm in width, and 45mm in length, it offers a compact footprint that fits modern industrial setups.
Applications include motor control, resistive loads, lifts, conveyors, compressors, pumps, mixers, and air conditioning units, providing dependable switching solutions in commercial and industrial environments. Its performances in AC-3, AC-4, and AC-13 utilization categories ensure versatile operations.
Designed with sustainability in mind, the Better World claim highlights the product’s design for disassembly, promoting environmental responsibility. Schneider Electric TeSys D contactors deliver long mechanical and electrical life, aiding in reducing downtime and maintenance costs.
Features a 24V DC coil voltage for efficient control. Includes 3 poles with a contact configuration of 3 normally open contacts. Capable of handling a contact current of 12 amperes. Power rating of 7.5 kW suitable for various motor and resistive load controls.
Equipped with 2 auxiliary contacts configured as 1 normally open and 1 normally closed. Designed to mount on DIN rails for straightforward installation. Constructed to operate reliably between -5°C and 60°C ambient temperatures.
Terminal type is cage clamp for secure wiring connections. Complies with EN, IEC, and UL standards ensuring international safety and quality compliance. Dimensions are 99mm depth, 95mm width, and 45mm length for compact installations.
Shop Schneider Electric Contactors at EnvMart for dependable motor control and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 24V DC, allowing for efficient control in various applications.
The Schneider Electric TeSys D contactor has a power rating of 7.5 kW, making it suitable for motor and resistive load controls.
It features a 3-pole configuration, with three normally open contacts for effective switching.
This unit is capable of handling a maximum contact current of 12 amperes.
The dimensions of this contactor are 99mm in depth, 95mm in width, and 45mm in length, providing a compact footprint for installations.
It is equipped with cage clamp terminals, which ensure secure wiring connections.
This contactor operates reliably between -5°C and 60°C, making it suitable for various industrial environments.
It is designed for DIN rail mounting, allowing for straightforward installation in control panels.
The contactor includes two auxiliary contacts configured as one normally open and one normally closed.
It complies with EN, IEC, and UL standards, ensuring adherence to international safety and quality benchmarks.
This model is suitable for applications including motor control, lifts, conveyors, compressors, pumps, mixers, and air conditioning units.
The contactor is designed for disassembly, promoting environmental responsibility and sustainability in its lifecycle.
