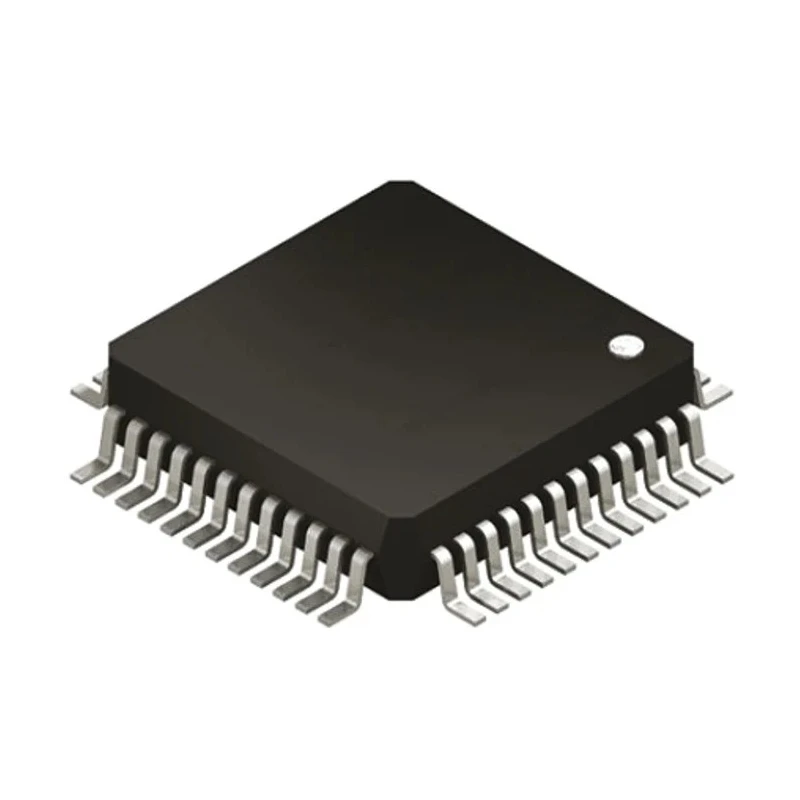

STMicroelectronics Microcontroller STM32F3 Series 32 bit ARM Cortex M4 Core 72 MHz 256kB FLASH 48-Pin LQFP STM32F302CCT6

STMicroelectronics STM32F302CCT6 microcontroller is part of the STM32F3 series featuring a high-performance 32-bit ARM Cortex M4 core running at a 72 MHz clock speed. It integrates advanced mixed signal capabilities with digital signal processing (DSP) and a floating point unit (FPU), providing efficient computation for complex embedded applications. This microcontroller is built with 256kB of FLASH memory for program storage and includes 40kB of RAM with a specialized CCM (Core Coupled Memory) architecture, enhancing data throughput and processor efficiency.

The STM32F302CCT6 offers extensive analog peripherals such as a 12-bit DAC and eight 16/32-bit ADCs, providing versatile analog input/output options. Its integrated motor control timers operate at up to 144 MHz, with timing resolution better than 7 ns, enabling precise control of industrial motors and robotics. Communication interfaces include USB Full-Speed (USB FS) and CAN 2.0B, suitable for industrial networking and data exchange.

Designed for surface mount applications, this microcontroller comes in a 48-pin Low-profile Quad Flat Package (LQFP), measuring 7.2 mm in width and length with a 1.45 mm height, suitable for compact embedded system designs. It supports a wide operating voltage range from 2 V up to 3.6 V and can function reliably in harsh environments with operating temperatures from -40°C to 85°C. The device incorporates four analogue comparators and programmable gain amplifiers with four gain ranges, supporting applications requiring precise signal conditioning.

The STM32F302CCT6 series is ideal for industrial, automotive, consumer electronics, and motor control applications, offering a robust balance of computational power, analog integration, and flexible interfacing. Its adherence to RISC architecture ensures efficient instruction execution and low power consumption. This microcontroller is supplied in new condition and manufactured to meet high quality standards for embedded system deployments.

Built with a 32-bit ARM Cortex M4 core providing 72 MHz operation frequency. Includes 256kB of FLASH program memory and 40kB RAM for data storage. Equipped with multiple integrated analog peripherals including 1 x 12-bit DAC and 8 x 16/32 bit ADCs.

Offers 11 timers and advanced motor control timers operating at up to 144 MHz timing frequency. Operating voltage ranges from 2 V minimum to 3.6 V maximum for flexible power management. Features a 48-pin LQFP surface mount package for compact circuit designs.

Offers communication interfaces including USB FS and CAN 2.0B for versatile connectivity. Specialized memory architecture supports CCM (Core Coupled Memory) for RAM. Designed for operating temperatures from -40°C up to 85°C ensuring reliable industrial performance.

Includes 4 analogue comparators and programmable gain amplifiers with 4 gain ranges. Explore more Microcontroller solutions and similar products on EnvMart to find the right embedded component for your industrial or consumer electronics project.
