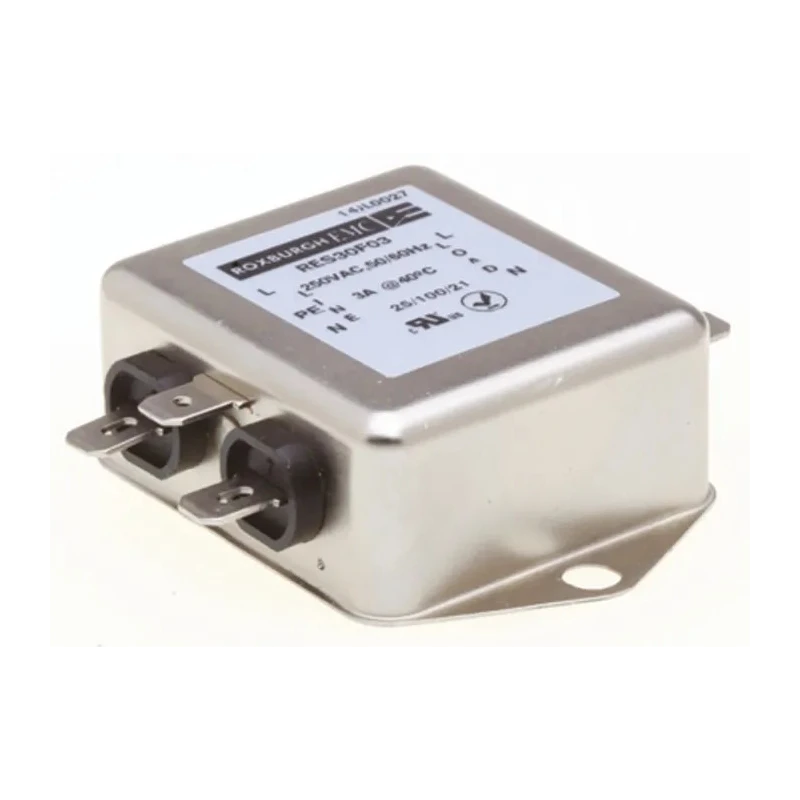

Roxburgh EMC Single Phase Chassis Mount RFI Filter 3 A 250V AC 400Hz Fast-On Termination RES30

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 3 A 250V AC 400Hz Fast-On Termination RES30

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 3 A 250V AC 400Hz Fast-On Termination RES30
Brand: Roxburgh EMC
SKU: 374535
Price: 34.84 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	22.3mm
Length	71mm
Model	RES30
Depth	46.5mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	RES30
Maximum Operating Temperature	85°C
Resistance	1mΩ
Capacitance	660nF
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	520μA
Maximum Voltage	250V ac
Inductance	14mH
Standards/Approvals	UL 1283, CSA 22.2 No. 8
Termination Style	Fast-On

Key Features

Designed for high differential mode attenuation and excellent high frequency attenuation.
Supports currents from 1 Amp to 30 Amp in the RES30 series.
Compact chassis mount design with fast-on terminations for easy installation.
Operates reliably between -25°C and 85°C temperature range.
Has a capacitance of 660nF and an inductance of 14mH for effective filtering.
Leakage current is low at 520μA, suitable for sensitive applications.
Certified under UL 1283 and CSA 22.2 No. 8 standards for safety and compliance.
Manufactured in India assuring quality and reliability.

Product Description

Roxburgh EMC RES30F03 is a high-performance single phase chassis mount RFI filter designed to provide excellent noise attenuation in electrical and electronic equipment operating at 250V AC and 400Hz frequency. This filter is suitable for general purpose filtering applications such as consumer goods, household equipment, machinery, building automation, office automation, and electronic data or communication processing equipment.

The RES30 series filters offer high differential mode attenuation and are constructed to support currents ranging from 1 Amp to 30 Amp, with this specific model rated for 3 A maximum current. Fast-on termination style and chassis mount type make the filtering device quick and easy to install in various industrial and commercial setups.

Operating in a temperature range from -25°C to 85°C, this filter features a capacitance of 660nF and an inductance of 14mH, effectively reducing electromagnetic interference. The low leakage current of 520μA also makes it suitable for medical and precision equipment requiring minimal signal disturbances. The compact dimensions of 71mm length, 46.5mm depth, and 22.3mm height further complement efficient installations in confined spaces.

High differential and high frequency noise attenuation for single phase systems. Compact chassis mount design with easy fast-on connectors. Robust electrical specifications ensuring strong performance and reliability. Certified under UL 1283 and CSA 22.2 No. 8 standards.

Versatile applications across electrical, HVAC, industrial, and communication equipment. Manufactured in India, adhering to domestic quality standards.

This Roxburgh EMC chassis mount RFI Filter is an essential component for reducing electromagnetic interference, ensuring safety, reducing signal anomalies, and compliance with industrial standards. EnvMart offers this product to meet industrial, electronics manufacturing, and maintenance needs with reliable authenticity and technical support.

Explore more from our Electronics Components and Power Line Filters category to find complementary filters and advanced EMC solutions suitable for diverse industrial applications.
