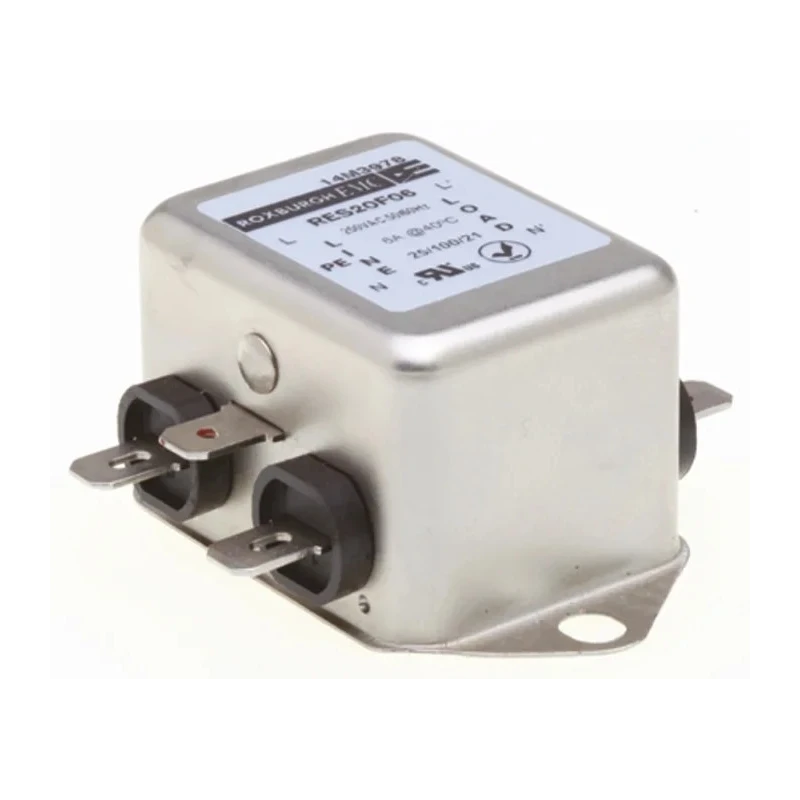

Roxburgh EMC Chassis Mount RFI Filter 6A 250V AC 400Hz Fast-On Termination Single Phase RES20

Roxburgh EMC RES20 single phase chassis mount RFI filter is engineered to provide superior attenuation of conducted radio frequency interference, enhancing the electromagnetic compatibility of electrical and electronic equipment.

This filter is rated for a maximum current of 6 A and nominal voltage of 250 V AC, operating effectively up to a frequency of 400 Hz. Its robust construction features a compact chassis mount design with fast-on termination style, allowing for quick and secure installation in various control panels and electronic enclosures.

The filter incorporates a capacitance of 300 nF and inductance of 1 mH, optimized for high differential mode attenuation. It maintains reliable operation across a broad temperature range from -25°C to 100°C, suitable for industrial applications exposed to varying environmental conditions.

Its minimal resistance value of 1 mΩ and leakage current limited to 740 µA contribute to efficient power handling and reduced losses. The product complies with safety standards CSA 22.2 No. 8 and UL 1283, ensuring adherence to recognized performance and safety criteria.

Compact dimensions of 64 mm length, 35 mm depth, and 29.3 mm height allow for space-saving integration into equipment used in electrical systems, consumer goods, machinery, and office automation.

Provides excellent attenuation of conducted radio frequency interference (RFI). Rated for maximum current of 6 A and maximum voltage of 250 V AC. Compact chassis mount design with fast-on termination style for easy installation.

Operates efficiently up to 400 Hz frequency with 300 nF capacitance and 1 mH inductance. Operates in temperature range from -25°C to 100°C ensuring reliability in diverse environments. Leverages low resistance of 1 mΩ and leakage current of 740 µA for optimal performance.

Meets CSA 22.2 No. 8 and UL 1283 standards for safety and compliance. Dimensioned at 64 mm length, 35 mm depth, and 29.3 mm height for compact footprint.

This RFI Filter is ideal for industrial, electrical, communication, office automation, and machinery applications requiring effective electromagnetic interference suppression. Its chassis mount and fast-on termination design simplify installation and maintenance.
