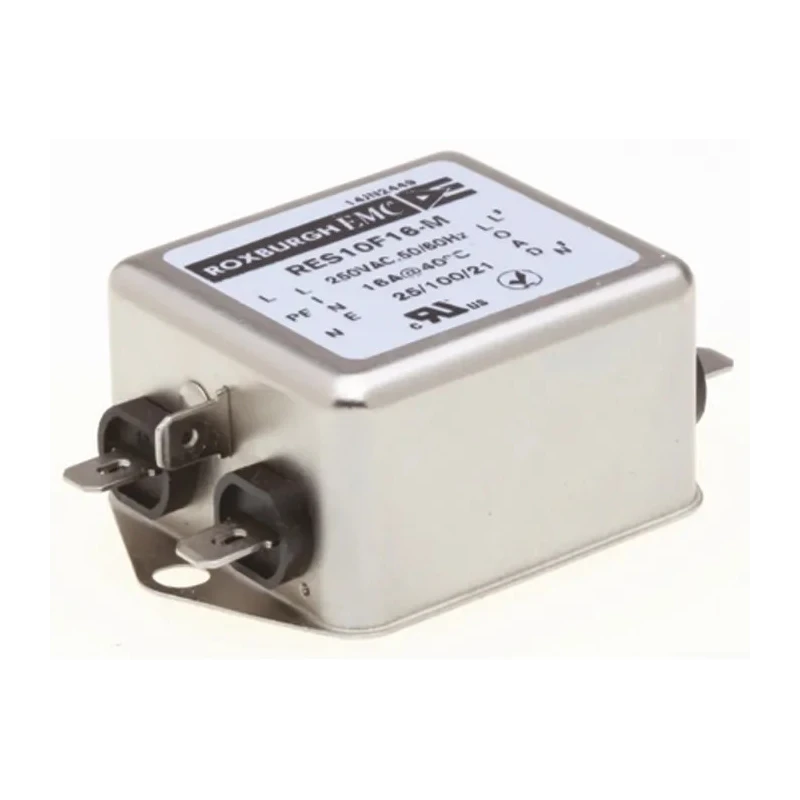

Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On RES10

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On RES10

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On RES10
Brand: Roxburgh EMC
SKU: 374536
Price: 41.66 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	29mm
Length	71mm
Model	RES10
Depth	47mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	RES10
Maximum Operating Temperature	85°C
Resistance	1mΩ
Capacitance	100nF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	2μA
Maximum Voltage	250V ac
Inductance	700μH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

Compact chassis mount design allows easy installation with fast-on termination.
Operates efficiently in frequencies up to 400Hz for various industrial and electronic equipment.
Features 100nF capacitance and 700μH inductance for optimal filtering performance.
Supports maximum current of 16A and voltage up to 250V AC for robust power line filtering.
Suitable for electrical, consumer, building automation, and data communication devices.
Low leakage current of 2μA makes it suitable for sensitive medical applications.
Wide operating temperature range from -25°C to 85°C ensures reliable use in diverse environments.

Product Description

Roxburgh EMC RES10F16-M is a high-performance single phase chassis mount RFI filter with a maximum current rating of 16A and voltage rating of 250V AC, operating at frequencies up to 400Hz. Designed for effective attenuation of conducted radio frequency interference (RFI), this filter is ideal for general purpose filtering applications in electrical, electronic, consumer, household, building automation, machinery, and data communication equipment.

The compact chassis mount design features fast-on termination for quick and secure installation. The filter incorporates 100nF capacitance and 700μH inductance, delivering excellent suppression of unwanted noise and ensuring improved equipment reliability and electromagnetic compatibility in industrial and commercial environments.

With a low leakage current of just 2μA, this filter is suitable for sensitive medical equipment applications. It operates effectively within a wide temperature range from -25°C to 85°C, making it adaptable to diverse operating conditions.

The dimensions of the filter are 71mm length, 47mm depth, and 29mm height, offering a compact form factor convenient for installation in constrained spaces. Compact chassis mount design with fast-on termination. Supports maximum current of 16A and voltage up to 250V AC.

Operates up to 400Hz frequency for versatile applications. 100nF capacitance and 700μH inductance for superior filtering. Low leakage current of 2μA for medical and sensitive uses. Wide temperature range from -25°C to 85°C for reliability.

Compact dimensions facilitating easy integration.

This Roxburgh EMC filter meets CSA 22.2 No. 8 and UL 1283 standards, ensuring compliance with safety and performance requirements. Manufactured in India under the RES10 series, it is a trusted filter solution for electronics and power line noise suppression.
