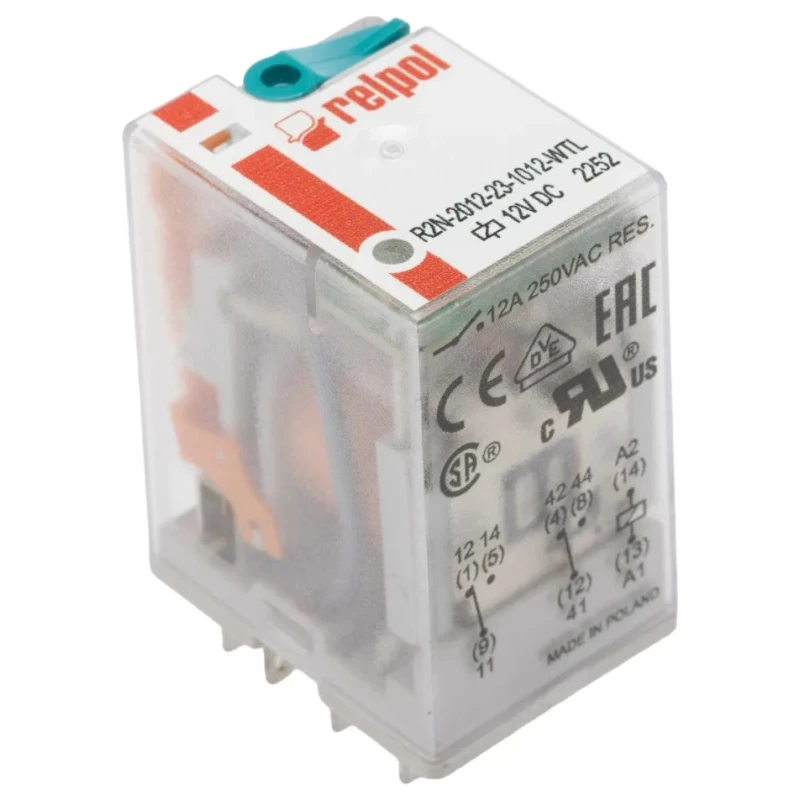

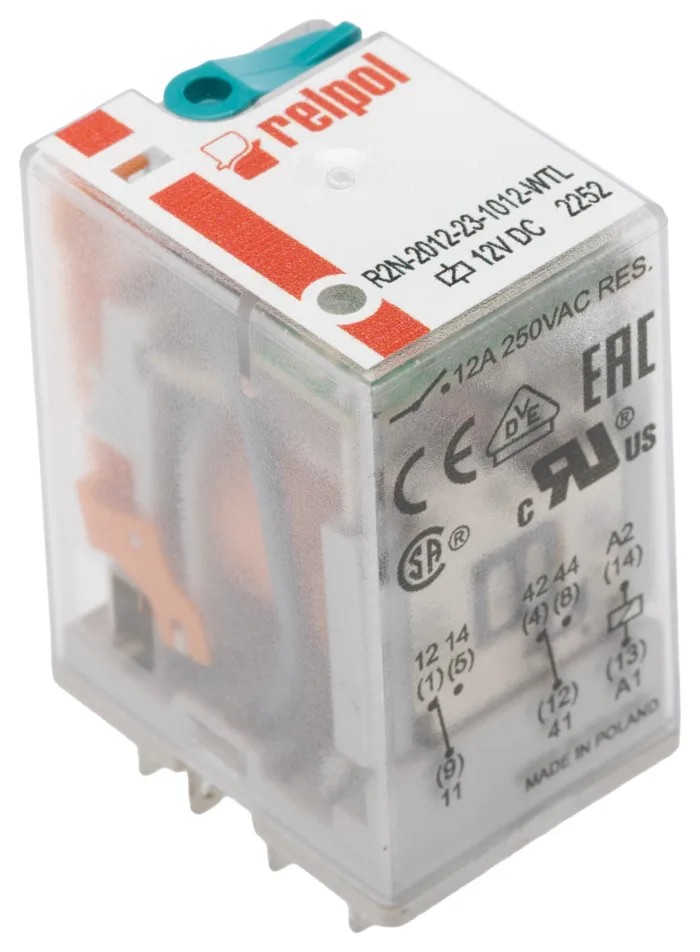

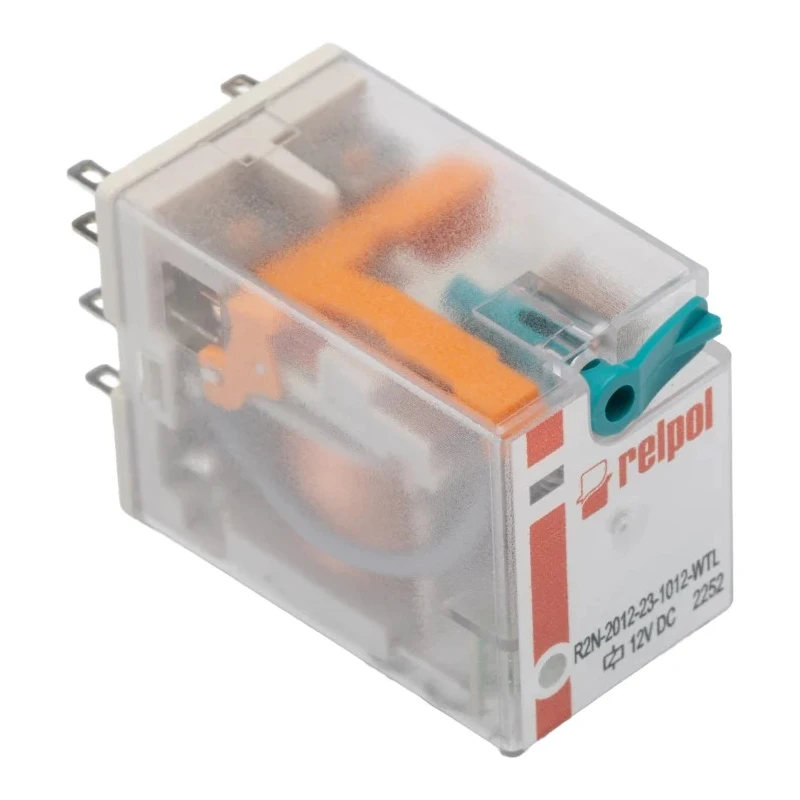

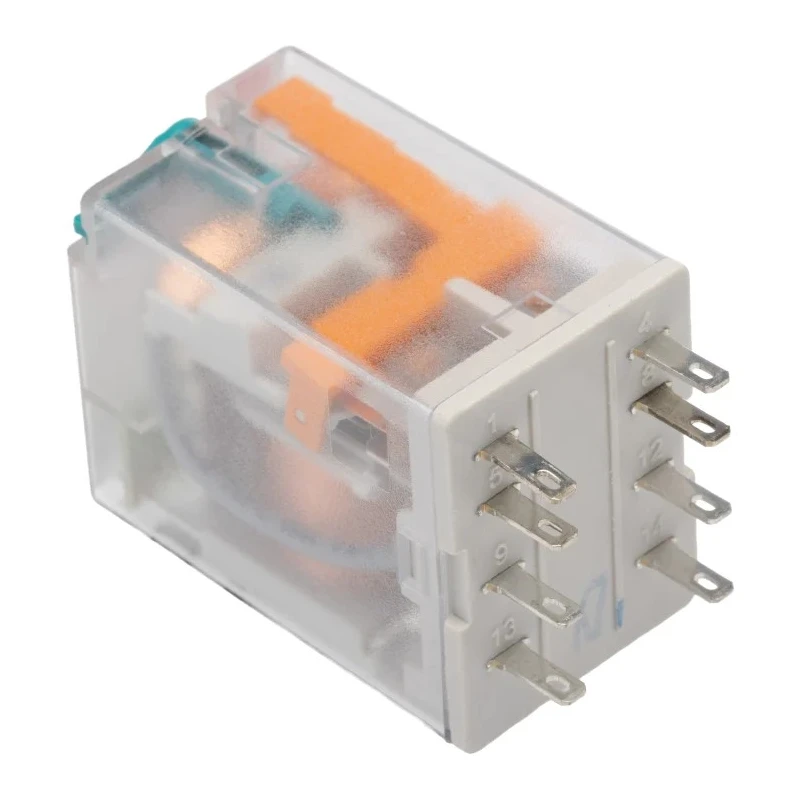

Relpol Surface Power Relay 12V Coil 12A Switching Current DPDT R2N-2012-23-1012-WTL

Relpol R2N-2012-23-1012-WTL Surface Power Relay is engineered for reliable industrial and automation applications requiring dual-pole double-throw (DPDT) switching with a 12V coil voltage and 12A switching current capacity. It features a plug-in terminal design suitable for surface mounting, incorporating mechanical indicators and a lockable front test button to facilitate operational testing and status monitoring.

The relay supports switching at voltages up to 440V AC and 24V DC, delivering 1.5W switching power, making it apt for power relay duties in control systems, electrical automation, and industrial machinery. Its compact miniature dimensions (35.6mm height, 27.5mm length, 21.2mm width) allow flexible mounting in space-constrained environments.

Constructed with silver alloy contacts and cadmium-free materials, it ensures longevity and environmental compliance per RoHS directives. The coil features a 160Ω resistance with a low coil power consumption of 900mW, supporting efficient electrical operation. The operating temperature range from -40°C to +70°C makes it suitable for use in harsh environmental conditions including industrial and laboratory settings.

The R2N series from Relpol includes miniature industrial relays designed for general-purpose applications with plug-in socket compatibility. These relays come standard with mechanical indicators and test buttons to boost ease of maintenance and monitoring. The product holds certifications including CSA, UL, and UR to meet stringent safety requirements.

This surface power relay is ideal for use in electrical automation, industrial controls, manufacturing equipment, HVAC systems, and other commercial applications requiring robust, reliable switching devices.

This relay supports both AC and DC switching voltages up to 440V AC and 24V DC respectively. It includes a plug-in terminal type for easy installation in industrial applications. The relay is constructed with silver alloy contacts for reliable and efficient conduction.

Operating temperature ranges from -40°C minimum to +70°C maximum, suitable for diverse environments. Designed with WT features including a mechanical indicator and lockable front test button for operational convenience. Compact miniature dimensions: 35.6mm height, 27.5mm length, and 21.2mm width enhance installation flexibility.

Coil resistance is 160Ω and coil power is low at 900mW to optimize energy consumption. Standards and approvals include CSA, UL, and UR ensuring compliance with industrial safety norms. Manufactured in Poland, this relay meets RoHS environmental compliance standards.
