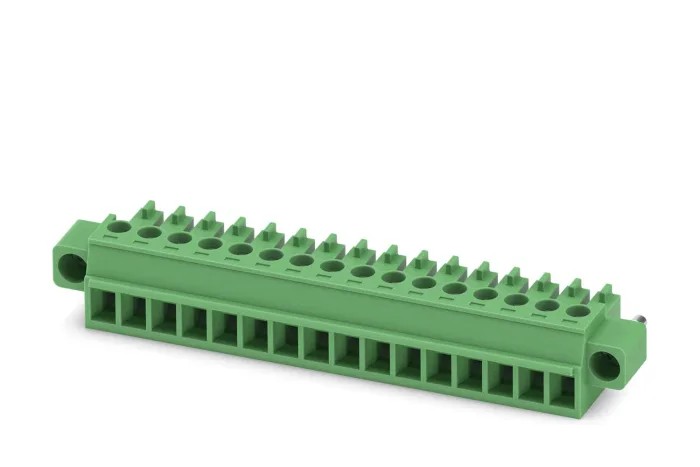

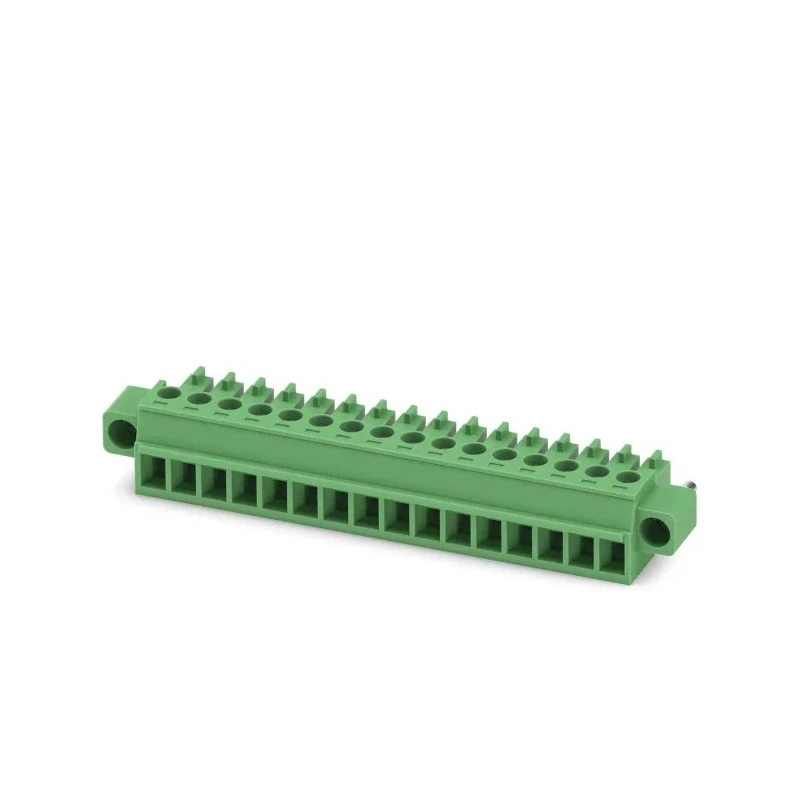

Phoenix Contact Pluggable Terminal Block, 16-Contact, 3.81 mm Pitch, 1 Row, 320V, 8A Current MC 1.5/16-STF-3.81 1827842

Phoenix Contact 1827842 pluggable terminal block is a high-quality component designed for secure and reliable printed circuit board connections. It features 16 contacts spaced with a 3.81 mm pitch in a single-row layout, suitable for compact PCB designs. Rated for 8A current and 320V voltage, it is ideal for various electronic and electrical applications.

The terminal block housing is constructed from polyamide material, providing robustness and durability even under demanding industrial conditions. It supports wire sizes ranging from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG) using screw connections equipped with tension sleeves to prevent loosening under vibration.

This pluggable terminal block’s design facilitates quick and easy installation and maintenance by allowing connectors to be plugged or unplugged without unscrewing the wires. Its compact size of 71.35 mm length, 16.1 mm width, and 11.1 mm depth ensures minimal PCB space usage, making it ideal for dense electronic assemblies.

Operating reliably in temperature extremes from -40°C to +100°C, the block withstands challenging environmental conditions. It also possesses a rated surge voltage of 2.5 kV to handle sudden electrical spikes and an IP20 ingress protection classification protecting against solid objects over 12 mm in size.

This terminal block supports a current rating of 8A and voltage up to 320V. It features a single row configuration with screw connection and tension sleeve for secure wiring. The housing is made of durable polyamide material for long-term use.

The product accepts wires from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG). Compact dimensions of 71.35 mm length, 16.1 mm width, and 11.1 mm depth save PCB space. The green coloration aids easy identification and installation.

Pluggable design allows quick connection and disconnection without wire unscrewing. Operating temperature range from -40°C to +100°C suits demanding applications. Rated surge voltage of 2.5 kV provides protection against voltage spikes.

IP20 ingress protection ensures safety from objects larger than 12 mm.

This Pluggable Terminal Block is widely used in industrial automation, HVAC systems, manufacturing equipment, and laboratory instrumentation where reliable and compact electrical connections to PCBs are essential.
