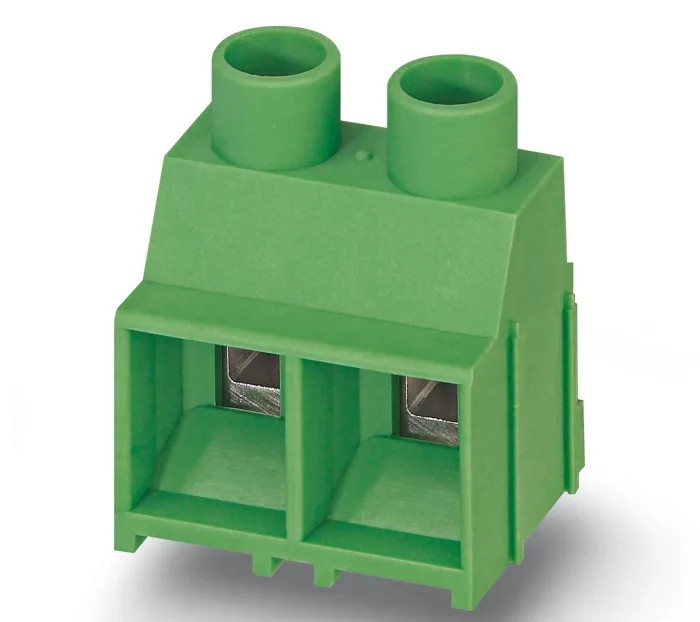

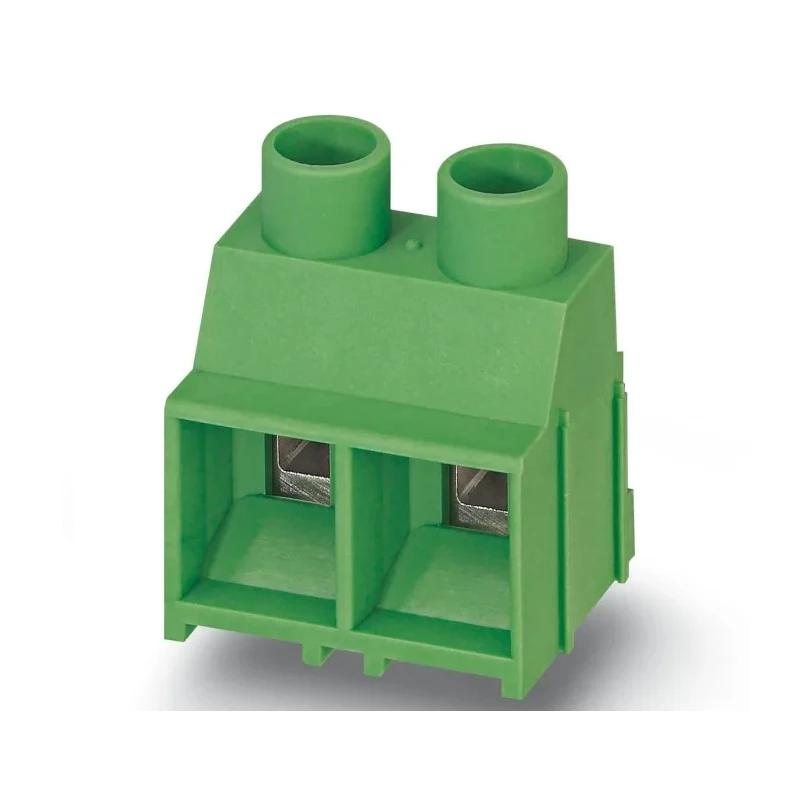

Phoenix Contact MKDS 5 HV/2-9.52-Z Series Straight PCB Terminal Block 2 Contact 9.52 mm Pitch 1kV 32A 1 Row 1907432

Phoenix Contact 1907432 MKDS 5 HV/2-9.52-Z Series Straight PCB Terminal Block is designed for high voltage applications, providing reliable and safe electrical connections with a voltage rating of 1kV and current rating of 32A. Its polyamide housing ensures mechanical strength and temperature resilience, making it suitable for industrial and electronic component uses.

This PCB terminal block features a standard 9.52 mm pitch and two contacts arranged in a single straight row for streamlined PCB integration. It supports conductors ranging from 0.2 to 6 mm² for solid and 0.2 to 4 mm² for stranded wires using screw connections, ensuring versatile wiring options.

Its design includes increased air and creepage distances with Z pinning, enabling unrestricted 600 V UL approval for enhanced safety standards. The terminal block is ideal for use in power connectors, electronics assemblies, and industrial automation systems where durable and reliable PCB electrical interfacing is essential.

Installation and maintenance are facilitated by its straight orientation and robust construction. This component is part of the well-known COMBICON MKDS 5 series high voltage connectors by Phoenix Contact, known for quality and reliability.

High voltage rating of 1kV ensures reliable insulation and safety. Rated current capacity of 32A supports demanding electrical loads. Constructed with polyamide housing for durability and heat resistance. Designed with a straight orientation and single row for efficient PCB layout.

9.52mm pitch accommodates standard COMBICON MKDS 5 series connection requirements. Supports solid conductor sizes from 0.2 to 6 mm² and stranded conductors from 0.2 to 4 mm². Increased air and creepage distances support unrestricted 600V UL approval with Z pinning.

Ideal for industrial, power connector, and electronic components applications. Facilitates screw connection terminal blocking for secure wiring.

Suitable for use across a variety of industrial, electrical, and electronic manufacturing and assembly environments. Explore more high quality PCB Terminal Blocks and connectors at EnvMart for your professional projects.
