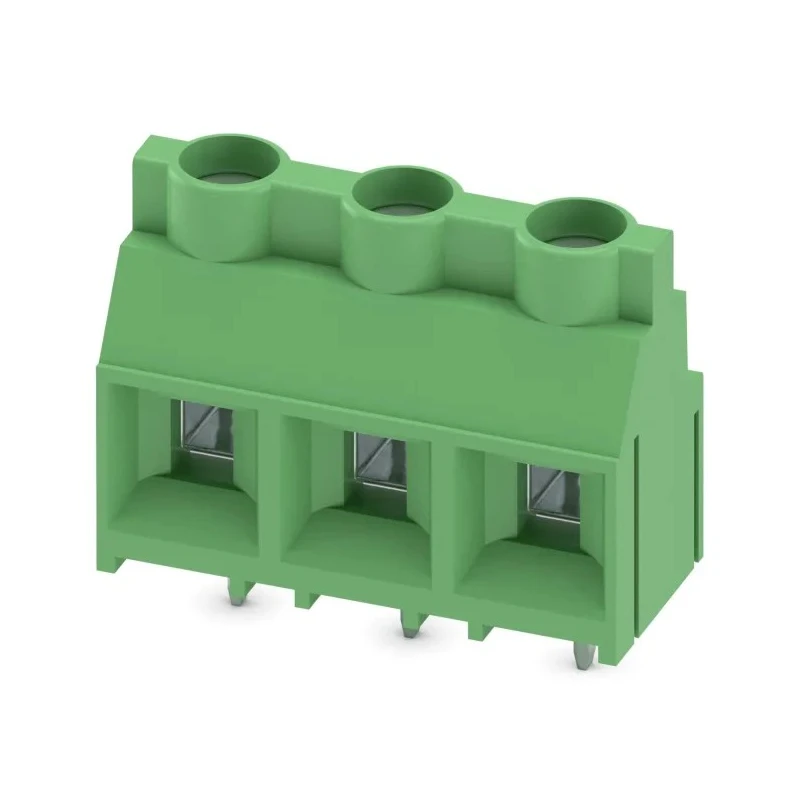

Phoenix Contact MKDS 5/3-9.5 Series Straight PCB Terminal Block, 3 Contacts, 9.52 mm Pitch, 1 Row 1714984
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 32A |
| Model | 1714984 |
| Housing Material | Polyamide |
| Series | MKDS 5/3-9.5 |
| Number of Rows | 1 |
| Pitch | 9.52mm |
| Number of Contacts | 3 |
Key Features
- Features a polyamide housing ensuring thermal resistance and durability.
- Supports current ratings up to 32A for heavy-duty electrical applications.
- Copper alloy contacts provide excellent electrical conductivity and corrosion resistance due to tin plating.
- Compatible with wire sizes from 24 to 10 AWG offering versatile connection options.
- Compact dimensions of 28.56 x 12.5 x 21.5 mm fit tightly into small PCB spaces.
- Designed with a straight orientation for easy front-facing board mounting.
- Wide operating temperature range from -40°C to +105°C for demanding environments.
- UL94 V-0 flammability rating ensures self-extinguishing capability for enhanced safety.
Product Description
Phoenix Contact 1714984 PCB Terminal Block is a high-performance straight PCB terminal block featuring a polyamide housing and 3 contacts arranged in a single row with a 9.52 mm pitch. Rated for 32A current and 1kV voltage, this terminal block is engineered for reliable connection in electrical and electronic equipment.
The copper alloy contacts are tin-plated, giving superior electrical conductivity and corrosion resistance, essential for stable current transmission in demanding industrial environments. The robust polyamide housing offers thermal resistance, making it suitable for applications subject to heat.
This terminal block supports wire sizes ranging from 24 to 10 AWG, allowing versatile cable connections across various installation needs. Its compact size (28.56 mm length, 12.5 mm width, and 21.5 mm height) optimizes PCB space usage, especially in compact electronic assemblies.
The straight orientation simplifies installation on front-facing PCBs, providing convenience and flexibility in circuit layout. It complies with UL94 V-0 flammability standards, ensuring self-extinguishing properties for enhanced operational safety in industrial and manufacturing settings.
With a wide operating temperature range of -40°C to +105°C, the terminal block maintains performance integrity in harsh environments, including industrial automation, HVAC controls, manufacturing equipment, and power supply installations.
Features a polyamide housing ensuring thermal resistance and durability. Supports current ratings up to 32A for heavy-duty electrical applications. Copper alloy contacts provide excellent electrical conductivity and corrosion resistance due to tin plating.
Compatible with wire sizes from 24 to 10 AWG offering versatile connection options. Compact dimensions of 28.56 x 12.5 x 21.5 mm fit tightly into small PCB spaces. Designed with a straight orientation for easy front-facing board mounting.
Wide operating temperature range from -40°C to +105°C for demanding environments. UL94 V-0 flammability rating ensures self-extinguishing capability for enhanced safety.
This Phoenix Contact terminal block is a reliable choice for a variety of industrial, electronic manufacturing, and power connector applications. Explore similar products and more in the PCB Terminal Block category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of up to 32A, making it suitable for heavy-duty electrical applications.
The voltage rating for this model is 1kV, ensuring it can handle high voltage applications safely.
The compact dimensions of this unit are 28.56 mm in length, 12.5 mm in width, and 21.5 mm in height, allowing it to fit into small PCB spaces.
The housing is made from polyamide, which provides thermal resistance and durability for various applications.
The contacts in this terminal block are arranged with a pitch of 9.52 mm, facilitating easy integration into PCB layouts.
This model features 3 contacts arranged in a single row, designed for efficient electrical connections.
It operates within a wide temperature range of -40°C to +105°C, making it suitable for demanding environments.
This terminal block is designed with a straight orientation, allowing for easy front-facing board mounting.
It complies with the UL94 V-0 flammability rating, ensuring it has self-extinguishing properties for enhanced safety.
The country of origin for this terminal block is Germany, indicating its manufacturing quality standards.
