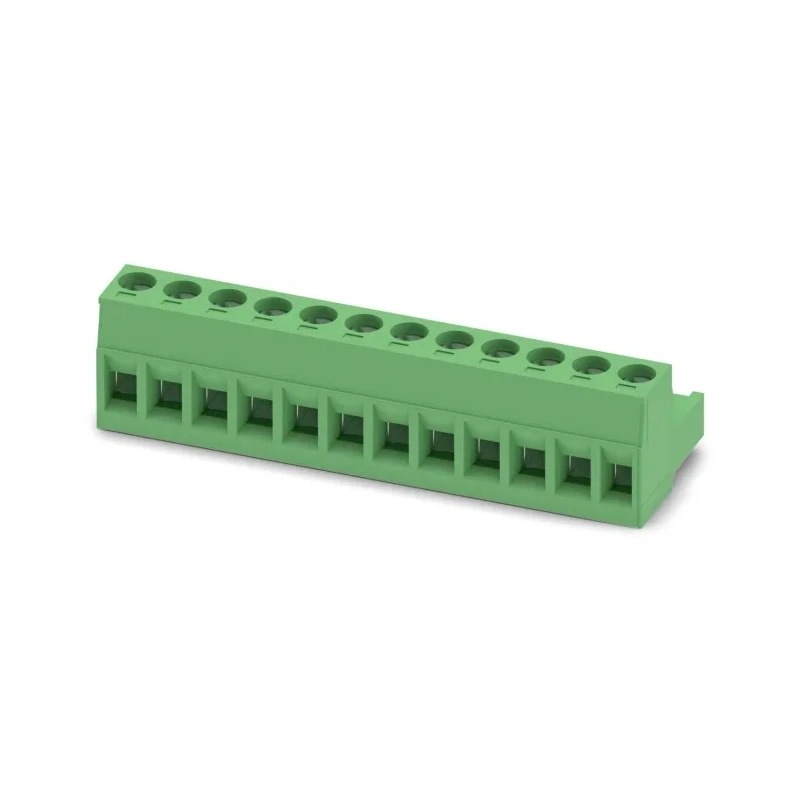

Phoenix Contact Pluggable Terminal Block 12-Contact, 5 mm Pitch, 1 Row, 12A, Polyamide Housing, Green MSTB 2.5/12-ST 1754643

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block 12-Contact, 5 mm Pitch, 1 Row, 12A, Polyamide Housing, Green MSTB 2.5/12-ST 1754643

Name: Phoenix Contact Pluggable Terminal Block 12-Contact, 5 mm Pitch, 1 Row, 12A, Polyamide Housing, Green MSTB 2.5/12-ST 1754643
Brand: PHOENIX CONTACT
SKU: 373651
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	18.2mm
Model	1754643
Depth	60mm
Width	55mm
Housing Material	Polyamide
Series	MSTB 2.5/12-ST
Number of Rows	1
Pitch	5mm
Number of Contacts	12
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

Features a durable polyamide housing that is robust and insulating.
Supports wire sizes from 0.2 mm² up to 2.5 mm² and AWG 24 to 12 for versatile wiring options.
Operates at a maximum current of 12A and voltage of 320V for reliable performance.
Employs a screw connection method with a tension sleeve for secure and stable wire retention.
Designed with a straight orientation and female connector gender for plug-in compatibility.
Compact dimensions of 18.2 mm length, 55 mm width, and 60 mm depth optimize space usage.
Green color coding aids in easy identification and wiring organization.
Incorporates a closed contour and dual steel spring for enhanced stability and temperature control.

Product Description

Phoenix Contact 1754643 is a high-quality pluggable terminal block featuring 12 contacts with a 5 mm pitch in a single-row configuration, designed for robust electrical connectivity and ease of installation.

This terminal block's housing is made of durable polyamide material that ensures mechanical strength and electrical insulation. It supports a wide range of conductor sizes, from 0.2 mm² to 2.5 mm² and AWG 24 to 12, making it suitable for various wiring requirements.

The terminal block is rated for a current of 12A and voltage up to 320V, providing reliable operation under typical industrial electrical conditions. It uses a screw connection with a tension sleeve, ensuring secure and vibration-resistant wire connections.

The design includes a straight orientation with a female connector gender, facilitating easy plug-in connections to headers or PCB terminals. Its compact dimensions (18.2 mm length, 55 mm width, and 60 mm depth) make it ideal for space-constrained applications.

The MSTB 2.5/12-ST series terminal blocks feature a closed contour design for excellent connector stability and an integrated double steel spring that minimizes temperature rise and power fluctuations, enhancing safety and durability.

Durable polyamide housing for strength and insulation. Supports wire sizes from 0.2 mm² to 2.5 mm² and AWG 24 to AWG 12. 12A current and 320V voltage rating suitable for industrial environments. Screw connection with tension sleeve for reliable wiring.

Straight orientation, female connector for versatile connectivity. Compact dimensions measuring 18.2 mm x 55 mm x 60 mm. Closed contour and double steel spring for stability and thermal safety. Designed for use in industrial, manufacturing, and electrical equipment setups.

This terminal block is manufactured in Germany, adhering to high-quality standards for electrical connectors. It is part of the Phoenix Contact COMBICON MSTB 2.5/12-ST series, well-known for its robust construction and versatile application in industrial automation and control systems.
