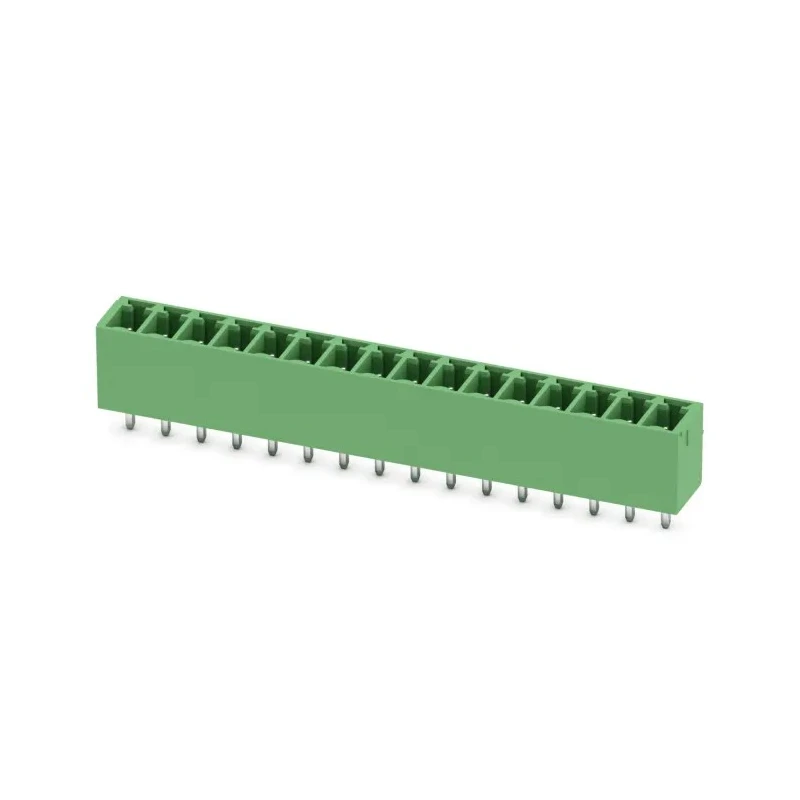

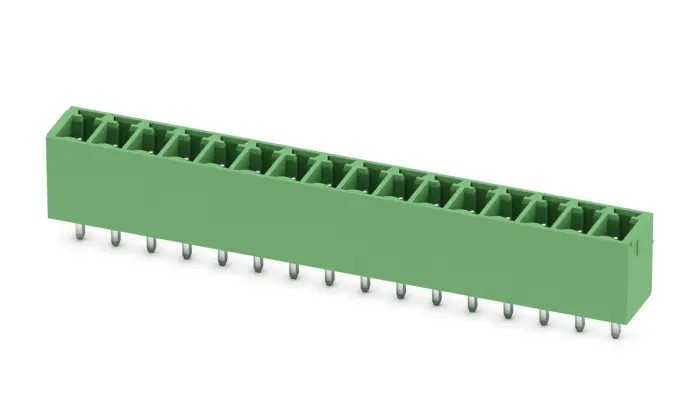

Phoenix Contact Pluggable Terminal Block, 16-Contact, 3.81 mm Pitch, 1 Row, 8A, Green Polybutylene Terephthalate 1803565

Phoenix Contact 1803565 is a high-quality pluggable terminal block designed for use in electronics and industrial applications requiring secure connections and reliable performance. This model features a 3.81 mm pitch and includes 16 contacts in a single row configuration, making it suitable for dense circuit board layouts.

The terminal block is fabricated with a green polybutylene terephthalate (PBT) housing material, known for excellent mechanical stability and heat resistance, enabling operation in harsh environments. The design supports a nominal current of 8 amperes and withstands voltages up to 160V, providing robust performance for power and signal transmission.

Its straight orientation and male connector gender facilitate ease of connection, while the solder wire connection ensures secure electrical joints. The maximum wire size supported is 1.5 mm², accommodating common wire gauges found in industrial equipment.

With compact physical dimensions - length 7.25 mm, width 62.35 mm, depth 12.6 mm - this terminal block is optimized for PCB mounting via through-hole wave soldering, ensuring firm mechanical attachment and optimal electrical connectivity.

The product complies with various international standards including EU RoHS, CSA, cULus, EU REACH SVHC, and China RoHS, reflecting high industry-quality and environmental compliance.

Widely used in industrial automation, power distribution, and electronic control where multiple reliable connections are required. Its modular pluggable design supports maintenance and replacement without soldering disruption.

Constructed with durable green polybutylene terephthalate housing for stability and resistance. Offers a nominal current capacity of 8 amperes for reliable electrical performance. Designed for straight orientation with male connector gender and solder wire connection method.

Supports maximum wire size of 1.5 mm² ideal for various wiring requirements. Compact dimensions ensure efficient space utilization in electronic assemblies. Compatible with wave soldering techniques for PCB assembly. Operates at voltage rating of 160V suitable for industrial applications.

Houses 16 contacts arranged in a single row providing flexibility in circuit design.
