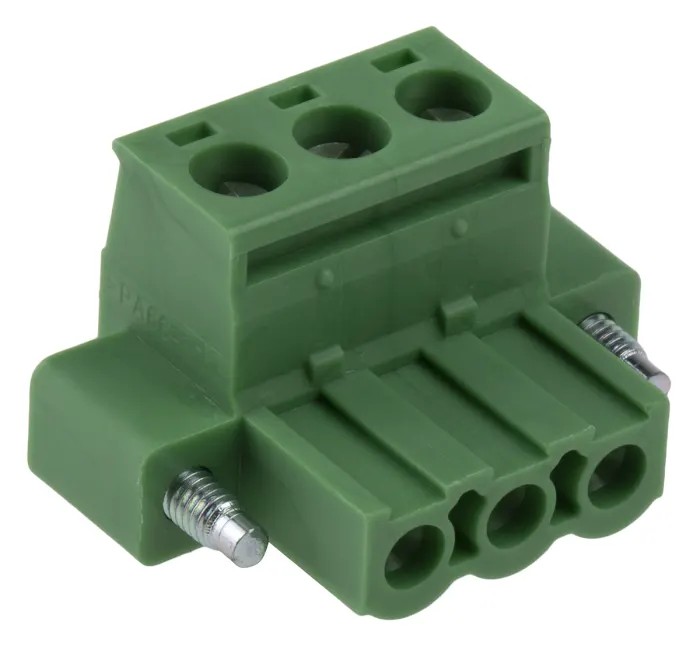

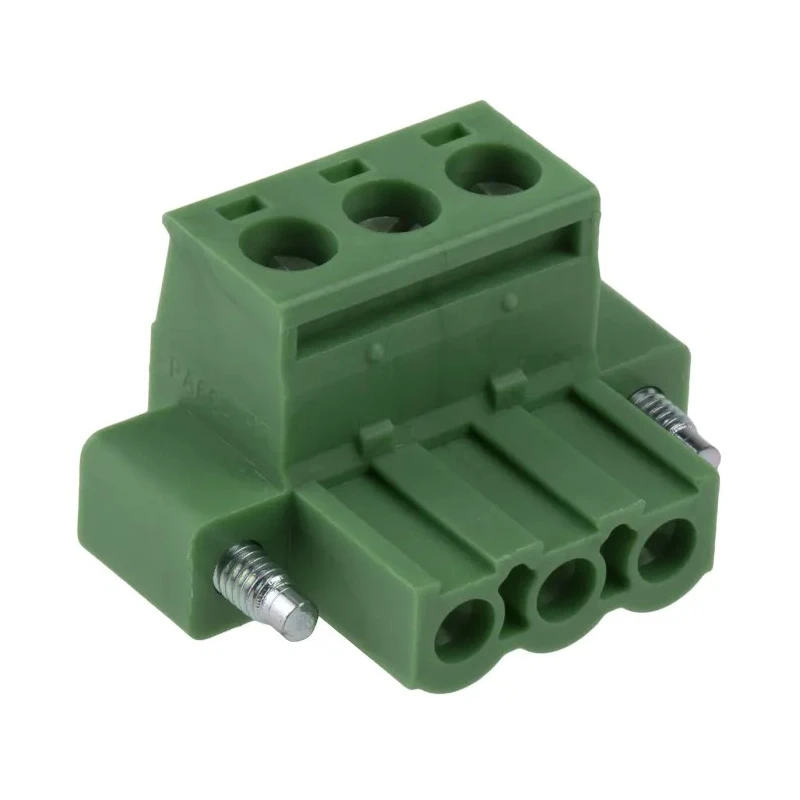

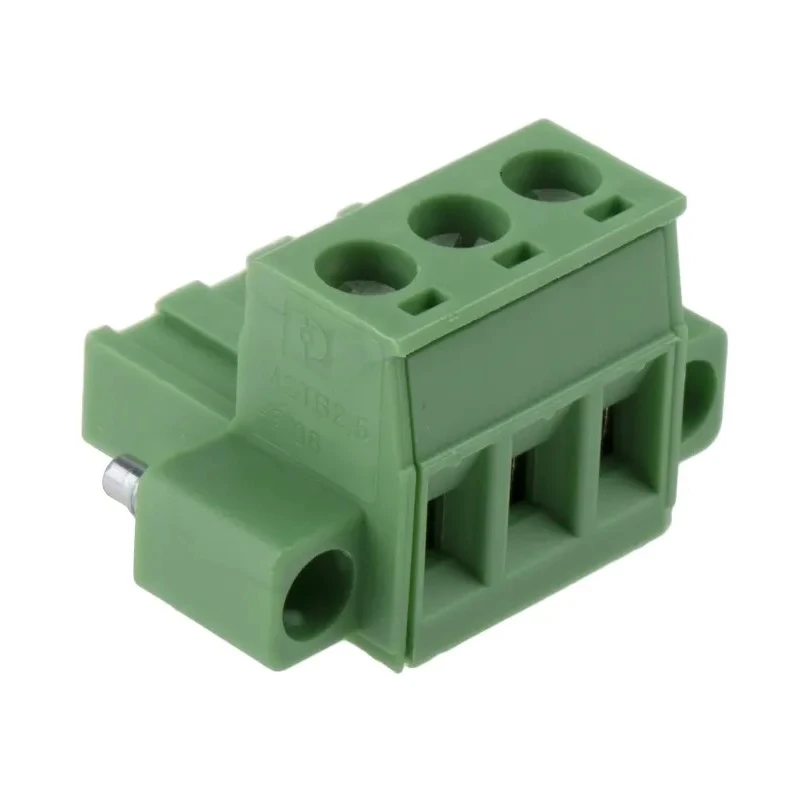

Phoenix Contact MSTB 2.5/3-STF-5.08 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row 1777992

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MSTB 2.5/3-STF-5.08 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row 1777992

Name: Phoenix Contact MSTB 2.5/3-STF-5.08 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row 1777992
Brand: PHOENIX CONTACT
SKU: 373562
Price: 3.48 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	15.85mm
Model	1777992
Depth	15mm
Width	18.2mm
Housing Material	Polyamide
Series	MSTB 2.5/3-STF-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	3
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

Supports wires ranging from 0.2 mm² to 2.5 mm² for versatile connectivity.
Constructed with polyamide housing providing effective insulation and safety.
Enables screw connection with tension sleeve for reliable and damage-free wiring.
Rated for a current of 12A and voltage up to 320V suitable for various applications.
Compact dimensions with length 15.85mm, width 18.2mm, and depth 15mm for space-saving PCB integration.
Features a straight orientation with a green color for easy identification.
Part of the MSTB 2.5/3-STF-5.08 series offering standardized modular stacking capability.
Operating temperature range ensures performance from -40°C to +100°C in harsh environments.

Product Description

Phoenix Contact 1777992 Pluggable Terminal Block is a reliable PCB terminal block designed to provide strong, secure electrical connections. Featuring three contacts with a 5.08 mm pitch and a single-row configuration, this terminal block is ideal for space-efficient wiring systems.

The device incorporates a polyamide housing known for its excellent insulating properties, protecting both users and equipment from electrical hazards. Its screw connection method paired with a tension sleeve ensures that wires are clamped securely with controlled pressure, minimizing damage and ensuring consistent contact performance.

Rated for 12A current and 320V voltage, the terminal block supports wire sizes from 0.2 mm² to 2.5 mm², accommodating both 24 AWG to 12 AWG wires. The green-colored housing and straight orientation allow for easy integration and identification within electronic assemblies.

This component is part of the MSTB 2.5/3-STF-5.08 series, known for its modular design allowing stacking and optimized space usage on PCBs. It meets industrial requirements with robust performance over a broad temperature range of -40 to +100 degrees Celsius, suitable for industrial, manufacturing, automation, and power distribution applications.

Supports wire sizes from 0.2 to 2.5 mm² safely and securely. Polyamide housing acts as an effective electrical insulator. Screw connection with tension sleeve protects contact integrity. Rated for 12A current and 320V voltage for versatile applications.

Compact physical dimensions enable efficient PCB layout. Green color enhances visual management in installations. Modular design supports stacking and custom configurations. Works reliably in harsh industrial temperature conditions.

This terminal block is suited for various industrial sectors including automation, power electronics, manufacturing, and electronic system assembly. Its reliable connection system helps maintain signal quality and power integrity in demanding environments. Explore more products in the Pluggable Terminal Block category at EnvMart for comprehensive connector solutions.
