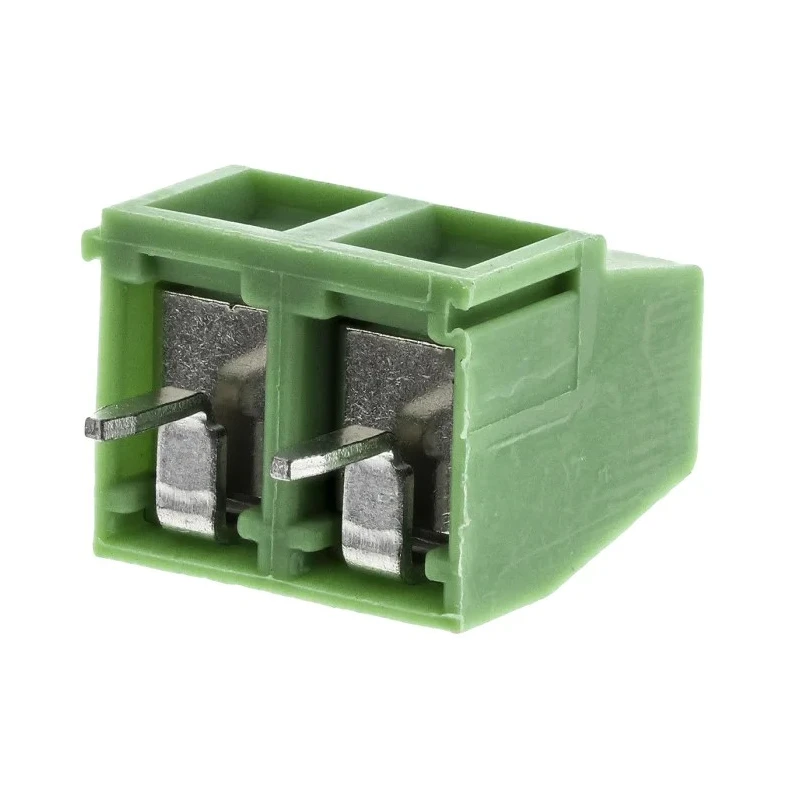

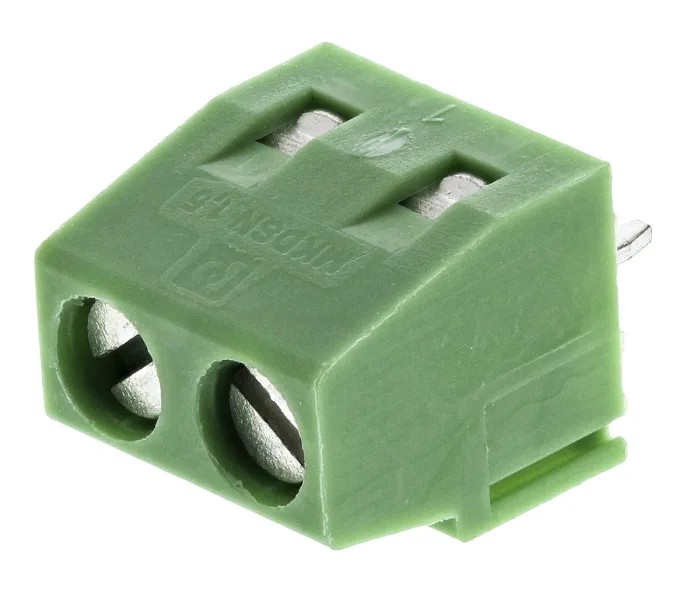

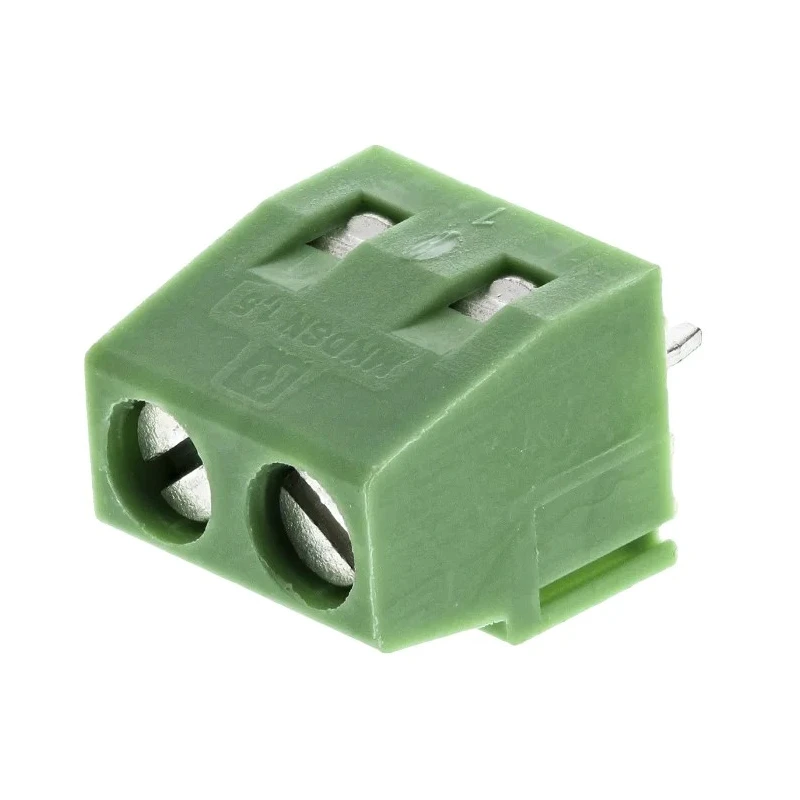

Phoenix Contact MKDSN 1.5/2 Series Straight PCB Terminal Block, 2 Contacts, 5 mm Pitch, 13.5A, 160V, Polyamide 1729018
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 13.5A |
| Model | 1729018 |
| Housing Material | Polyamide |
| Series | MKDSN 1.5/2 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 2 |
Key Features
- The terminal block comes with a straight orientation and 1 row configuration.
- Constructed with a polyamide housing providing robust insulation and protection.
- Contacts are made from a highly conductive copper alloy with corrosion-resistant tin plating.
- Compact design with 5 mm pitch saves space on PCBs.
- Rated surge voltage of 4 kV ensures protection against current overloads.
- Supports vibration resistance up to 5g for stable electrical connections in harsh environments.
- Flammability rating UL 94-V0 indicates the material will self-extinguish within 10 seconds.
- Suitable for use in industrial electronics, PCB wiring, and power distribution.
Product Description
The Phoenix Contact 1729018 MKDSN 1.5/2 Series Straight PCB Terminal Block is a high-quality, compact electrical connector designed for secure wire connection on printed circuit boards.
This terminal block features 2 contacts arranged in a single straight row with a 5 mm pitch, supporting a current rating of 13.5A at 160V AC/DC. The contacts are fabricated from a highly conductive copper alloy with a tin plating to ensure corrosion resistance and reliable performance over extended use.
The housing material is polyamide, which provides strong insulation protection and meets the UL 94-V0 flammability standard, stopping burning within 10 seconds under test conditions.
The robust design also includes screw connections with tension sleeves that lock wires firmly in place, promoting secure and vibration-resistant connections even under mechanical stress up to 5g. The surge voltage rating of 4kV offers additional protection against transient overvoltages.
Straight PCB Terminal Block with 2 contacts and 5 mm pitch. Support current up to 13.5A at 160V. Polyamide housing with UL 94-V0 flammability rating. Contact material is copper alloy with tin plating for corrosion resistance.
Screw clamping with tension sleeves for reliable wire retention. Tested to withstand vibrations of up to 5g. Rated surge voltage of 4kV for electrical safety. Compact footprint ideal for dense PCB layouts. Manufactured in Germany ensuring precision and quality.
This terminal block is ideal for applications in industrial automation, control panels, power supplies, and other electronic equipment requiring secure, reliable PCB connections. As a trusted Phoenix Contact product, it guarantees high durability and performance.
Explore more PCB connectors and terminal blocks in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 13.5A.
It is rated for a voltage of 160V AC/DC.
The pitch size is 5 mm, which allows for a compact design on PCBs.
This model features 2 contacts arranged in a single straight row.
The housing is constructed from polyamide, providing robust insulation and protection.
It has a UL 94-V0 flammability rating, meaning it will self-extinguish within 10 seconds under test conditions.
The terminal block is rated for a surge voltage of 4 kV, offering protection against transient overvoltages.
It is manufactured in Germany, ensuring quality and precision in its construction.
It features screw connections with tension sleeves for secure wire retention.
It is suitable for use in industrial automation, control panels, power supplies, and other electronic equipment requiring secure PCB connections.
The contacts are made from a highly conductive copper alloy with corrosion-resistant tin plating, promoting reliable performance over extended use.
