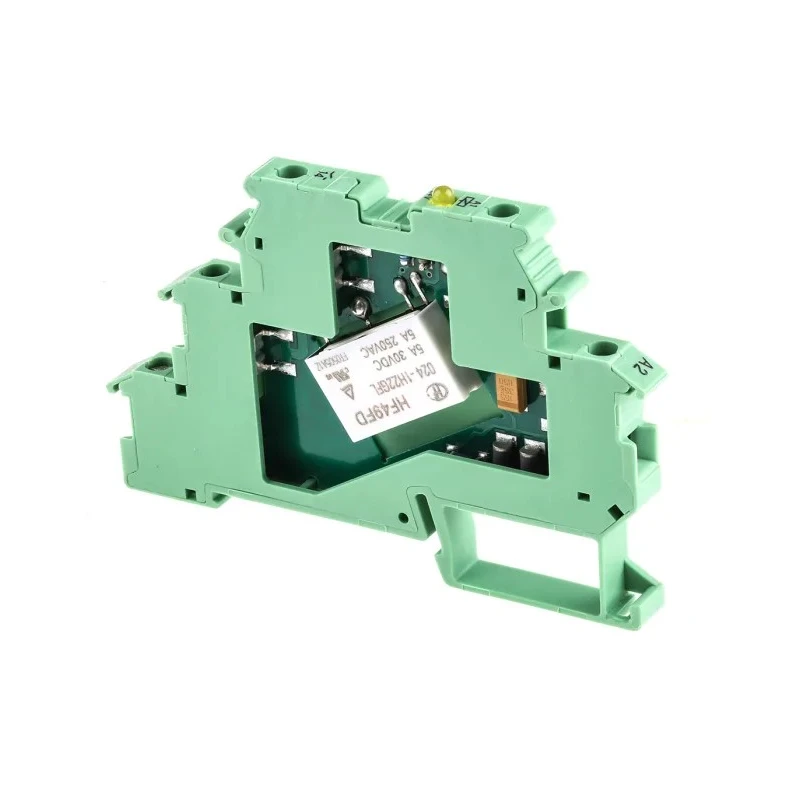

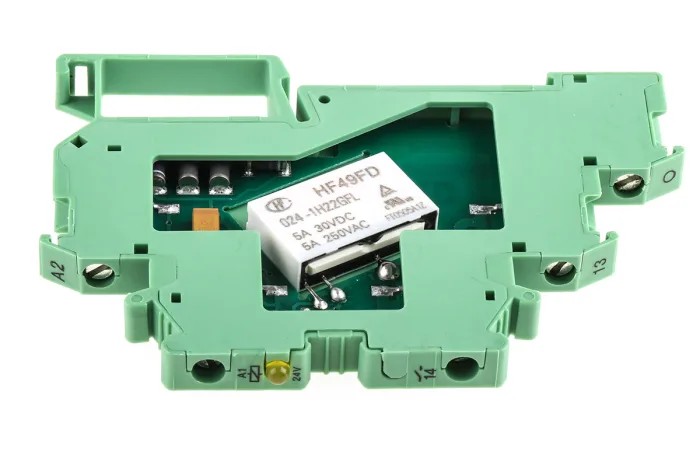

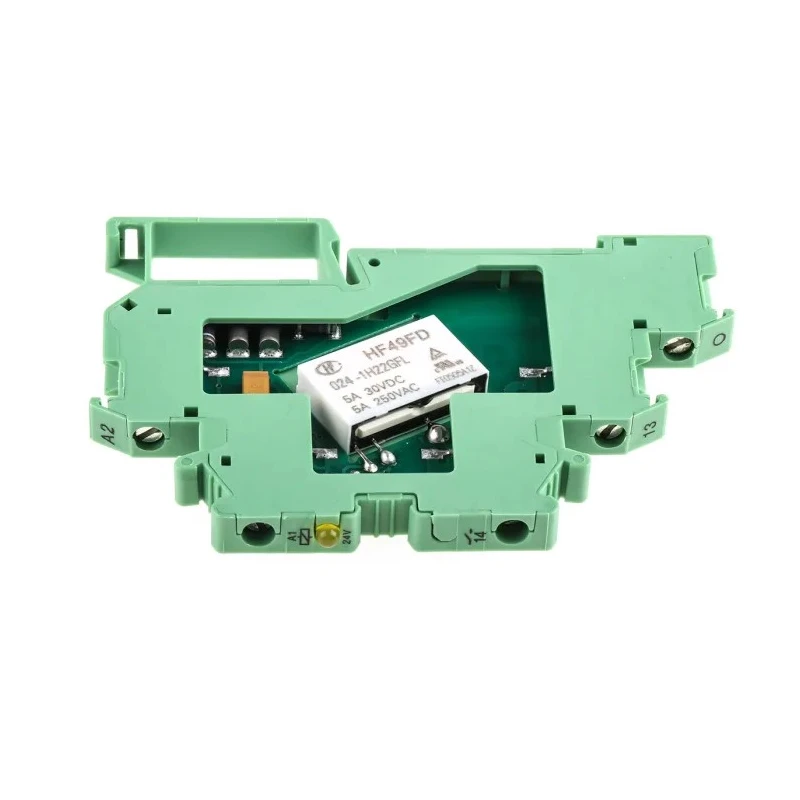

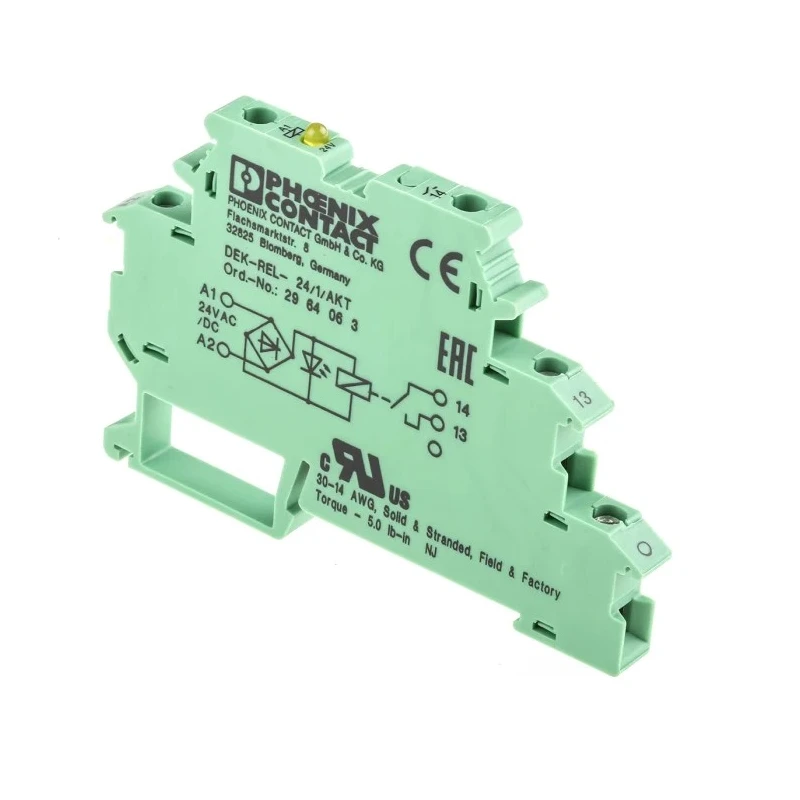

Phoenix Contact Chassis Interface Relay 24V AC/DC Coil, 5A Switching Current, SPST Contact Configuration 2964063
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 6.2mm |
| Model | 2964063 |
| Width | 56mm |
| Mount Type | Chassis |
| Contact Material | Silver Alloy |
| Series | DEK-REL- 24/1/AKT |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Standards/Approvals | UL, EAC |
| Coil Voltage | 24V ac/dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Features a 24V AC/DC coil suitable for flexible power input.
- Designed with a SPST contact configuration for single-pole single-throw switching.
- Supports switching AC voltage up to 250V and DC voltage up to 125V.
- Constructed with silver alloy contacts ensuring long electrical life.
- Compact form factor with 6.2mm width allowing 73% more space on DIN rail mounts.
- Equipped with a yellow LED indicator for coil operating voltage status.
- Provides 2 kVrms electrical isolation between input and output for enhanced safety.
- Mounts easily on standard DIN rail NS 35/7.5 chassis mount.
Product Description
Phoenix Contact 2964063 Chassis Interface Relay offers a reliable solution for signal relay tasks with a 24V AC/DC coil and a 5A switching current capacity. Designed as part of the DEK-REL series, this relay is engineered for industrial automation, control systems, and signal conditioning applications.
This interface relay features a SPST (single-pole single-throw) contact configuration, suitable for switching loads up to 250V AC or 125V DC. The contacts are made of silver alloy with hard gold plating to ensure durability and resistance to wear during continuous operation.
The relay housing is compact, measuring 6.2mm in width and 80mm in height, optimized for mounting on DIN rail NS 35/7.5 with chassis mount type. This compactness provides up to 73% more space on standard DIN rails compared to conventional terminal blocks.
Electrical isolation of 2 kVrms between input and output terminals ensures safety and protection in automation environments. The integrated yellow LED clearly indicates when the coil voltage is active, simplifying maintenance diagnostics.
The relay is designed to operate within an ambient temperature range of -20°C to 50°C, suitable for various industrial environments. It conforms to UL and EAC standards assuring quality and safety compliance.
This product is manufactured in China and is classified as new. Ideal for industrial, manufacturing, and electrical automation systems requiring reliable switching and signal isolation.
24V AC/DC coil voltage for flexible power input options. 5A switching current supporting small to medium load applications. SPST contact configuration for simple on/off switching control. Compact 6.2mm width allowing space-efficient DIN rail mounting.
Silver alloy hard gold-plated contacts for durability and performance. 2 kVrms isolation between coil and contact for operational safety. Yellow LED indicator for coil voltage status monitoring. Wide operating temperature range from -20°C to 50°C.
Complies with industrial UL and EAC certification standards. Chassis mount design for easy installation on DIN rails. Browse more Interface Relays and Phoenix Contact products at EnvMart for trusted automation and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V AC/DC, allowing for flexible power input options.
It supports a maximum switching current of 5A, suitable for small to medium load applications.
This model features a SPST (single-pole single-throw) contact configuration for simple on/off switching control.
The relay can switch AC voltage up to 250V and DC voltage up to 125V.
The relay has a compact design with a width of 6.2mm, a height of 80mm, and a length of 56mm, optimized for DIN rail mounting.
The contacts are made of silver alloy with hard gold plating, which enhances durability and performance.
It is designed for chassis mounting on standard DIN rail NS 35/7.5, making installation straightforward.
It provides 2 kVrms electrical isolation between the input and output terminals for enhanced safety.
The relay operates within an ambient temperature range of -20°C to 50°C, making it suitable for various industrial environments.
This model conforms to UL and EAC standards, ensuring quality and safety compliance.
Yes, it is equipped with a yellow LED indicator that shows the coil operating voltage status, aiding in maintenance diagnostics.
This relay is part of the DEK-REL series, designed for industrial automation and control systems.
