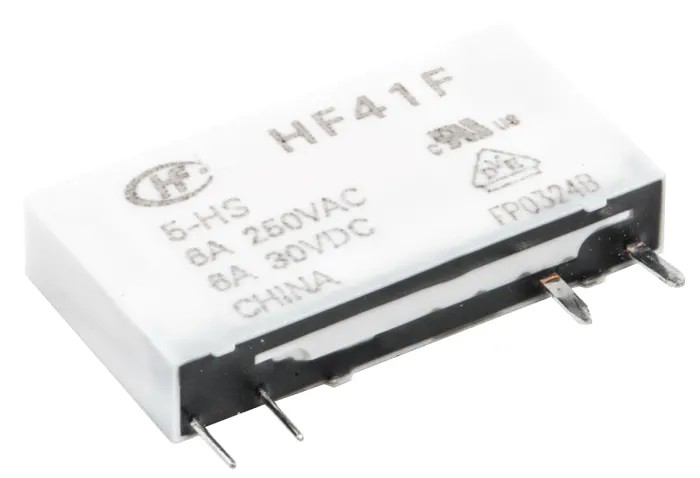

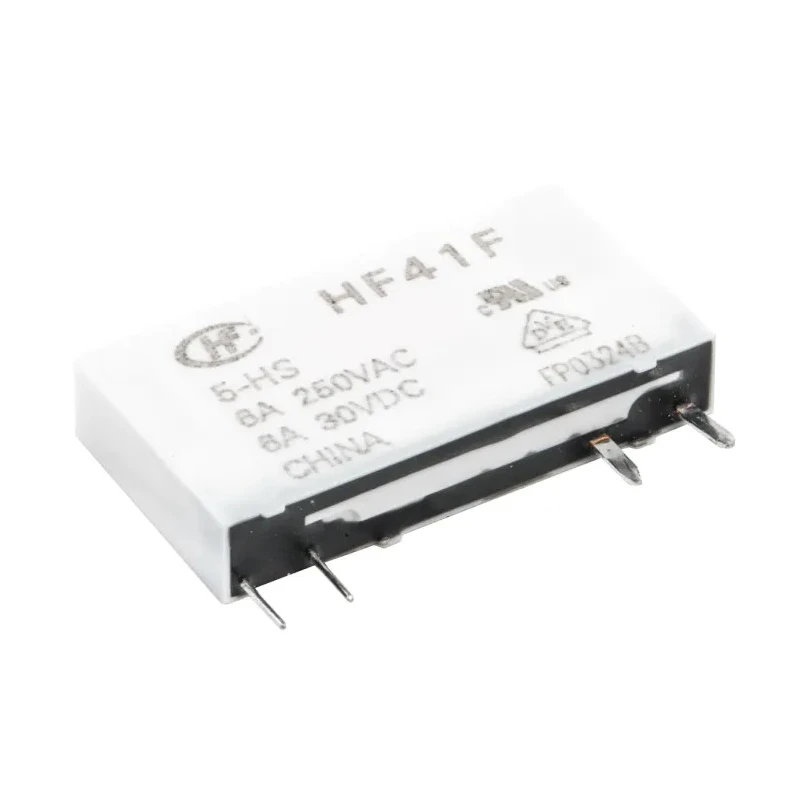

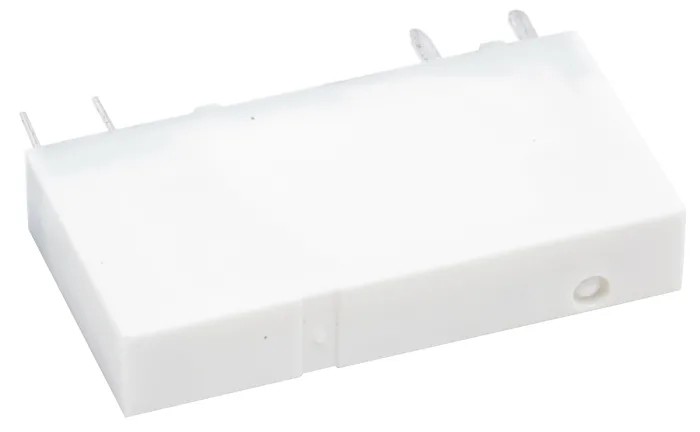

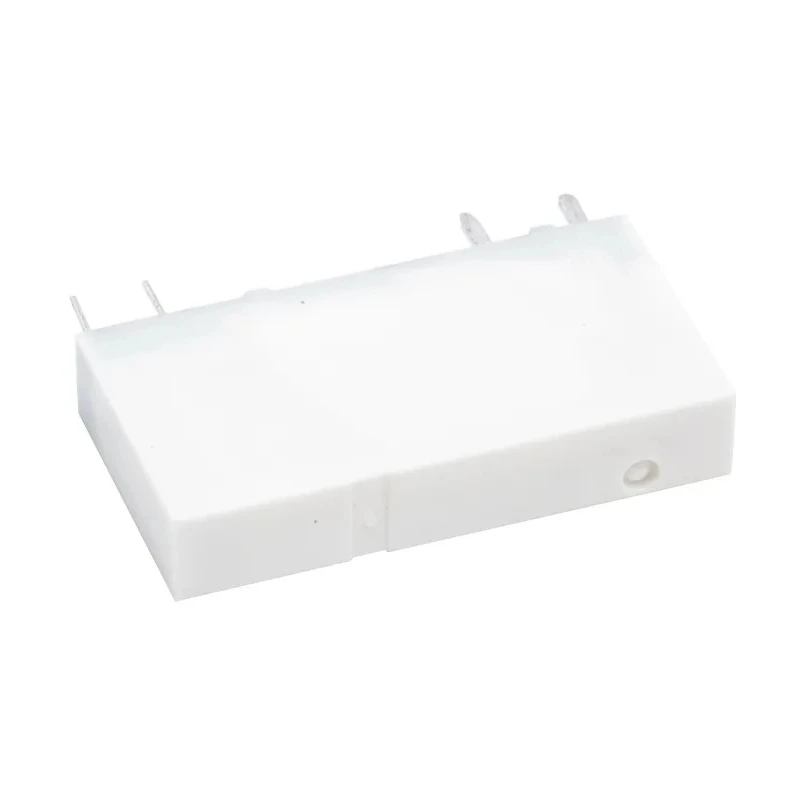

RS PRO Power Relay 5V DC Coil, 6A Switching Current, SPST PCB Mount 8004546P

RS PRO 8004546P Power Relay is a precision-engineered PCB mounted relay designed to operate with a 5V DC coil voltage and capable of handling a switching current of 6A. Its SPST (Single Pole Single Throw) contact configuration provides straightforward switching functionality for electronic circuits.

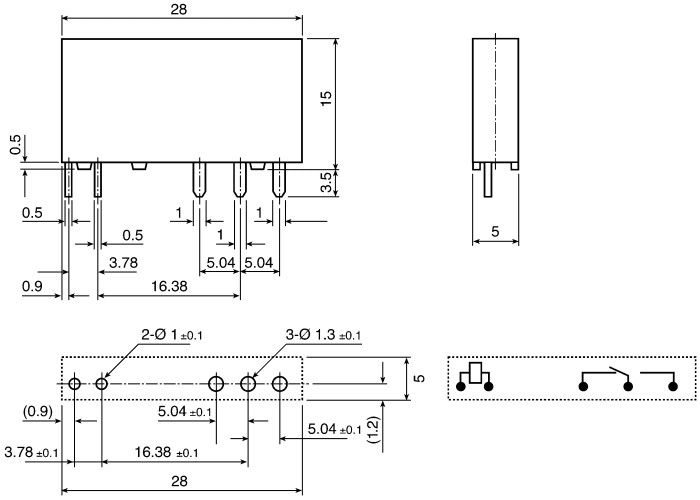

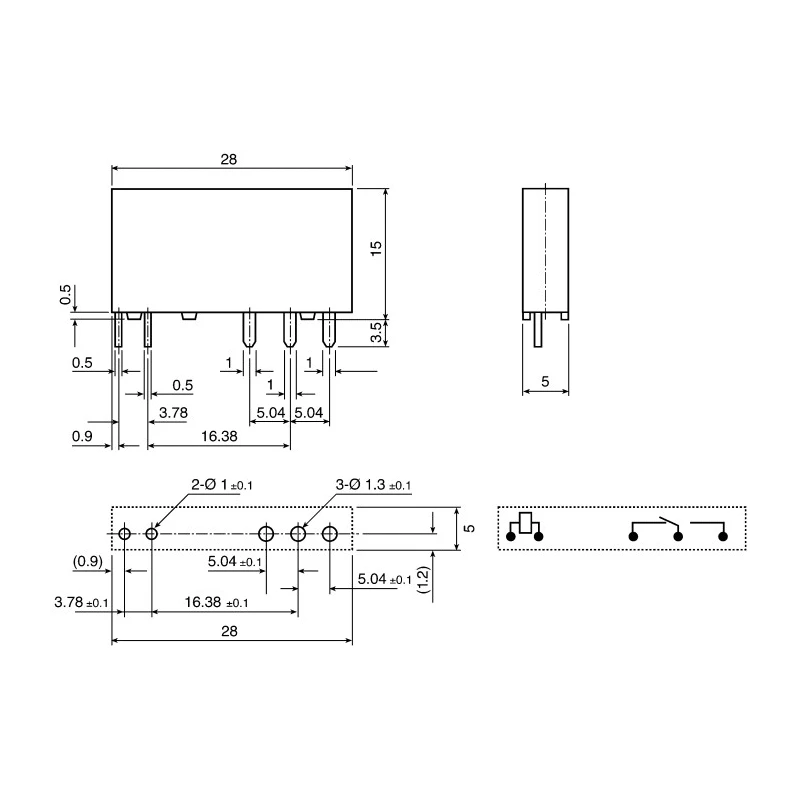

This relay boasts a slim and compact form factor with a width of just 5 mm, length of 28 mm, and height of 15 mm, making it ideal for high-density PCB assembly where space is limited. The silver alloy contact material ensures a low contact resistance and longevity under frequent switching cycles.

The coil resistance of 147 mΩ and coil power consumption of only 170 mW contribute to its energy-efficient design without sacrificing sensitivity. This relay supports a switching power capacity of up to 2.5 kVA, with the ability to switch AC and DC voltages up to 125V, making it versatile for various electrical and automation applications.

Designed for industrial environments, the relay can operate safely across a broad temperature range from -40°C to 85°C. It features an 8 mm clearance and creepage distance between coil and contacts, adhering to strict safety standards. Additionally, the device withstands surge voltages up to 6 kV and dielectric strength of 4 kV, further enhancing its durability.

Certified by recognized authorities such as UR and CQC, the RS PRO 8004546P ensures compliance with industry standards and reliability in operation. This power relay finds extensive use in industrial automation, control systems, electrical panels, and other demanding electronic applications.

Operates with a coil voltage of 5V DC to ensure low power consumption. Supports a maximum switching current of 6 amperes. Switching power rated at 2.5 kVA suitable for various industrial applications. Compact slim design with a width of 5 mm for space-saving PCB layouts.

Durable silver alloy contacts provide reliable conductivity. Coil power consumption is low at 170 mW for energy efficiency. Wide operating temperature range from -40°C to 85°C ensures use in harsh environments. Clearance and creepage distances designed for safety with 8 mm spacing.

Meets UR and CQC certifications, guaranteeing product quality and reliability. Offers high sensitivity along with surge voltage tolerance up to 6 kV. Explore additional RS PRO Power Relays and related electrical components at EnvMart for your industrial automation and PCB assembly needs.
