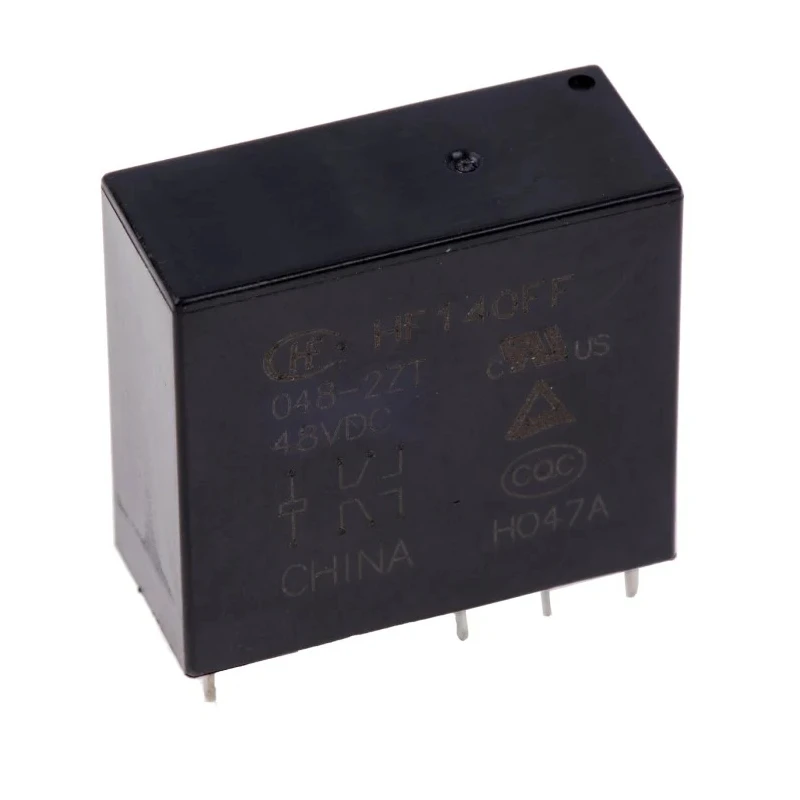

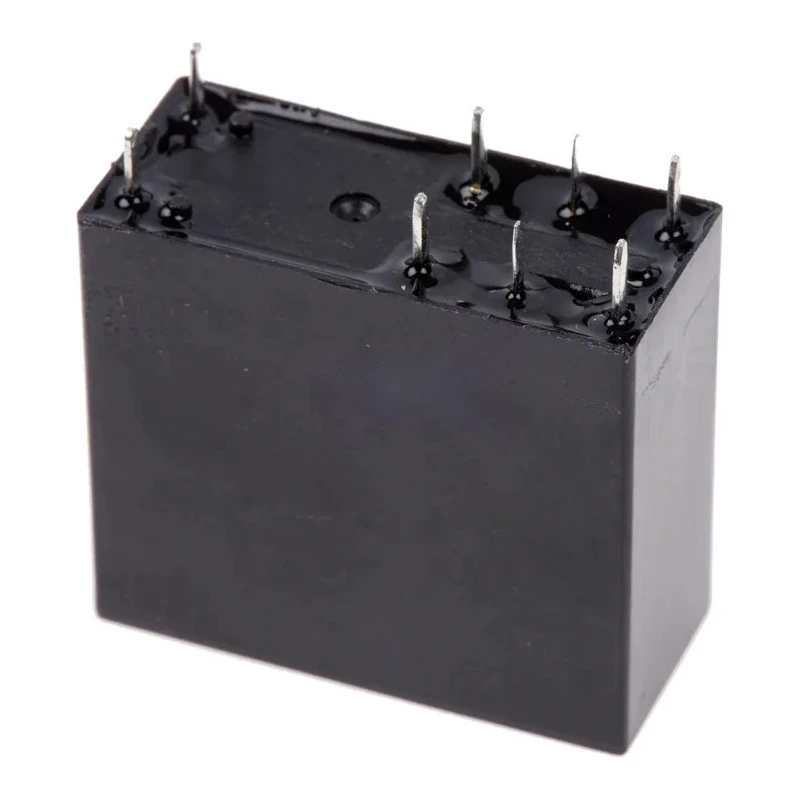

RS PRO PCB Power Relay 48V DC Coil 10A Switching Current DPDT 530mW Coil Power 29x13x26.3mm 800-4491

RS PRO 800-4491 is a highly reliable PCB Power Relay engineered for diverse electrical and industrial applications requiring controlled switching performance. Featuring a 48V DC coil and a 10A switching current capacity with a DPDT (Double Pole Double Throw) contact configuration, this relay offers versatile control capabilities.

The relay's robust design includes silver alloy contact material ensuring optimal conductivity and durability, coupled with a coil resistance of 4.2 kΩ and coil power of 530mW. It supports switching AC voltages up to 250V and DC voltages up to 30V, making it suitable for various circuit requirements.

Compact and lightweight, the relay measures 29mm in length, 13mm in width, and 26.3mm in height, designed specifically for PCB mounting with solder terminal type connections. It operates across a wide temperature range from -40°C to 85°C, making it suitable for demanding industrial environments.

Safety and reliability are reinforced by the relay's 5 kV dielectric strength between coil and contacts and surge voltage tolerance up to 10 kV. These features protect circuit integrity under high voltage spikes, ensuring long-term operational stability.

This miniature intermediate power relay is ideal for use in automation systems, control panels, electrical machinery, and various power relay applications where space-saving and dependable switching are critical.

Operates at coil voltage of 48V DC with coil power consumption of 530mW. Supports switching AC voltage up to 250V and DC voltage up to 30V. Compact dimensions of 29mm length, 13mm width, and 26.3mm height. Constructed with silver alloy contacts ensuring reliable conductivity.

Suitable for PCB mounting with solder terminal type for secure connections. Works effectively within a temperature range of -40°C to 85°C. Offers 5 kV dielectric strength between coil and contacts for enhanced safety. Miniature intermediate power relay with 2 Form C (DPDT) contact arrangement.

Ensures surge voltage protection up to 10 kV between coil and contacts. Ideal for industrial automation, electrical control systems, and power relay applications. Explore more Power Relay solutions with RS PRO at EnvMart for industrial and electrical innovation.
