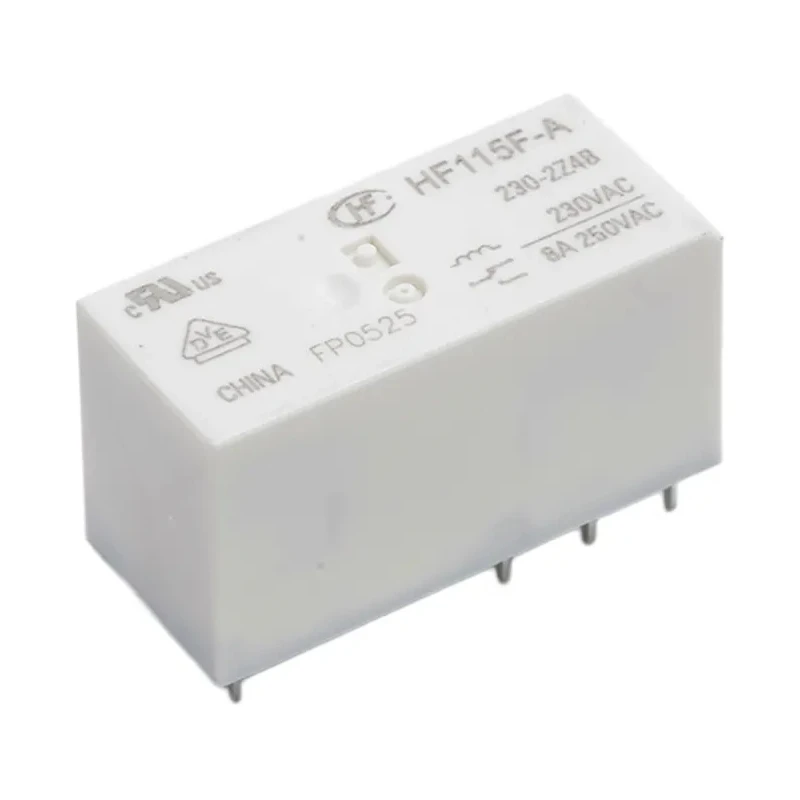

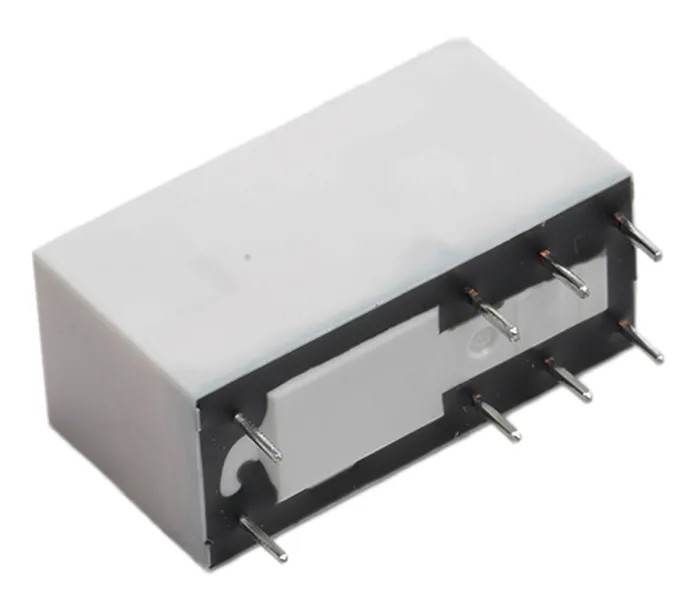

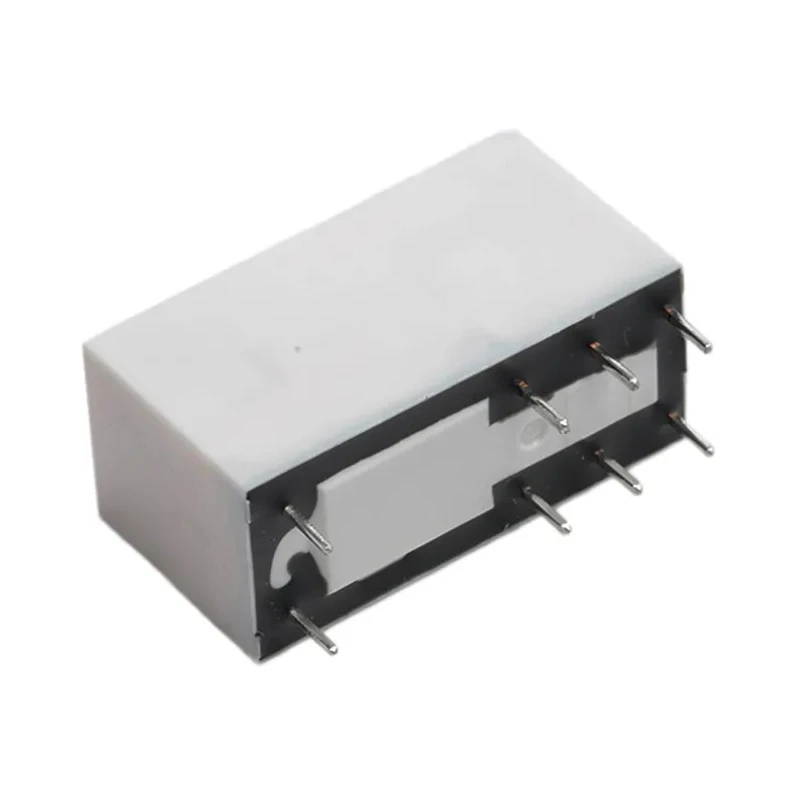

RS PRO PCB Power Relay, 230V AC Coil, 8A Switching Current, DPDT 800-4482
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 800-4482 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, UR |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 750mW |
Key Features
- This power relay features a coil voltage of 230V AC for efficient operation.
- It supports a switching current of 8 amperes suitable for various electrical applications.
- The DPDT contact configuration provides two poles with double throw for versatile switching.
- PCB mounting type allows easy integration into circuit boards through through-hole terminals.
- The relay operates reliably across a temperature range from -40°C to +70°C.
- It is constructed with silver alloy contact material ensuring low contact resistance of 100mΩ.
- The coil power consumption is 750mW with a coil resistance of 32.5kΩ.
- Designed to handle switching voltages up to 440V AC and 300V DC with a maximum switching power of 3kVA.
Product Description
RS PRO 800-4482 is a high-quality PCB power relay designed with a 230V AC coil and capable of switching currents up to 8 amperes. This Double Pole Double Throw (DPDT) relay is engineered for robust electrical circuit control and is ideal for use in automation and control systems.
Its through-hole PCB mounting ensures easy and secure installation on circuit boards. The silver alloy contacts provide excellent conductivity and reduced contact resistance, enhancing overall reliability. With a coil power of 750mW and resistance of 32.5kΩ, it ensures efficient operation with minimal energy consumption.
Operating temperature ranges from -40°C to 70°C, making it suitable for a variety of industrial and commercial environments. The relay supports maximum switching voltages of 440V AC and 300V DC and a switching power rating of up to 3kVA, handling demanding electrical loads.
Measuring 29mm in length, 12.7mm in width, and 15.7mm in height, this compact relay supports miniature power relay switching classification and features isolation coil to contact voltage of 5 kV AC for safety.
It complies with recognized standards including CQC and UR, ensuring quality and safety for industrial, laboratory, manufacturing, and automation applications. This power relay is ideal for push-button applications, keyboards, and micro-controller input buttons where non-latching operation is required.
The product design supports a long lifespan with 1,000,000 mechanical and 50,000 electrical operations. Its all-metal contact construction and robust build guarantee durability and consistent performance. Package includes one RS PRO 800-4482 PCB Power Relay with all above specifications.
EnvMart offers a wide selection of industrial relays and electrical components suitable for diverse applications. Explore our category for more high-quality products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC, which allows for efficient operation in various electrical applications.
This model can handle a maximum switching current of 8 amperes, suitable for a variety of electrical tasks.
The contact configuration of this relay is Double Pole Double Throw (DPDT), providing versatile switching capabilities.
The dimensions of this power relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
It supports maximum switching voltages of 440V AC and 300V DC, making it suitable for demanding electrical loads.
The operating temperature range for this relay is from -40°C to 70°C, allowing it to function in various environments.
This relay uses PCB mounting with through-hole terminals for easy integration into circuit boards.
The coil power consumption of this model is 750mW, which ensures efficient operation.
The contact material used in this relay is silver alloy, which ensures low contact resistance of 100mΩ.
This power relay complies with recognized standards including CQC and UR, ensuring quality and safety for various applications.
This relay is designed to support up to 1,000,000 mechanical operations and 50,000 electrical operations, indicating a long lifespan.
The isolation voltage between the coil and contact is 5 kV AC, providing safety in operation.
