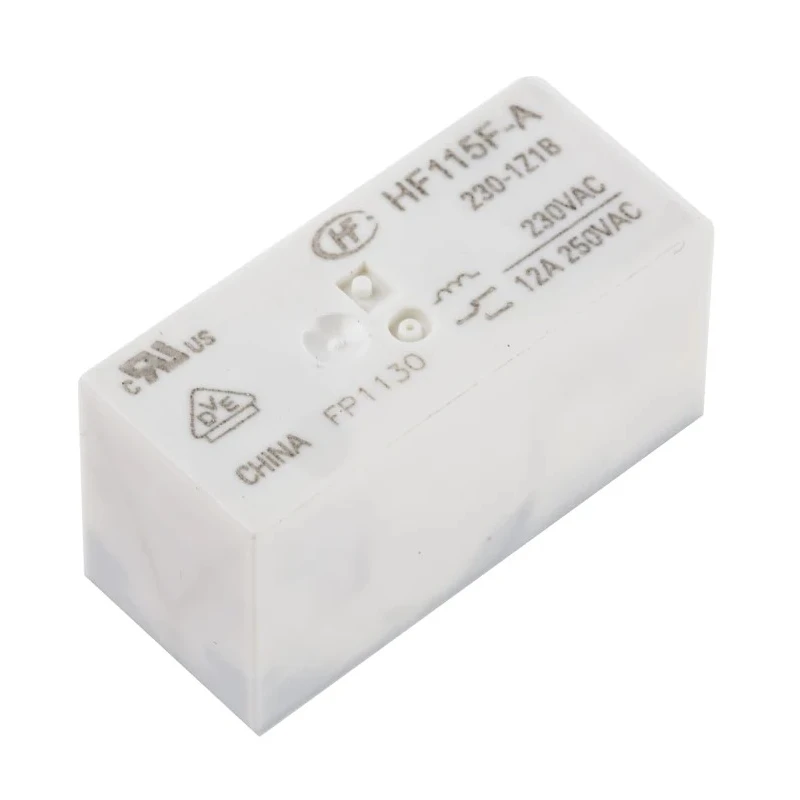

RS PRO Power Relay PCB Mount SPDT 230V AC Coil 12A Switching Current 8004479P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 8004479P |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, UR |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 750mW |
| High inrush | TV-5 80A (at 125Vac) |
Key Features
- Designed for PCB mounting with solder terminals.
- Operates with a coil voltage of 230V AC and coil power of 750mW.
- Contact configuration is Single Pole Double Throw (SPDT) with silver alloy contacts.
- Switching capacity includes 12A current at up to 440V AC and 300V DC.
- Compact low profile design with dimensions 29mm length, 12.7mm width, and 15.7mm height.
- Operates reliably between -40°C and 70°C ambient temperatures.
- Coil resistance measured at 32.5 kΩ to ensure stable operation.
- High inrush tolerance rated TV-5 80A at 125 VAC for heavy load switching.
Product Description
RS PRO 8004479P Power Relay is a high quality PCB mounted relay featuring a 230V AC coil and SPDT contact configuration ideal for industrial, automation, and electrical control applications. It supports a switching current of 12A, making it suitable for medium power circuit control on printed circuit boards.
Its compact dimensions of 29mm length, 12.7mm width, and a low profile height of 15.7mm allow easy integration into compact assemblies. The relay uses silver alloy contacts ensuring low contact resistance of 100mΩ and long-term reliability under electrical load.
The coil resistance is 32.5kΩ with a coil power consumption of 750mW, designed to operate within ambient temperatures ranging from -40°C to 70°C, providing reliability in demanding environments.
This product exhibits a high inrush current tolerance of TV-5 80A at 125 VAC, allowing it to handle demanding inductive loads without degradation. It has a dielectric strength of 5kV between coil and contacts and can withstand surge voltages up to 10kV, enhancing durability and electrical safety.
The relay complies with authoritative standards including IEC 60335-1 and is certified by UL, VDE, and CQC, ensuring it meets international safety and quality norms. Designed for PCB mounting with solder terminals. Single Pole Double Throw (SPDT) contact arrangement for versatile switching.
Suitable for switch currents up to 12A and switching AC voltage up to 440V. Robust and compact with low profile of 15.7mm height. Operates reliably in industrial ambient conditions from -40°C to 70°C. High surge voltage resistance for enhanced safety.
Silver alloy contacts minimize resistance and improve performance.
This RS PRO Power Relay model 8004479P is ideal for industrial automation, HVAC systems, manufacturing equipment, and other electrical control systems requiring reliable power switching on PCBs. Its compact design and robust electrical characteristics promise high efficiency and durability in diverse applications.
Explore EnvMart’s extensive selection of industrial relays and electrical components to find compatible parts and complementary products for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC.
This model supports a switching current of 12A.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay operates reliably in ambient temperatures ranging from -40°C to 70°C.
The coil resistance is measured at 32.5 kΩ.
It can switch AC voltages up to 440V.
The contacts are made from silver alloy, ensuring low contact resistance.
The coil power consumption is 750mW.
It has a high inrush current tolerance rated at TV-5 80A at 125 VAC.
This relay complies with standards including CQC and UL.

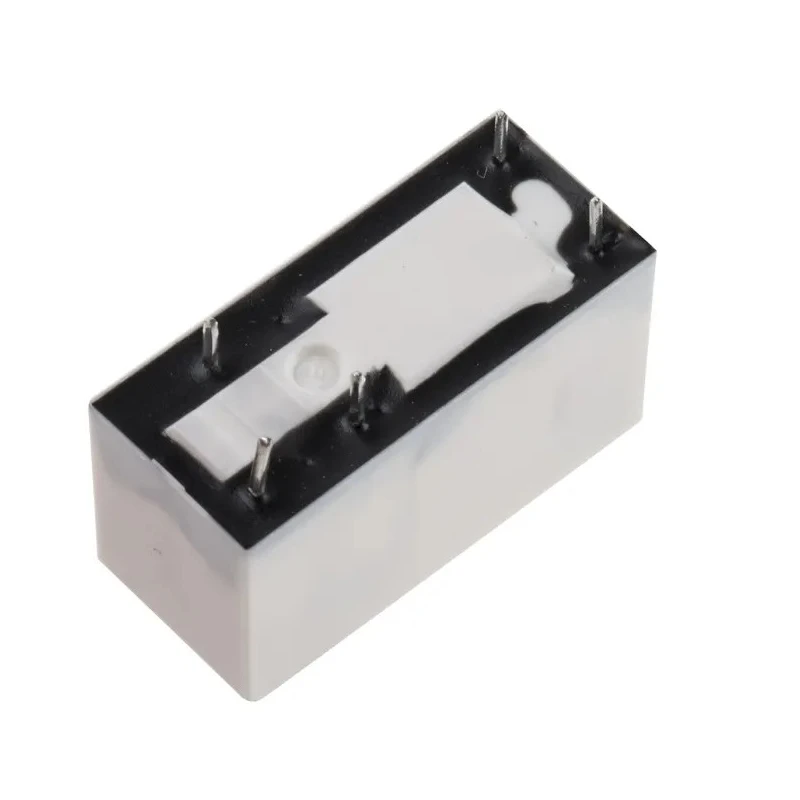

It is designed for PCB mounting with solder terminals.
