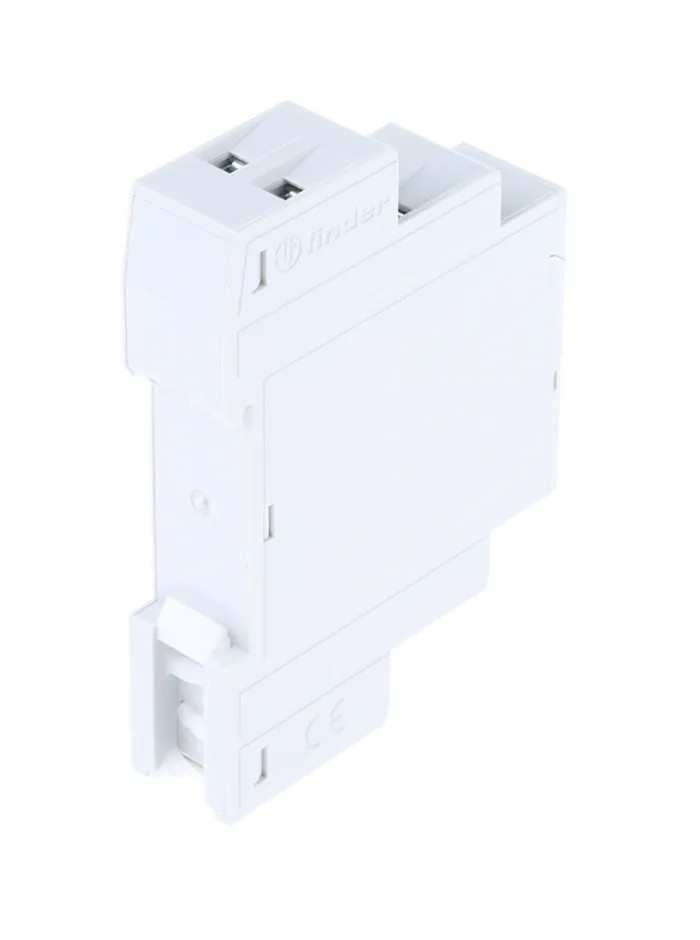

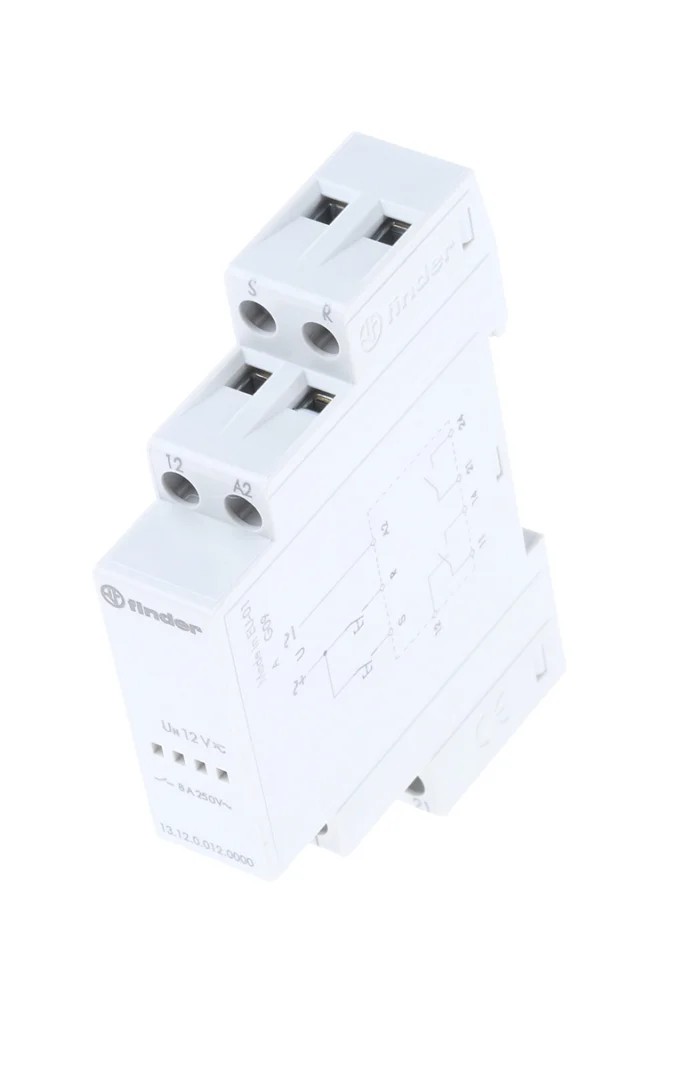

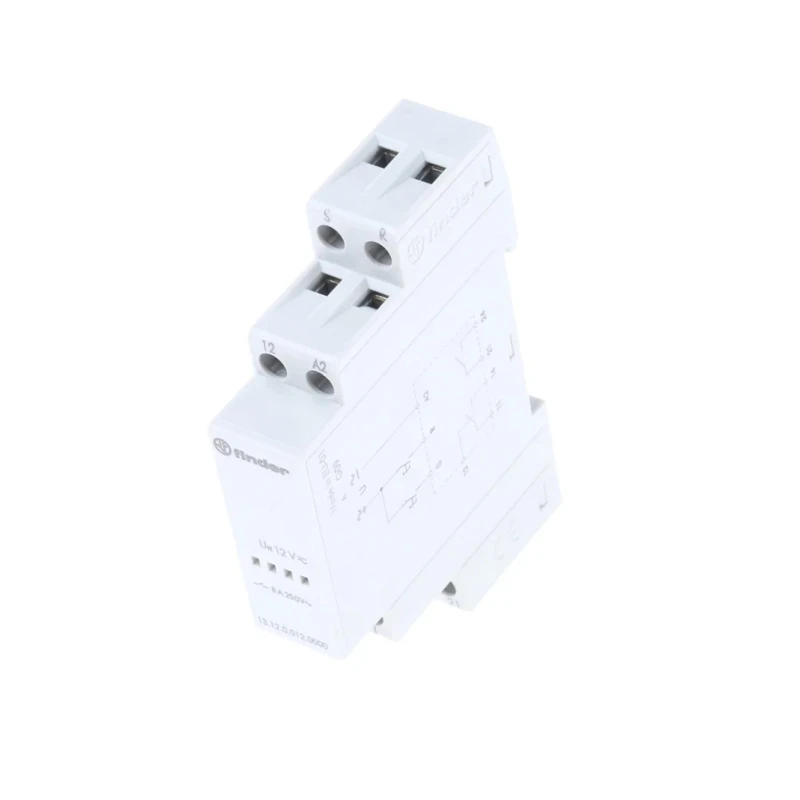

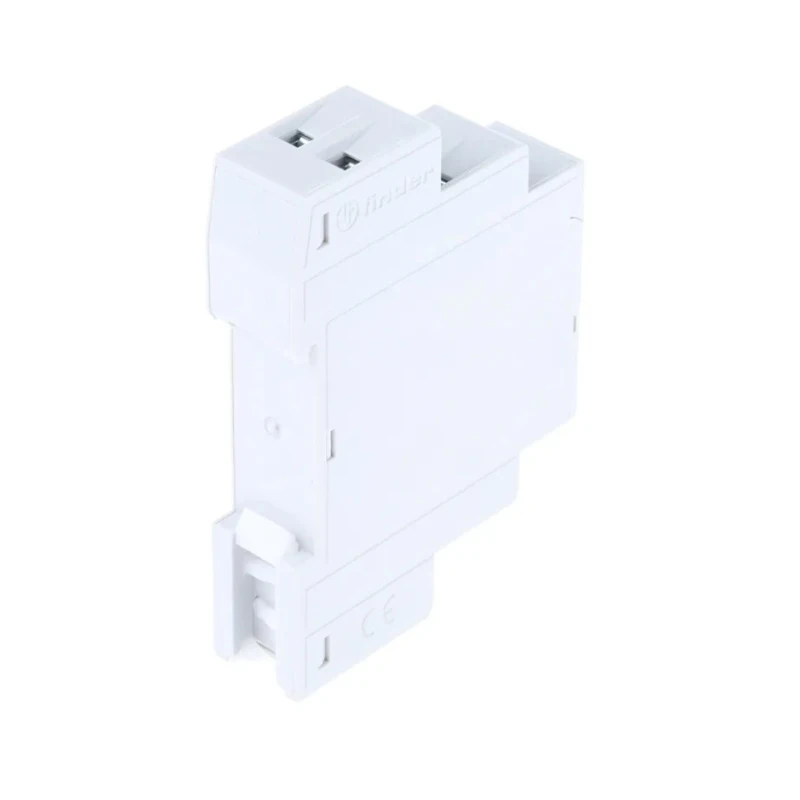

Finder DIN Rail Power Relay 12V AC/DC Coil 8A Switching Current SPDT 13.12.0.012.0000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 88.8mm |
| Operating Temperature Range | -10 ºC to +60 ºC |
| Length | 17.5mm |
| Width | 60.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 13 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Standards/Approvals | CE, EAC |
| Coil Voltage | 12V ac/dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2.5W |
| Reset command suitable for residential and commercial applications | public bathroom, hospital, hotel |
Key Features
- Equipped with a Silver Alloy contact material for durable performance.
- Designed for mounting on 35 mm DIN Rail with screw terminal connections.
- Operating temperature range from -10°C to 60°C ensures reliable usage in diverse environments.
- Supports switching voltages up to 250V AC and 250V DC with a switching power of 2 kVA.
- Compact dimensions of 17.5 mm length, 60.8 mm width, and 88.8 mm height for space-efficient installation.
- Complies with CE and EAC standards, ensuring quality and certification adherence.
- Ideal for residential and commercial reset applications including public bathrooms, hospitals, and hotels.
- Coil power consumption is 2.5W, ensuring energy-efficient operation.
Product Description
Finder 13.12.0.012.0000 DIN Rail Power Relay features a 12V AC/DC coil with an 8A switching current in a SPDT contact configuration. This relay is designed for industrial and commercial applications, suitable for reliable switching tasks within HVAC, electrical automation, and signal control systems.
The relay mounts conveniently on a 35 mm DIN rail (EN 60715) and uses screw terminals for secure electrical connections. It operates within a temperature range of -10°C to +60°C, accommodating varied ambient conditions. With a compact form factor measuring 17.5 mm in length, 60.8 mm width, and 88.8 mm height, it fits well into dense control panels.
Equipped with silver alloy contacts, this power relay supports switching voltages of 250V AC and 250V DC, handling switching power up to 2 kVA effectively for diverse circuits. Coil power consumption is rated at 2.5W, contributing to overall system efficiency.
The product conforms to CE and EAC certifications, ensuring compliance with international quality and safety standards. Its reset command makes it particularly suitable for residential and commercial applications such as public bathrooms, hospitals, and hotels, where reliable call and reset functionality is required.
This series (13.11 & 13.12) is focused on call and reset relays optimized for rail mounting and efficient switching performance. The relay offers IP 20 level protection, securing the device against accidental contact and foreign objects in typical electrical enclosures.
Equipped with a Silver Alloy contact material for durable performance. Designed for mounting on 35 mm DIN Rail with screw terminal connections. Operating temperature range from -10°C to 60°C ensures reliable usage in diverse environments.
Supports switching voltages up to 250V AC and 250V DC with a switching power of 2 kVA. Compact dimensions of 17.5 mm length, 60.8 mm width, and 88.8 mm height for space-efficient installation. Complies with CE and EAC standards, ensuring quality and certification adherence.
Ideal for residential and commercial reset applications including public bathrooms, hospitals, and hotels. Coil power consumption is 2.5W, ensuring energy-efficient operation.
Explore our Electronics & Electricals category for related Power Relays and find more high-quality industrial components with verified specifications and trusted brand reliability at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V AC/DC.
This model has a maximum switching current of 8A.
The dimensions of this relay are 17.5 mm in length, 60.8 mm in width, and 88.8 mm in height.
It operates within a temperature range of -10°C to +60°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay supports switching voltages of up to 250V AC and 250V DC.
It is designed for mounting on a 35 mm DIN rail using screw terminals.
The coil power consumption is rated at 2.5W.
The contacts are made of silver alloy, which contributes to their performance.
This relay is ideal for residential and commercial applications, including public bathrooms, hospitals, and hotels.
It complies with CE and EAC standards, ensuring adherence to international quality and safety standards.
The maximum switching power of this relay is 2 kVA.
