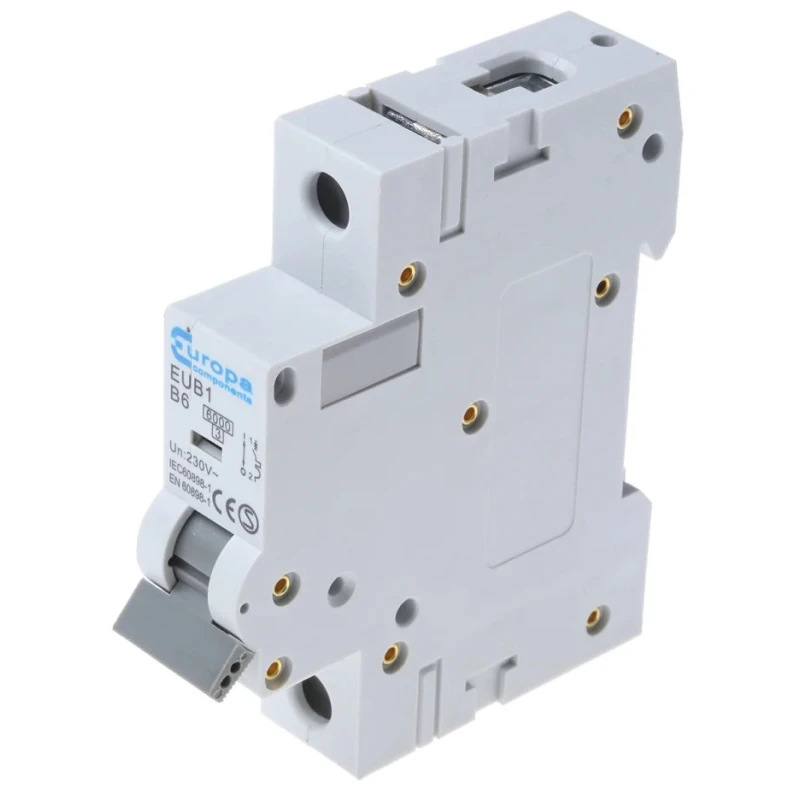

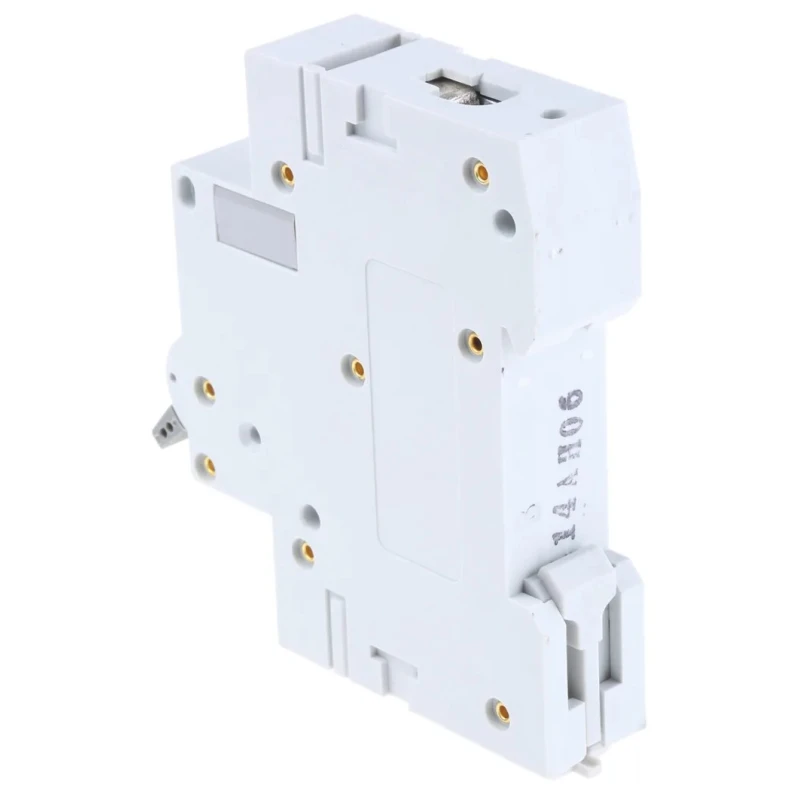

Europa Miniature Circuit Breaker, 1-Pole, 6A, Type B Tripping, 240V AC, 6 kA Breaking Capacity EUB1

Europa EUB1 Miniature Circuit Breaker model EUB1 is a high-quality 1-pole circuit protection device rated at 6A and type B tripping characteristic. This breaker operates effectively at 240V AC and has a breaking capacity of 6 kA, making it ideal for residential and light industrial electrical distribution systems.

The compact device mounts on a standard 35mm DIN rail and includes a toggle switch for manual reset. Its IP20 rating ensures adequate protection against solid foreign objects, suitable for indoor electrical enclosures.

With terminal capacity from 1mm² to 25mm², it accommodates a wide range of conductor sizes for flexible installation options. The breaker dimensions of 87mm height, 18mm width, and 66mm depth allow easy fitting within consumer units and enclosures.

This MCB complies with IEC 60898 and EN 60898 standards and carries CE and SEMKO certifications, ensuring reliability, safety, and performance in circuit protection applications. Its operating temperature range from -5°C to 40°C suits typical environmental conditions encountered in electrical installations.

This MCB supports a rated AC voltage of 240V AC for standard domestic and industrial circuits. It features a 6 kA breaking capacity ensuring safe fault interruption. The device mounts easily on a 35mm DIN rail with toggle switch reset actuator.

IP20 rated for protection against solid objects, suitable for indoor use. Terminal capacity ranges from 1mm² to 25mm² for versatile wire connection. Compact dimensions (87mm height, 18mm width, 66mm depth) fit standard consumer units.

Complies with IEC 60898 and EN 60898 standards and has CE and SEMKO approvals. Operating temperature range is -5°C to 40°C for safe function in typical environments.

This miniature circuit breaker is ideally suited for industrial, commercial, and residential electrical distribution protection. It offers dependable short-circuit and overload protection, essential for electrical safety compliance and operational reliability.
