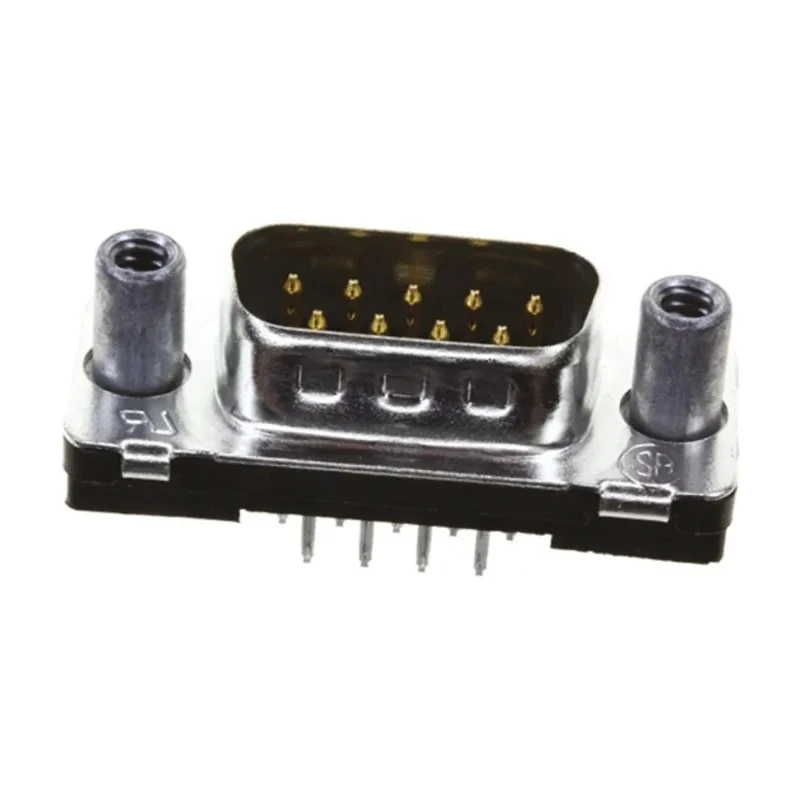

TE Connectivity AMPLIMITE HD-20 D-Sub Connector 9 Way Straight 2.743 mm Pitch Through Hole Male 1-5747871-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.743mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 1 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- This connector features a straight orientation suitable for PCB mounting.
- It has 9 brass contacts with tin over nickel plating for reliable conductivity.
- The housing is made of durable 94V-0 black thermoplastic for high thermal resistance.
- Supports operating temperatures from -55°C to 105°C.
- Mounting hardware uses 4 to 40 UNC screws to ensure secure fixing.
- Designed for male connector gender with solder termination type for strong joints.
- Current rating is 6A suitable for power and signal transmission.
- The connector shell size is DS-1, part of the AMPLIMITE HD-20 series.
Product Description
TE Connectivity 1-5747871-4 AMPLIMITE HD-20 D-Sub Connector is a 9 way straight male connector designed for through hole PCB mounting. Featuring a 2.743 mm pitch and brass contacts plated with tin over nickel, this connector ensures excellent electrical performance and durability.
The connector's thermoplastic housing rated to 94V-0 minimizes flammability risks while allowing operation in a wide temperature range from -55°C to 105°C, making it suitable for harsh industrial and electronic environments.
The hardware incorporates 4 to 40 UNC screws for secure mounting, while the solder termination type provides reliable mechanical and electrical connections. This connector’s DS-1 shell size fits a wide variety of applications that use D-subminiature connectors in power, control, and signal wiring systems.
Its compact 9 contact design and straight orientation optimize PCB layout and reduce space consumption. Brass contacts with tin over nickel plating provide corrosion-resistant, low resistance connections meeting demanding electrical standards.
This connector features a straight orientation suitable for PCB mounting. It has 9 brass contacts with tin over nickel plating for reliable conductivity. The housing is made of durable 94V-0 black thermoplastic for high thermal resistance.
Supports operating temperatures from -55°C to 105°C. Mounting hardware uses 4 to 40 UNC screws to ensure secure fixing. Designed for male connector gender with solder termination type for strong joints. Current rating is 6A suitable for power and signal transmission.
The connector shell size is DS-1, part of the AMPLIMITE HD-20 series. Ideal for industrial electronic applications requiring reliable and compact connectors.
This product is widely used in industrial, laboratory, manufacturing, and communication industries where dependable electronic connector solutions are critical. The TE Connectivity AMPLIMITE HD-20 series is recognized for its build quality and performance.
Explore more connectors and related electronic components through EnvMart for your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this connector is 6A, making it suitable for power and signal transmission.
The pitch size of this connector is 2.743 mm.
The housing is made of thermoplastic, while the contacts are made of brass with tin over nickel plating for reliable conductivity.
It supports an operating temperature range from -55°C to 105°C.
This connector is designed for through hole mounting and uses 4 to 40 UNC screws for secure fixing.
This connector features male contacts, suitable for male connector gender applications.
The connector shell size is DS-1, which is part of the AMPLIMITE HD-20 series.
It utilizes a solder termination type for strong mechanical and electrical connections.
This D-Sub connector has 9 contacts.
It is widely used in industrial, laboratory, manufacturing, and communication industries where reliable electronic connector solutions are critical.
The contacts are plated with tin over nickel, which provides corrosion resistance and ensures low resistance connections.
