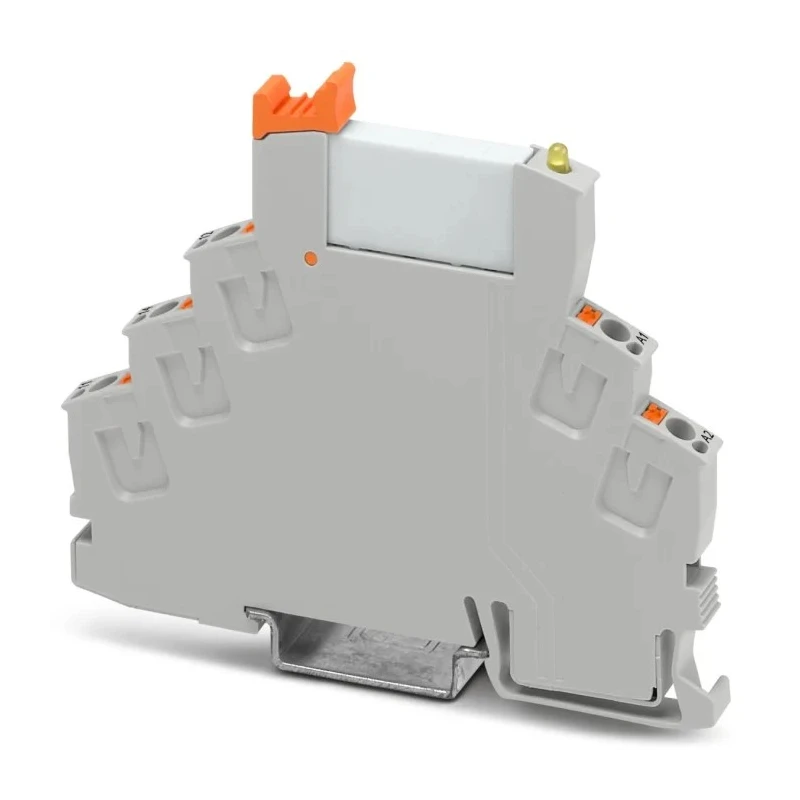

Phoenix Contact DIN Rail Interface Relay, 24V dc Coil, 1mA Switching Current, SPDT Contact Configuration 2903368
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Height | 93mm |
| Length | 6.2mm |
| Model | 2903368 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | RIF-0-RPT-24DC/21AU |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1mA |
| Terminal type | Plug-In |
| Standards/Approvals | EAC, DNV GL |
| Coil Resistance | 3.388kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 36V dc |
| Switching AC Voltage | 30V ac |
| RS PRO Interface Relay, DIN Rail, 24V dc Coil, SPDTBrand | RS PRO |
Key Features
- The coil voltage is 24V DC with a coil resistance of 3.388 kΩ ensuring efficient operation.
- The relay switches a current of 1mA supporting maximum switching voltages of 30V AC and 36V DC.
- Designed for DIN Rail mounting with dimensions 78mm (depth) x 93mm (height) x 6.2mm (width).
- Equipped with silver alloy contacts for high reliability and resistance to corrosion.
- Operates within a wide temperature range from -40°C to +60°C suitable for industrial environments.

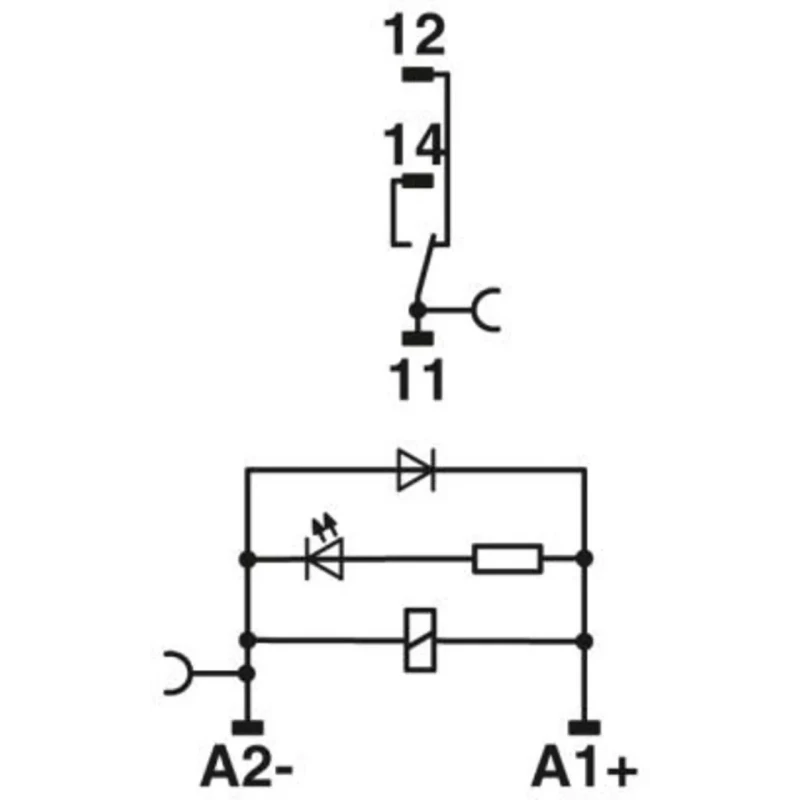

- Includes an integrated freewheeling diode for interference suppression and quick installation with push-in connections and ejector.
- Mechanical service life is rated at 20,000,000 cycles ensuring durability.
- Meets standards and approvals including EAC and DNV GL.
Product Description
Phoenix Contact 2903368 DIN Rail Interface Relay is a robust and reliable non-latching relay module designed for industrial, electrical, and automation applications requiring precise signal switching and control. It features a 24V DC coil voltage and a single pole double throw (SPDT) contact configuration, suitable for various switching and coupling operations.
The relay module includes a relay base with an ejector and quick push-in terminals, enabling quick and secure DIN Rail mounting. The integrated freewheeling diode allows flexible connection of input or interference suppression circuits, enhancing operational reliability and signal protection.
Constructed with silver alloy contacts, the relay ensures resistance to rust and corrosion, providing consistent performance over a mechanical service life rated at 20 million cycles. It supports switching currents up to 1mA at maximum AC voltage of 30V and DC voltage of 36V. The compact dimensions of 78mm depth, 93mm height, and 6.2mm width make it ideal for modular system integrations.
This interface relay operates reliably in harsh environments with an operating temperature range of -40°C to +60°C. It complies with international standards including EAC and DNV GL, assuring quality and safety for demanding industrial applications.
Typical use cases include industrial automation, signal conditioning, electrical control panels, and systems requiring secure relay switching for low power signals on DIN Rail mount configurations.
Coil voltage of 24V DC with 3.388 kΩ coil resistance for stable performance. SPDT contact configuration suitable for diverse switching functions. DIN Rail mount with push-in connection technology for easy installation. Silver alloy contacts provide durability and corrosion resistance.
Wide operating temperature range from -40°C to 60°C. Mechanical service life of 20 million cycles for long-term use. Switching currents of 1mA supporting up to 30V AC and 36V DC voltages. Integrated freewheeling diode and test plug holders for operational convenience.
This product is part of the Phoenix Contact RIF-0 Power Relay Modules range, known for their reliability and ease of handling in automation and electrical control systems. For comprehensive solutions, explore the full selection of Interface Relays and contactors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC and has a coil resistance of 3.388 kΩ.
It features a single pole double throw (SPDT) contact configuration, allowing for versatile switching functions.
This model supports a maximum switching current of 1mA with switching voltages of up to 30V AC and 36V DC.
The relay has dimensions of 78mm in depth, 93mm in height, and 6.2mm in width, making it compact for modular installations.
It operates reliably within a temperature range of -40°C to +60°C, suitable for harsh industrial environments.
The contacts are made of silver alloy, providing resistance to rust and corrosion for enhanced reliability.
It is designed for DIN Rail mounting and features quick push-in terminals for easy installation.
The relay has a mechanical service life rated at 20 million cycles, ensuring long-term operational capability.
Yes, it includes an integrated freewheeling diode for interference suppression, enhancing operational reliability.
It complies with international standards including EAC and DNV GL, ensuring quality and safety for industrial applications.
This relay uses plug-in terminals, which facilitate quick and secure connections during installation.
It is suitable for industrial automation, signal conditioning, and electrical control panels requiring secure relay switching for low power signals.
