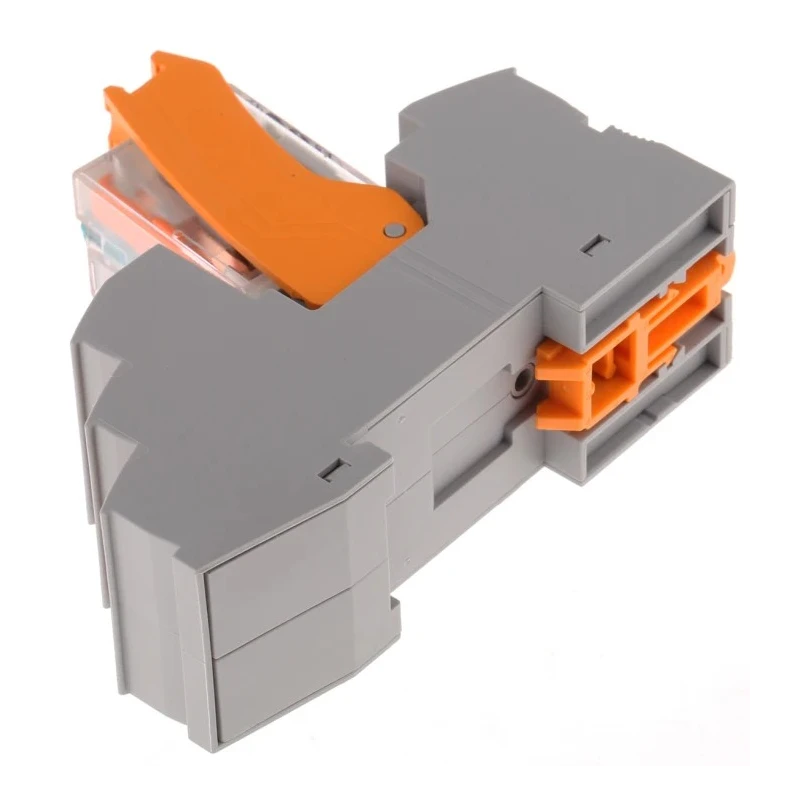

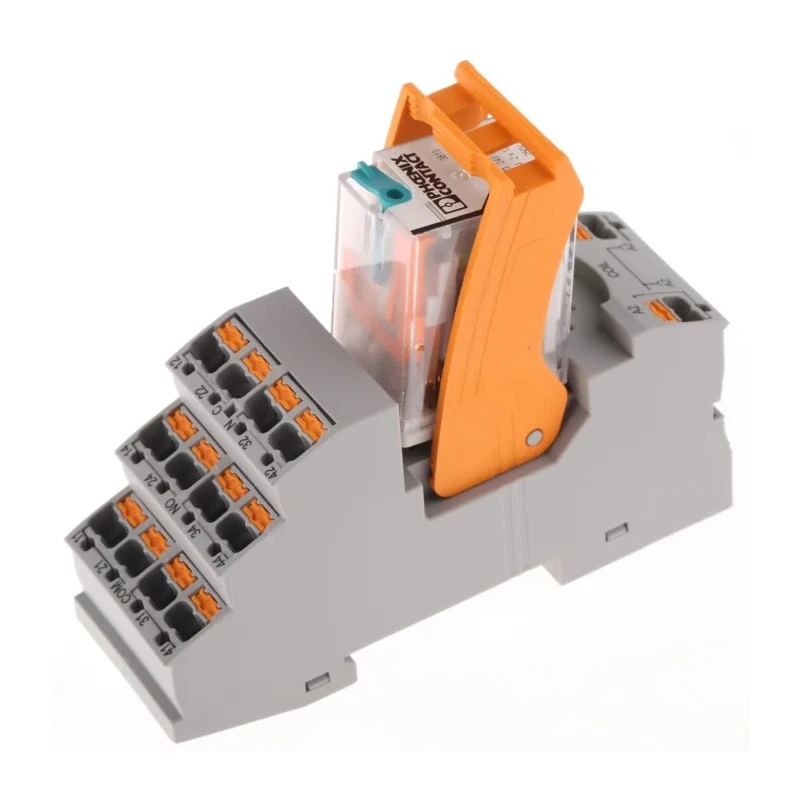

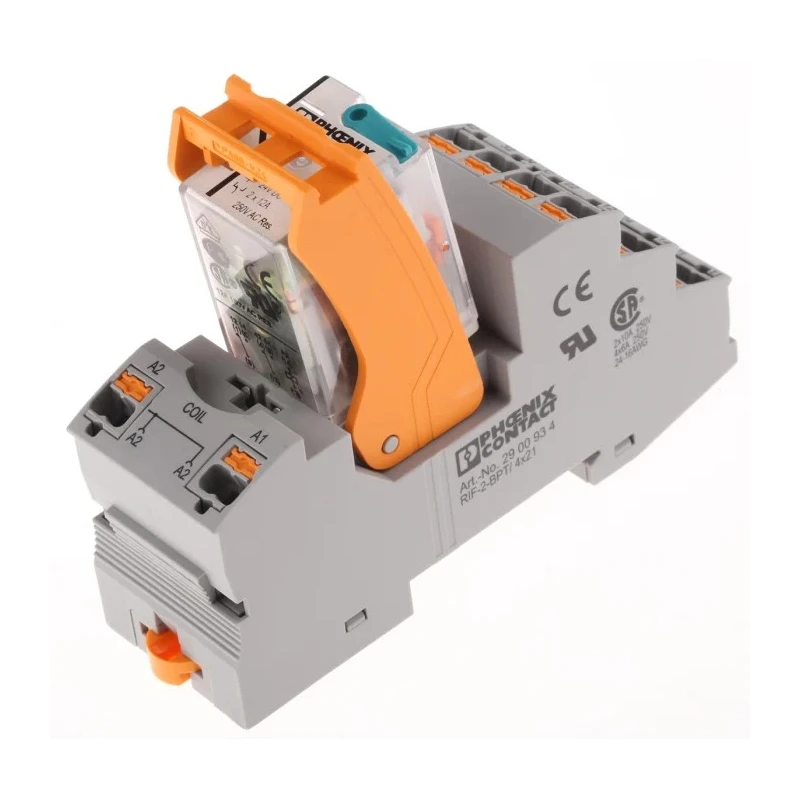

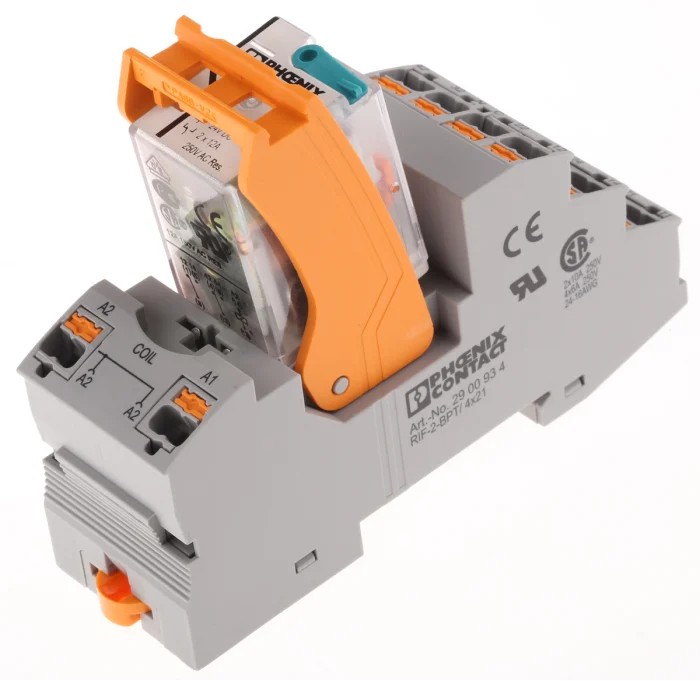

Phoenix Contact DIN Rail Interface Relay 24V dc Coil, 5mA Switching Current, DPDT 2903315
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Height | 96mm |
| Length | 31mm |
| Model | 2903315 |
| Width | 75mm |
| Mount Type | DIN Rail |
| Series | RIF |
| Contact Configuration | DPDT |
| Switching Current | 5mA |
| Terminal type | Plug-In |
| Standards/Approvals | EAC, CSA |
| Coil Voltage | 24V dc |
Key Features
- This relay features a double pole, double throw contact configuration.
- It includes a yellow LED operating voltage indicator for clear status display.
- Equipped with a damping diode to protect against voltage spikes.
- Silver alloy contacts provide durable and reliable electrical connections.
- Designed for DIN rail mounting with plug-in terminal type for easy installation.
- Suitable for switching currents up to 2 A and maximum switching voltage of 250 V AC/DC.
- Mechanical service life rated for 20 million cycles ensures long-term reliability.
- Operating temperature range from -40°C to +60°C for a broad range of environments.
Product Description
Phoenix Contact 2903315 DIN Rail Interface Relay is a high-quality industrial DPDT relay with a 24 V DC coil designed for effective circuit switching applications in automation and control systems.
This non-latching relay module operates with a low coil power of 77 mW and coil resistance of 640 Ω, enabling energy-efficient operation. The double pole double throw contact configuration offers flexible switching, ideal for controlling multiple circuits with one device. The relay includes a damping diode for protection against voltage spikes and a yellow LED indicator for easy operation monitoring.
Constructed with silver alloy contacts, this relay ensures durability and reduces contact material transfer, enhancing operational stability. The device is mounted on DIN rails using a plug-in terminal type connector for quick and reliable installation. It handles switching currents up to 2 A with a maximum switching voltage rating of 250 V AC/DC and supports a mechanical life of 20 million switching cycles, proving its robustness for industrial use.
Operating within a wide temperature range of -40°C to +60°C, this relay suits a variety of electrical and automation environments including manufacturing, industrial control, and signal conditioning. The product comes with a retaining bracket that features an ejector function and holder for marking, easing maintenance and identification.
This relay is ideal for standby modes, redundant signaling operations, or motor direction changes. Robust design with advanced push-in connection technology simplifies wiring tasks. LED display ensures operational status visibility at all times.
Includes a plug-in display/suppressor module for enhanced protection. Applicable in electrical, automation, and HVAC control systems.
Choose this Phoenix Contact RIF series Interface Relay for durable, efficient, and versatile power relay solutions in professional industrial applications. Explore EnvMart’s extensive relay collection for compatible industrial automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
This relay can handle a maximum switching current of 2 A.
It features a double pole, double throw (DPDT) contact configuration.
The relay has dimensions of 96mm in height, 31mm in length, and 75mm in width.
The operating temperature range is from -40°C to +60°C.
It is designed for DIN rail mounting and features a plug-in terminal type for easy installation.
The relay includes a damping diode to protect against voltage spikes.
The mechanical service life is rated for 20 million cycles.
It complies with EAC and CSA standards.
It is suitable for applications in electrical, automation, and HVAC control systems.
Yes, it includes a yellow LED operating voltage indicator for clear status display.
The contacts are made from silver alloy, which enhances operational stability.
