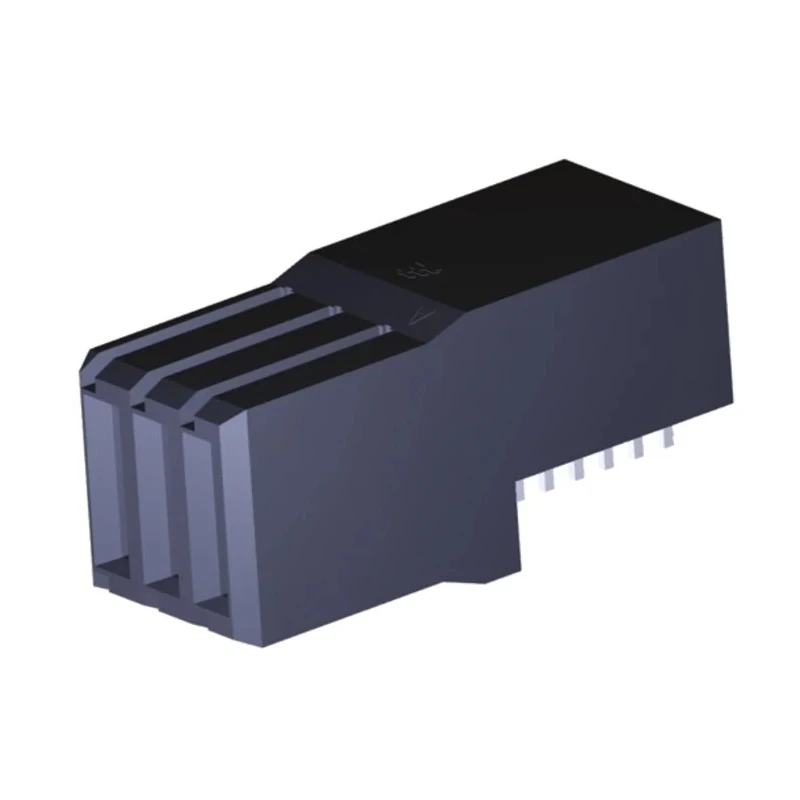

TE Connectivity Z-PACK HM Series Right Angle Surface PCB Socket, 3-Contact, 1 Row, 1.5 mm Pitch Crimp 120943-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 16A |
| Model | 120943-1 |
| Mount Type | Surface |
| Housing Material | Polyester |
| Contact Material | Copper |
| Series | Z-PACK HM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 110°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a 1.5 mm pitch and three contact positions.
- Supports a current rating of 16 A and operating voltage of 250 V.
- Constructed with polyester housing and copper contacts plated with tin.
- Designed for right angle mounting on surface PCB boards.
- Suitable for harsh environments with operating temperature range from -40°C to 110°C.
- Termination type is crimp for secure contact insertion.
- Compatible with Z-PACK HM series connectors for modular applications.
- Ideal for industrial and electronic equipment requiring robust board-to-board connections.
Product Description
TE Connectivity 120943-1 PCB Socket is a high-quality right angle surface mount connector featuring 3 contacts arranged in 1 row with a 1.5 mm pitch designed for board-to-board connection systems. It supports an operating voltage of 250 V and a current rating of 16 A, making it suitable for demanding electronic applications.
Its polyester housing provides strong insulation and durability, while the copper contacts are plated with tin to ensure reliable electrical connection and corrosion resistance. The crimp termination type allows for secure and stable wire attachment, enhancing mechanical strength.
Designed to withstand harsh operating environments, this socket maintains functionality across a wide temperature range from -40°C to 110°C. The right angle orientation facilitates compact PCB layouts, optimizing space and routing efficiency in electronic assemblies.
The 120943-1 model belongs to the Z-PACK HM series, a modular two-part interconnection system widely used for connecting daughter boards to motherboards or backplanes in industrial, electronic, and communication equipment.
This product is made in China and supplied new, ensuring high quality and performance standards. It is an ideal choice for engineers and designers requiring robust and reliable PCB Socket connectors for power and signal transmission.
Features a 1.5 mm pitch and three contact positions. Supports a current rating of 16 A and operating voltage of 250 V. Constructed with polyester housing and copper contacts plated with tin. Designed for right angle mounting on surface PCB boards.
Suitable for harsh environments with operating temperature range from -40°C to 110°C. Termination type is crimp for secure contact insertion. Compatible with Z-PACK HM series connectors for modular applications. Ideal for industrial and electronic equipment requiring robust board-to-board connections.
Made in China with new product condition ensuring quality and reliability. Explore additional connectors and components within the TE Connectivity product range on EnvMart to fulfill diverse electronic assembly and connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 16 A, making it suitable for demanding electronic applications.
The operating voltage for this model is 250 V, allowing it to be used in various electronic applications.
The contacts are arranged with a pitch size of 1.5 mm, which is standard for many PCB connections.
It features a polyester housing and copper contacts plated with tin for reliable electrical connection and corrosion resistance.
It is designed to function in harsh environments with an operating temperature range from -40°C to 110°C.
This model features three contacts arranged in a single row, suitable for various board-to-board connections.
The termination type is crimp, which allows for secure contact insertion and stable wire attachment.
Yes, it is compatible with Z-PACK HM series connectors, making it suitable for modular applications.
It is designed for right angle mounting on surface PCB boards, optimizing space in electronic assemblies.
The contacts are female, which is typical for board-to-board connection systems.
This product is made in China, ensuring adherence to quality and performance standards.
It is ideal for industrial and electronic equipment requiring robust board-to-board connections.
