| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN2N7C00D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 2.7nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 850mA |
| Pin Count | 2 |
| Maximum DC Resistance | 50mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 15GHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |

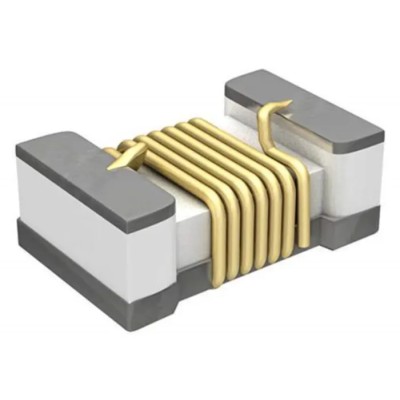

Murata LQW15AN2N7C00D is an unshielded wirewound surface mount inductor housed in a 0402 package designed for high frequency circuits requiring precise inductance and stable performance. Featuring a ferrite core and moulded construction, this inductor offers 2.7 nH inductance with a tight tolerance of ±0.2 nH and a minimum quality factor of 20, suitable for VHF and UHF applications.
The component supports a maximum DC current of 850 mA and exhibits a maximum DC resistance of 50 mΩ, optimizing power efficiency during operation. It is RoHS compliant, ensuring environmentally safe manufacturing standards. Operating temperatures range from -55°C to 125°C, providing robustness for industrial and commercial electronic devices.
This inductor is ideal for wireless telecommunications equipment, including Bluetooth, GSM, and WLAN circuitry where high resonance frequency and low tolerance inductance are critical. Its solder termination style and paper tape packaging make it compatible with automated PCB mounting equipment, enhancing production efficiency.
Compact 0402 case size for surface mount technology. Wirewound with ferrite core ensuring high performance. Maximum operating temperature of 125°C. Suitable for high frequency wireless communication applications. RoHS compliant for environmental safety.
Paper tape packaging for assembly automation. Low DC resistance of 50 mΩ for efficiency. Quality factor (Q) of 20 ensures minimal signal loss.
Commonly used in electronics manufacturing, this Murata Surface Mount Inductor supports efficient and reliable circuit designs in telecommunications and electronic instrumentation. Explore the Electronics & Electricals category on EnvMart for similar high-quality inductors and components designed for demanding industrial applications.
