| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 2mm |
| Model | LQM21PN1R0MC0D |
| Depth | 1.25mm |
| Packaging | Embossed Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 800mA |
| Pin Count | 2 |
| Maximum DC Resistance | 190mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 90MHz |
| Inductor Construction | Multilayer |

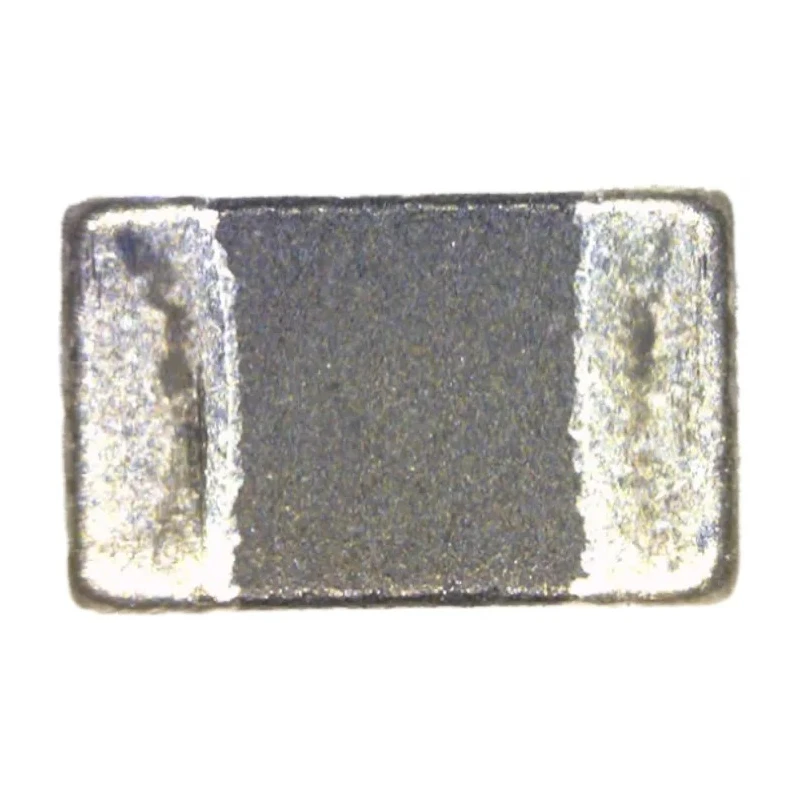

Murata LQM21PN1R0MC0D is a precision 0805 shielded multilayer surface mount inductor featuring a ferrite core with a nominal inductance of 1 μH and a tight ±2% tolerance. This miniature chip inductor measures 2 mm in length, 0.5 mm in height, and 1.25 mm in depth, supporting compact electronic circuit designs in demanding industrial and commercial applications.
Constructed with Murata's advanced multilayer process technology and magnetic materials, the LQM21PN1R0MC0D offers a maximum DC current rating of 800 mA and a low DC resistance of 190 mΩ, ensuring efficient performance with minimal power loss. Its magnetically shielded design significantly reduces electromagnetic interference, enhancing signal integrity in power and signal conditioning circuits.
The component is moulded and terminated via solder, suitable for automated surface mount assembly processes. Operating temperature spans from -55°C to 125°C, supporting use in harsh industrial environments including automotive and telecommunications sectors. The inductor complies with RoHS environmental standards.
Typical applications include filtering, power management, and noise suppression in electronic devices across industrial, telecommunications, computing, and consumer electronics. Compact 2.0 x 1.25 mm chip size facilitates space-saving PCB layouts.
High reliability ensured by Murata's proven multilayer technology. Magnetically shielded to minimize external interference effects. Wide operating temperature range meets industrial standard requirements. RoHS compliance supports environmentally responsible manufacturing.
Available in embossed tape packaging for seamless integration into automated production lines. This inductor supports efficient electronic device design requiring high performance in a miniature form factor.
Explore further Surface Mount Inductor models and electronic components in EnvMart catalog for optimized circuit design and manufacturing solutions.
