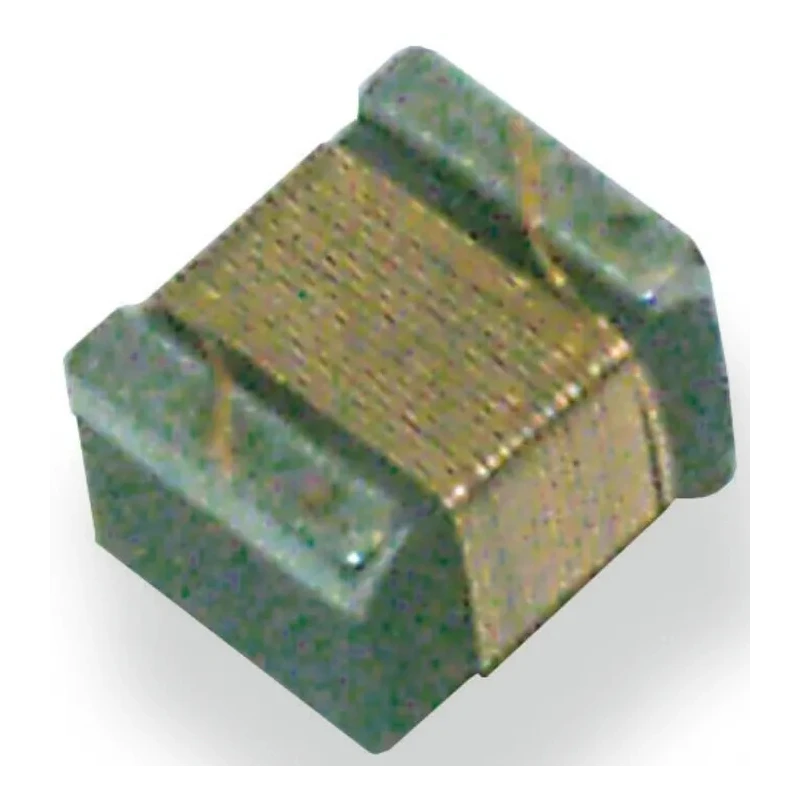

Murata Wirewound Surface Mount Inductor 6.8 nH ±5% 700 mA DC Current 0402 Package LQW15AN6N8J00D

Murata LQW15AN6N8J00D Wirewound Surface Mount Inductor offers a high precision 6.8 nH inductance with ±5% tolerance, housed in a compact 0402 package of 1 mm length, 0.5 mm height, and 0.6 mm depth. This inductor features a ferrite core and wirewound construction optimized for high frequency applications up to 6 GHz, making it suitable for VHF and UHF circuits.

Designed to handle a maximum DC current of 700 mA and a maximum DC resistance of 90 mΩ, it supports reliable operation within a wide temperature range from -55°C to 125°C. The component is RoHS compliant, with a solder termination style and moulded structure ensuring durability and ease of assembly.

This inductor is particularly suited for wireless telecommunications including Bluetooth, GSM, and WLAN devices where high resonance frequency and low tolerance are critical. The minimum quality factor of 25 guarantees efficient signal integrity in demanding electronic circuit designs.

The product is packaged in paper tape, compatible with automated pick and place machinery for efficient production environments. Made in Japan, this component adheres to stringent manufacturing standards ensuring consistent performance.

High quality wirewound design for VHF and UHF applications. Ferrite core for stable inductance and high resonance frequency. Maximum DC current rating of 700 mA with low resistance. Wide operating temperature range of -55°C to 125°C.

RoHS compliant with solder terminations and durable moulded construction. Compact 0402 package dimensions enable dense PCB layouts. Inductance tolerance ±5% with minimum Q factor of 25. Designed for wireless telecommunications such as Bluetooth and WLAN.

Explore the range of Surface Mount Inductors from Murata available at EnvMart to support your electronic and telecommunications projects with reliable components.
