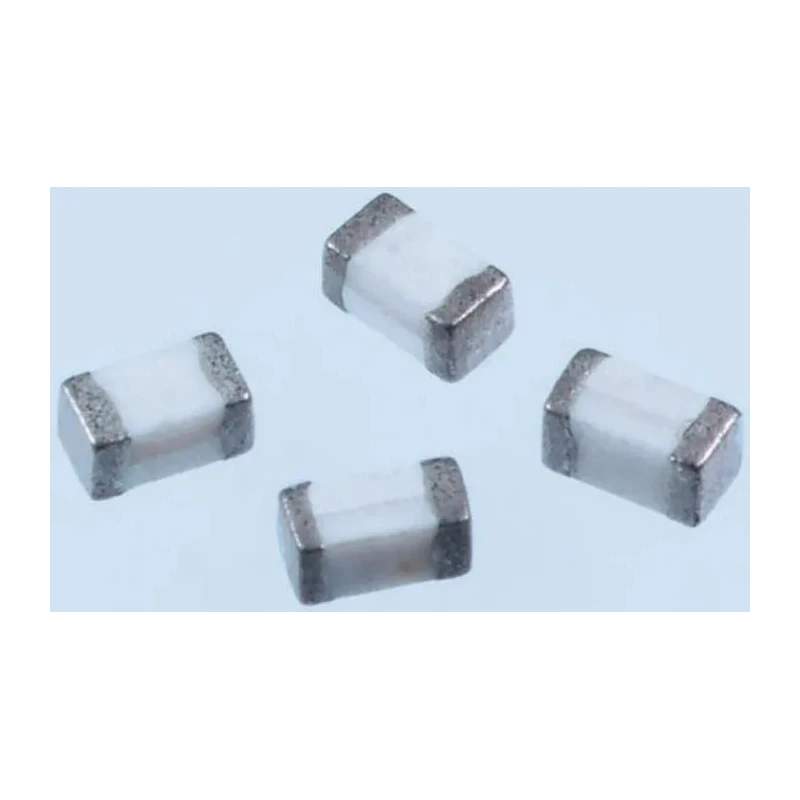

Murata Wirewound Surface Mount Inductor 8.2nH ±5% 300mA 0402 Package LQG15HS8N2J02D

Murata LQG15HS8N2J02D is a high-frequency wirewound surface mount inductor designed for reliable performance in a variety of electronic applications. It offers an inductance of 8.2nH with a tolerance of ±5%, making it suitable for precision RF circuit designs.

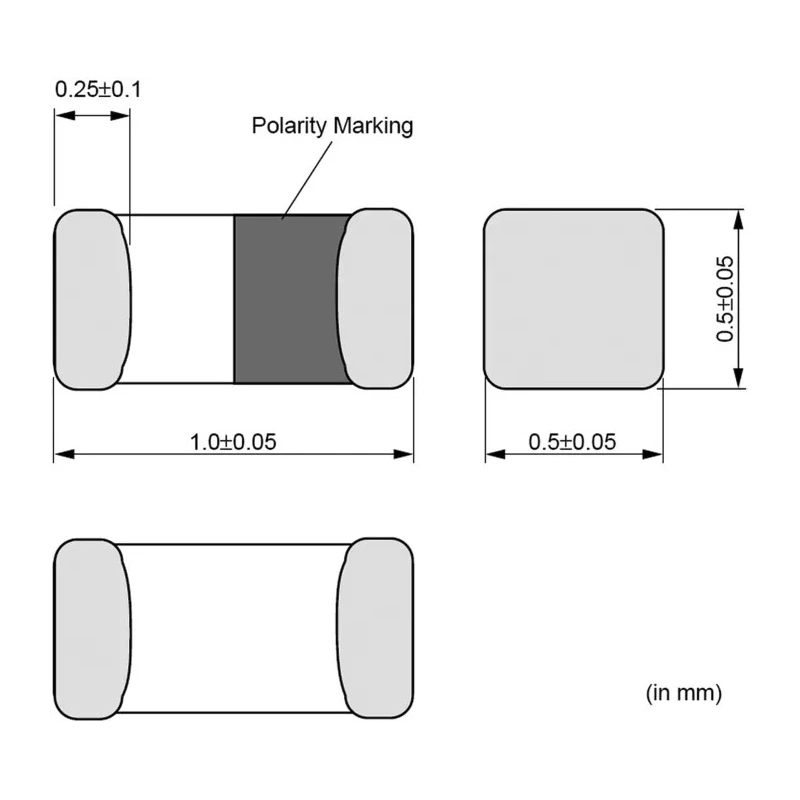

Manufactured with a 0402 package size, this inductor measures 1mm in length with a height and depth of 0.5mm, making it ideal for compact surface mount PCB assemblies. The device supports a maximum DC current of 300mA and maintains a low DC resistance of 240mΩ, ensuring low power loss and efficient current handling.

Rated for operating temperatures ranging from -55°C to 125°C, it withstands harsh thermal conditions while maintaining stable inductance and performance characteristics.

Its wirewound construction imparts high reliability and suitability for demanding environments, commonly used in chokes, WLAN networks, RF circuit matching, and mobile communication equipment resonance circuits. The unshielded design supports high-frequency signals up to a self-resonant frequency of 3.7GHz with a minimum quality factor of 8, balancing size, tolerance, and current rating.

The LQG15HS8N2J02D series features a moulded package with solder termination style optimized for surface mount technology (SMT), supplied on paper tape packaging for efficient automated mounting and assembly processes.

Designed for use in chokes, WLAN networks, and RF circuit matching. Compact 0402 package size with precise dimensions for PCB mounting. Efficient current handling with low DC resistance. Wide operating temperature range ensuring reliability in varying conditions.

Wirewound construction for high performance and durability. Supports high-frequency applications up to 3.7GHz. Minimum quality factor of 8 for effective RF performance. Packaging optimized for automated insertion on production lines.

This product is manufactured in Japan and meets the quality demands of advanced industrial, communications, and electronic component markets. For additional details and specifications, engineers and buyers can rely on Murata's extensive technical documentation and application support.
