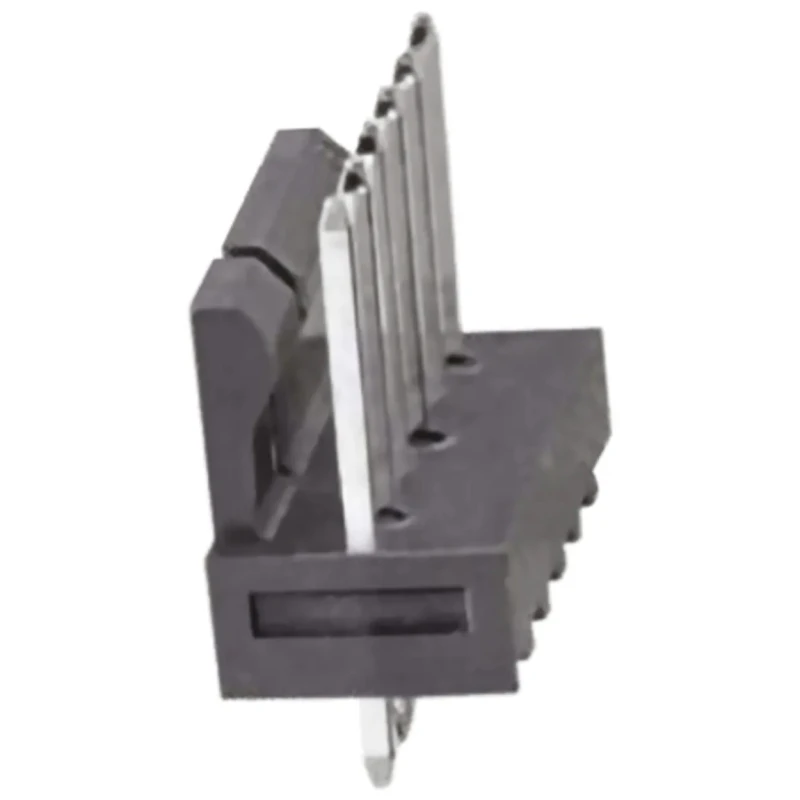

Molex KK 254 Series Straight Through Hole Pin Header, 6 Contact 2.54 mm Pitch 1 Row Unshrouded 171856-0006
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.34mm |
Key Features
- Supports up to 4A current rating.
- Constructed from brass contacts with tin plating for corrosion resistance.
- Housing made of high temperature thermoplastic withstands up to 105°C.
- Suitable for board-to-board and wire-to-board connections.
- Contact tail length measures 2.34 mm for secure soldering.
- Recommended PCB thickness is 1.60 mm for optimal performance.
- Operating temperature range from -40°C to 105°C.
- Unshrouded design allows easy access for connection and inspection.
Product Description
Molex 171856-0006 KK 254 Series Straight Through Hole Pin Header is a high-quality connector designed for reliable electronic connections in PCB applications. Featuring 6 male contacts arranged in a single row with a standard 2.54 mm pitch, this pin header ensures stable board-to-board or wire-to-board connectivity.
Manufactured with brass contacts plated in tin, it offers excellent conductivity and corrosion resistance. The housing is made from high temperature thermoplastic material capable of withstanding a maximum operating temperature of 105°C, ensuring durability even under demanding thermal conditions.
This through hole mount connector is unshrouded, providing easy access to each pin for soldering and maintenance. The tail pin length is precisely 2.34 mm to facilitate secure solder joints on a recommended PCB thickness of 1.60 mm.
The pin header supports a current rating of up to 4A and an operating voltage of 250V, making it suitable for a variety of electronic and power applications. It is compatible with KK 254 Reflow Process Compatible (RCP) Friction Lock Headers designed to endure soldering temperatures up to +260°C without needing drying treatments.
Supports up to 4A current rating. Brass contacts with matte tin plating inhibit tin whiskering. High temperature thermoplastic housing rated to 105°C. Suitable for board-to-board and wire-to-board connector systems. Straight orientation with through hole mounting.
Unshrouded design facilitates easy access. Operating temperature range: -40°C to 105°C. Contact tail pin length of 2.34 mm. Recommended PCB thickness of 1.60 mm.
This pin header is ideal for use in industrial electronics, manufacturing equipment, laboratory instrumentation, and prototyping of PCB designs requiring robust and reliable connections.
Explore the extensive range of Molex connectors and components available at EnvMart to support your electronic assembly and production needs.
Explore more products in our PCB Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 4A.
The maximum operating temperature for this pin header is 105°C.
The contacts in this pin header are arranged with a pitch of 2.54 mm.
This connector uses a through hole mounting type.
The recommended PCB thickness for this model is 1.60 mm.
It is constructed with brass contacts that are plated with tin, and the housing is made of high temperature thermoplastic.
The contact tail length measures 2.34 mm, facilitating secure soldering.
The operating temperature range for this pin header is from -40°C to 105°C.
This model is suitable for both board-to-board and wire-to-board connections.
This pin header features 6 male contacts arranged in a single row.
This connector is unshrouded, allowing easy access for connection and inspection.
It supports an operating voltage of 250V.
