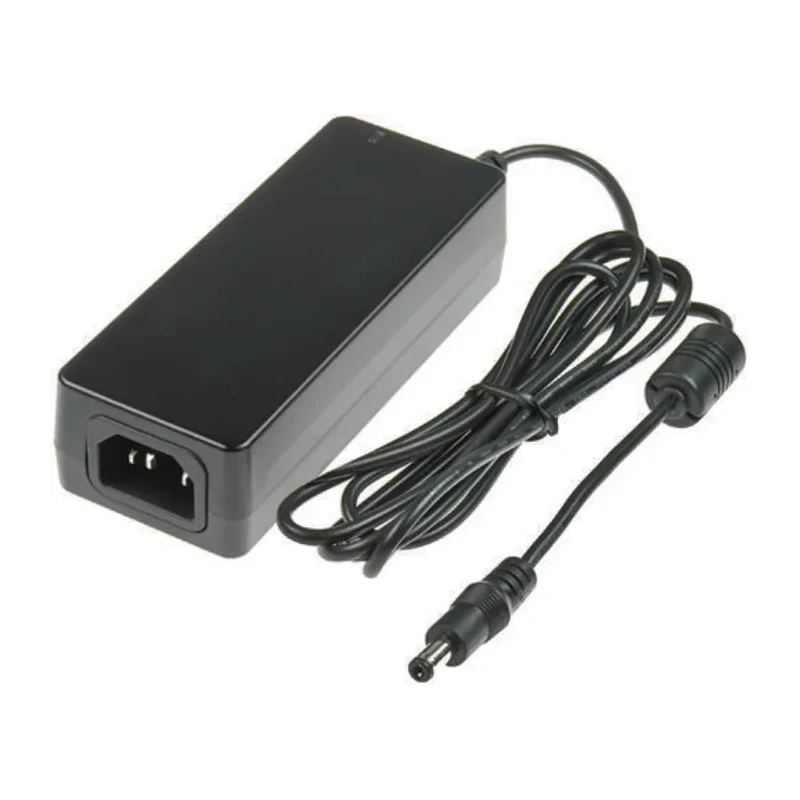

MEAN WELL 40W to 60W ErP Single Output Switch Mode Desktop Medical AC/DC Adapter IEC Output 840 mA, 48 V DC GSM40A48-P1J

MEAN WELL GSM40A48-P1J is a 40W to 60W ErP single output switch mode desktop AC/DC adapter designed to meet the stringent demands of medical equipment applications. It features an IEC output delivering 840 mA current at 48 V DC, making it suitable for patient-contact devices requiring ultra-low leakage current below 100 μA and high energy efficiency. The power supply supports a wide input voltage range from 80 to 264 VAC, ensuring global compatibility.

This medical power supply complies with international safety standards including UL, CUL, TUV, CB, FCC, and CE certifications. It also conforms to medical safety standards ANSI/AAMI ES60601-1, TUV EN60601-1, and 60601-1-11, thus guaranteeing safe and reliable operation in healthcare environments. The unit is ErP step 2 (Level V) and EISA 2007 compliant, offering reduced energy consumption with no load power consumption under 0.1W.

Equipped with a 3-pole IEC 320-C14 AC inlet plug and a 1500 mm cable length, this adapter affords ease of installation and secure connection. The fully enclosed UL94V-0 rated plastic case provides effective protection with Class I grounding, enhancing user safety. Cooling is achieved by free air convection, enabling operation within ambient temperatures ranging from -30°C up to +60°C.

Robust protection mechanisms include safeguards against short circuits, overload, over voltage, and over temperature (specific to GSM60 model variants). The adapter features an LED indicator for power-on status and an optional lock type DC plug for enhanced security.

This adapter series targets industrial, medical, laboratory, and commercial applications where reliable, efficient, and safe power supply is crucial. Its compact desktop form factor is ideal for use in portable medical devices, home healthcare equipment, and other sensitive electronic systems requiring low leakage current.

Choosing the MEAN WELL GSM40A48-P1J ensures compliance with the latest energy saving and medical safety standards while delivering stable and efficient power for critical medical instruments.

Explore more in the AC/DC Adapters category for additional compatible power supplies and accessories on EnvMart. High efficiency single output switch mode desktop power supply. Complies with international medical safety standards with low leakage current below 100 μA.

Wide input voltage range of 80 to 264 VAC full range. ErP step 2 (Level V) compliant with low no load power consumption below 0.1W. Features IEC 320-C14 plug and 1500 mm cable length for versatile connectivity. Protected against short circuit, overload, over voltage, and over temperature (for GSM60 model).

Constructed with UL94V-0 rated fully enclosed plastic case with Class I earth ground. Cooling through free air convection and capable to operate from -30 to +60°C ambient temperature.
