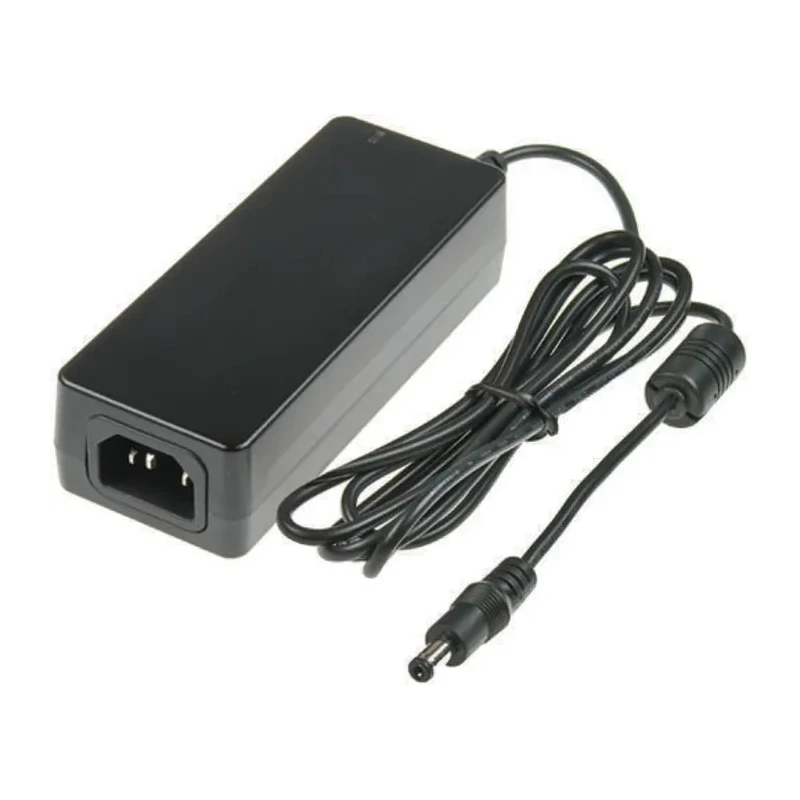

MEAN WELL 40 to 60W Medical AC/DC Adapter IEC 264V AC, 6 A Output, 5 V DC GSM60A05-P1J

MEAN WELL GSM60A05-P1J is a high-quality medical grade AC/DC adapter delivering 40 to 60 watts of power with a 5 V DC output at 6 A, designed to meet rigorous international medical safety and energy efficiency standards. It operates on a full-range input voltage from 100 to 264 V AC, making it suitable for global applications in medical and healthcare settings.

This adapter offers a low leakage current under 100 μA and low no-load power consumption below 0.1 W, crucial for patient-contact devices. Its UL94V-0 rated plastic enclosure provides electrical insulation and protection, while the Class I power design ensures earthing for safety.

The unit complies with multiple certifications including UL, CUL, TUV, CB, FCC, and CE and meets ANSI/AAMI ES60601-1, TUV EN60601-1, 60601-1-11 standards, endorsing its use in diverse medical equipment applications such as portable healthcare devices, home healthcare equipment, and electrical systems requiring minimal power loss.

The GSM60 series features protections against short circuit, overload, over voltage, and over temperature, ensuring reliable and safe operation. It cools using free air convection and operates smoothly across a wide ambient temperature range from -30°C to +60°C. The adapter includes a 3-pole IEC 320-C14 AC inlet and a 1000mm cable length for convenient installation.

High efficiency up to 91 percent and compliance with Level V (ErP step 2) and EISA 2007 energy standards. Medical grade low leakage current and multiple safety certifications. Full range input from 100 to 264V AC supports global compatibility.

Enclosed plastic case with UL94V-0 rating provides robust electrical safety. Protections for short circuit, overload, over voltage, and temperature enhance reliability. LED power indicator simplifies operational monitoring.

Meets ANSI/AAMI and TUV medical safety standards for critical medical applications. Class I power unit with earth grounding ensures patient safety.

This AC/DC adapter is ideal for industrial, medical, laboratory, and commercial applications requiring safe, efficient, and reliable power conversion. It is part of the GSM60 series known for its green, energy-saving design and broad voltage outputs, suitable for a variety of specialized equipment.
