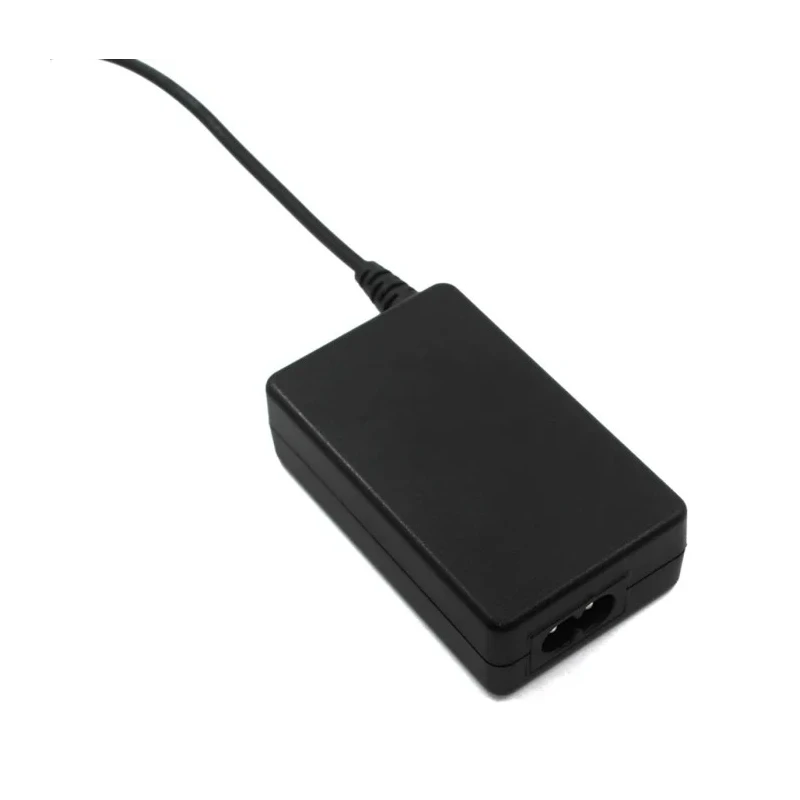

RS PRO 12.5W 12V DC Output AC-DC Converter Power Supply Regulated 2.1 x 5.5 x 12 mm Connector 139-2341
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 12.5W |
| Efficiency | 80.58% |
| Length | 97mm |
| Model | 139-2341 |
| Depth | 31mm |
| Cable Length | 1.5m |
| Width | 45mm |
| Wire Length | 2.05m |
| Series | RS PRO |
| Maximum Operating Temperature | 40°C |
| Sub Type | AC-DC Converter Power Supplies |
| Load Regulation | 5 % |
| Minimum Operating Temperature | -20°C |
| Input current | 4A maximum |
| Number of outputs | 1 |
| Ripple and Noise | 100mV |
| DC Output Current | 520mA |
| Maximum Input Voltage | 240V ac |
| Output Voltage | 12V dc |
| Regulation | ±1% line, ±5% load |
| Standards/Approvals | IEC/EN 61558 |
| Minimum Input Voltage | 90V ac |
| Output Connector Type | 2.1 x 5.5 x 12 mm |
| Input Connector Type | IEC 320-C8 |
| Adapter Current | 1A |
| Energy Efficiency Level | V |
| RS PRO AC/DC AdapterBrand | RS PRO |
| Regulated/Unregulated | Regulated |
| High efficiency | consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP |
| Input voltages | 100 to 240V AC |
| Input Frequency Range | 50/60Hz |
| DC output voltages | 24V DC |
| DC output cord AWG | 18AWG, normal |
| No load input power (240V AC) | 0.3W |
| Inrush current (240V AC) | 30A cold 25°C |
| Efficiency level | VI |
Key Features
- Operates with input voltage range of 90 to 240V AC and frequency of 50/60Hz.
- Features 1A adapter output current with regulated voltage for stable performance.
- High efficiency rated at 80.58% ensuring low power loss.
- Includes built-in protection against short circuit, over-load, over-voltage, over-current, and over-temperature conditions.
- Compact dimensions with length 97mm, width 45mm, and depth 31mm for convenient installation.
- Equipped with 1.5m cable length and IEC 320-C8 input connector for flexible connectivity.
- Operating temperature range from -20°C to 40°C suits diverse environments.
- Compliance with IEC/EN 61558 standards assures safety and reliability.
Product Description
RS PRO 139-2341 AC-DC Converter Power Supply is a high-quality, regulated power adapter designed to provide stable 12V DC output with a power rating of 12.5W. Equipped with a 2.1 x 5.5 x 12 mm output connector and 1.5 meters of cable, this unit is ideal for powering consumer electronic products, point of sale (POS) machines, and printers.
The adapter supports wide input voltage from 90 to 240V AC, compatible with standard global power supplies, along with input frequencies of 50 to 60Hz. Its robust design includes multiple protections such as short-circuit protection, over-load protection, over-voltage protection, over-current protection, and thermal shutdown with auto-recovery functionality to prevent damage and ensure safe operation.
With dimensions compactly sized at 97 mm length, 45 mm width, and 31 mm depth, the power supply offers a lightweight and convenient plug-in form factor. It achieves high conversion efficiency above 80%, minimizing energy waste and meeting US Energy Star and CEC standards among others.
Operating temperature range from -20°C to 40°C allows use in various industrial, commercial, and laboratory environments. The product complies with IEC/EN 61558 certification, testifying its quality and safety standards.
Operates from 90-240V AC input voltage at 50-60Hz frequency. Provides 12V regulated DC output with 1A maximum current. High conversion efficiency of 80.58% reduces energy loss. Includes built-in protections for short circuit, over-load, over-voltage, over-current, and over-temperature.
Compact size and lightweight design for easy integration. Conforms to IEC/EN 61558 standards for safety and reliability. Suitable for powering printers, POS machines, and electronic products.
This RS PRO AC/DC adapter is a reliable and efficient power supply solution suitable for industrial, commercial, and laboratory use. It is engineered for stable operation and durability, making it an ideal choice for powering a wide variety of low-voltage devices.
Explore more AC/DC Adapters and power supply units in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a maximum output current of 1A.
It operates with an input voltage range of 90 to 240V AC, making it compatible with standard global power supplies.
The power adapter has compact dimensions of 97mm in length, 45mm in width, and 31mm in depth.
It has a high efficiency rating of 80.58%, which helps to minimize energy loss during operation.
This unit includes built-in protections against short circuits, overload, over-voltage, over-current, and over-temperature conditions.
The operating temperature range is from -20°C to 40°C, suitable for various environments.
It is equipped with a 2.1 x 5.5 x 12 mm output connector for compatibility with various devices.
It supports an input frequency range of 50 to 60Hz.
It complies with IEC/EN 61558 standards, ensuring safety and reliability.
The maximum input current for this model is 4A.
