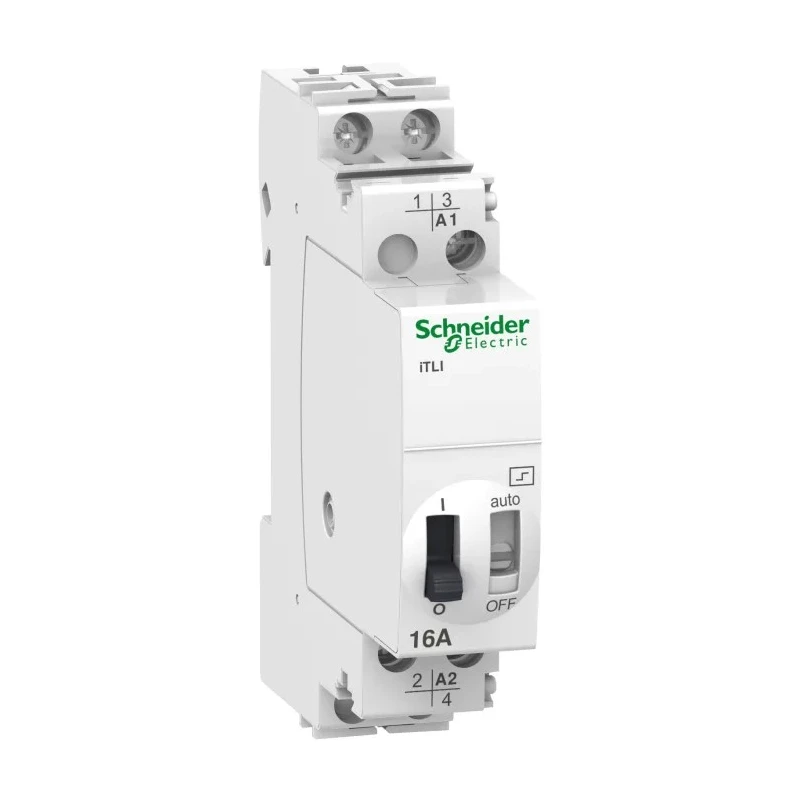

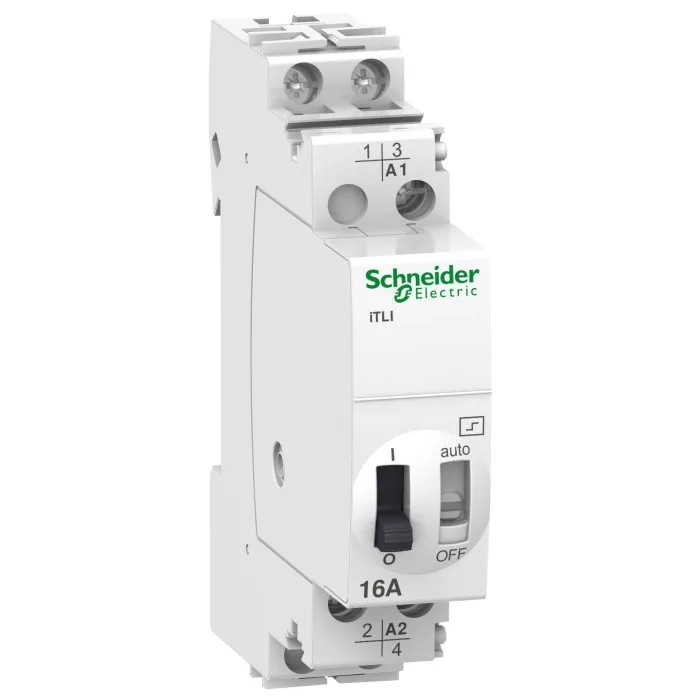

Schneider Electric DIN Rail Power Relay Acti9 iTL, Coil Voltage 12, 24V ac/dc, 16A Switching Current, SPDT Contact A9C30115

Schneider Electric A9C30115 DIN Rail Power Relay, part of the Acti9 iTL series, operates with coil voltages of 12 and 24V ac/dc and a switching current of 16A. This relay is engineered for reliable impulse control in lighting circuit applications, including incandescent, fluorescent, low-voltage halogen, and discharge lamps. Its SPDT contact configuration allows flexible circuit switching, while its design supports DIN rail mounting for convenient installation in industrial, commercial, and residential electrical panels.

The relay supports a switching voltage of up to 250V, making it compatible with diverse electrical loads. It features two stable mechanical positions with zero energy consumption during maintained states, promoting energy efficiency. This impulse relay's pole closure is triggered by a coil impulse and opens upon the subsequent impulse, enabling control by multiple pushbuttons without wiring complexity.

With compact physical dimensions (86mm length, 71mm height, and 18mm width), the device fits into standard electrical enclosures while complying with critical environmental and safety standards like RoHS Directive, EN 15804, ISO 14025, and ISO14001, reflecting Schneider Electric's commitment to sustainability and quality. The Byggvarubedömningen verification further attests to its environmental performance.

The relay is designed for precise lighting control using impulse signals. Supports multiple pushbutton control without energy loss during steady states. Facilitates energy savings with zero coil consumption in stable positions.

Compliant with European and international environmental directives. Robust construction ensures long service life in demanding industrial environments.

Applications for this relay span industrial automation, commercial building lighting systems, and any electrical panel requiring efficient and environmentally responsible relay control solutions. Schneider Electric's DIN Rail Power Relay ensures dependable operation in impulse-controlled circuits, supporting sustainable manufacturing and installation practices.

For detailed technical designs and PCB integration, users can utilize Schneider Electric's DesignSpark software, accessible for download alongside 3D models and mechanical schematics. This product is part of a comprehensive portfolio supporting advanced electrical control and automation needs.
