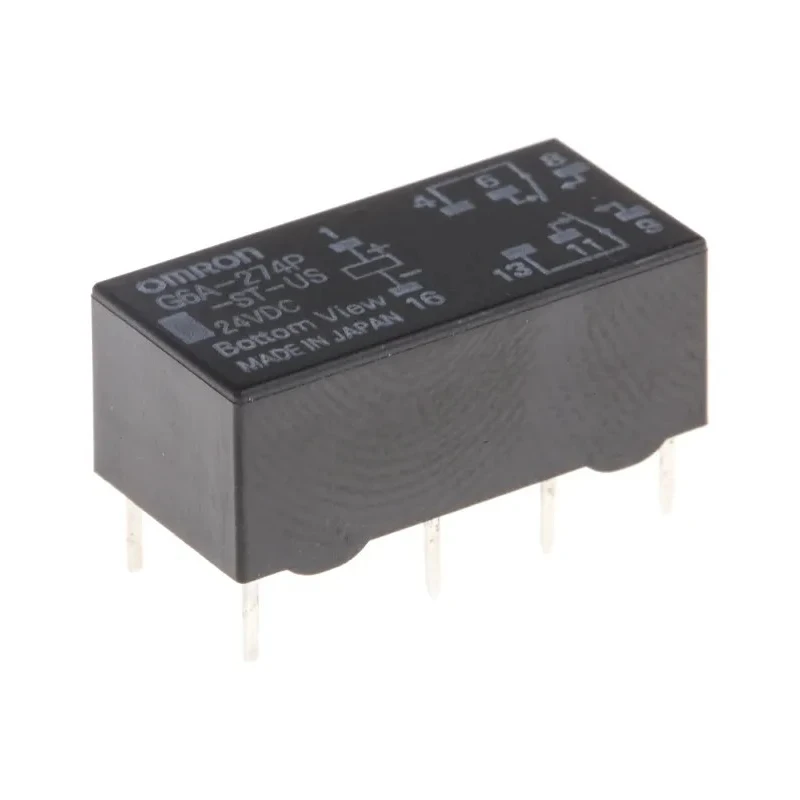

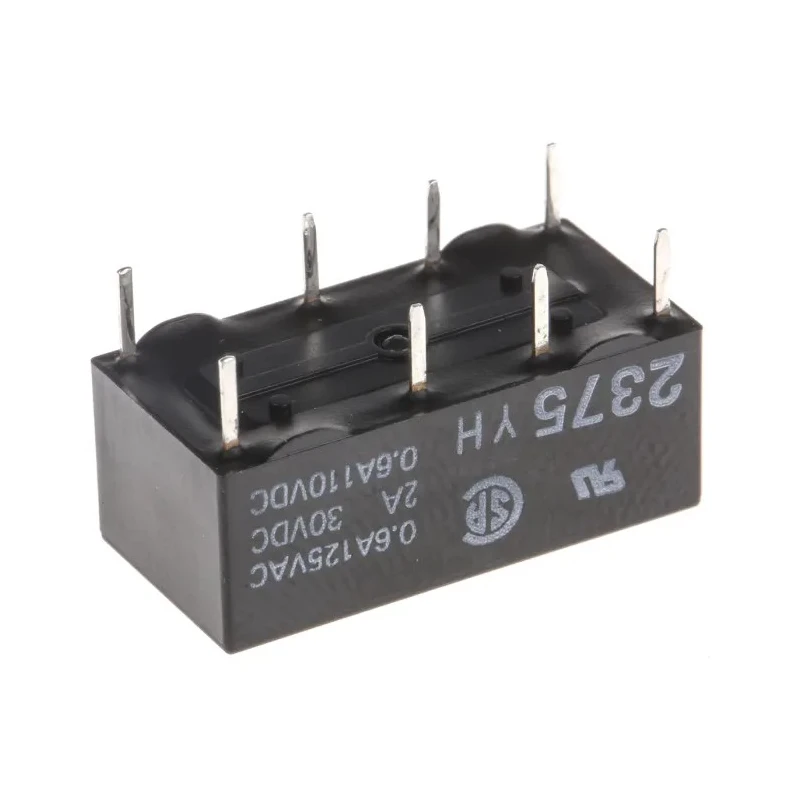

Omron PCB Signal Relay, 24V DC Coil Voltage, 2A Switching Current, DPDT Contact Configuration G6A-274P-ST-US-24DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8mm |
| Length | 20.2mm |
| Model | G6A-274P-ST-US-24DC |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6A |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- The relay is designed for PCB mounting with PCB terminals for easy integration.
- It supports switching AC voltage up to 250V and DC voltage up to 220V.
- Coil resistance is 2880 ohms with a coil power of 200mW, ensuring low power consumption.
- Contacts are gold plated to provide excellent conductivity and durability.
- The relay operates reliably within a temperature range from -40°C to 70°C.
- Its compact dimensions are 20.2 mm length, 10.1 mm width, and 8 mm height.
- This model is part of the G6A series, known for fully sealed construction and low magnetic leakage.
- Impulse withstand voltage of 1500V makes it ideal for telecommunications equipment.
Product Description
Omron G6A-274P-ST-US-24DC PCB Signal Relay is a high-quality relay designed for reliable signal switching applications in electronics and electrical systems.
This relay operates with a 24V DC coil voltage and supports a switching current of 2A, making it suitable for moderate load signal switching in industrial control, telecommunications, and automation equipment.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing versatile contact switching capabilities, and is designed for PCB mounting using PCB terminals for seamless circuit board integration.
The coil resistance is 2880 ohms with a coil power consumption of just 200mW, providing energy-efficient operation. Contacts are gold plated, ensuring excellent electrical conduction and resistance to wear and corrosion.
With operating temperature tolerance from -40°C to 70°C, this relay is suitable for various environmental conditions. The compact size of 20.2 mm length, 10.1 mm width, and 8 mm height makes it ideal for space-constrained applications.
The model belongs to the G6A series, characterized by a fully sealed design for protection against dust and moisture and low magnetic leakage, which reduces interference in sensitive electronic circuits.
The relay meets RoHS standards and is manufactured in Japan, underlining its quality and compliance with international safety and environmental regulations. The relay is designed for PCB mounting with PCB terminals for easy integration.
Supports switching AC voltage up to 250V and DC voltage up to 220V. Impulse withstand voltage of 1500V for enhanced durability against voltage spikes. Gold plated contacts improve contact reliability and lifespan. Wide operating temperature range from -40°C to 70°C for versatile industrial use.
Compact dimensions aid integration in tight electronic assemblies. Fully sealed construction reduces risk of contamination and enhances durability. Ideal for telecommunications, industrial automation, and electronic control systems.
RoHS compliant and manufactured according to high-quality standards in Japan.
This Omron PCB Signal Relay G6A-274P-ST-US-24DC is an excellent choice for engineers and technicians requiring high reliability and performance in Signal Relay applications. Browse EnvMart's Electronics & Electricals category for more relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It supports a maximum switching current of 2A.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The relay has dimensions of 20.2 mm in length, 10.1 mm in width, and 8 mm in height.
The coil resistance is 2880 ohms.
It operates reliably within a temperature range from -40°C to 70°C.
This model uses PCB terminals for easy integration into circuit boards.
It supports switching AC voltage up to 250V and DC voltage up to 220V.
The coil power consumption is 200mW.
The contacts are gold plated, which enhances conductivity and durability.
Yes, it is RoHS compliant, ensuring it meets environmental regulations.
This relay is manufactured in Japan.
