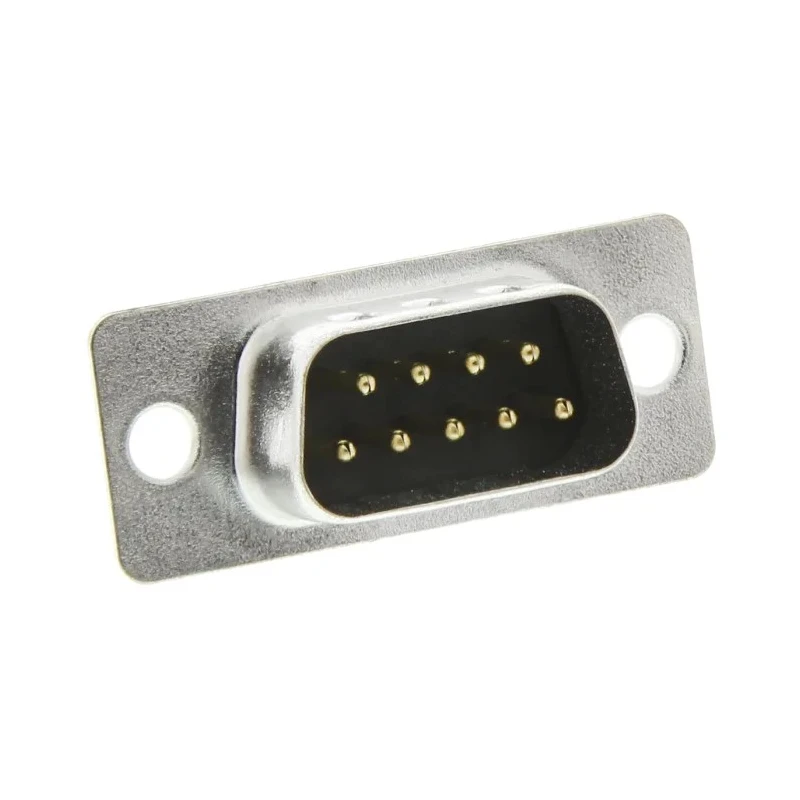

MH Connectors D-Sub 9 Way Straight 2.77 mm Pitch Cable Solder Cup Connector MHDB9SP
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | MH Connectors |
| Orientation | Straight |
| Current | 5A |
| Model | MHDB9SP |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | MHDB |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
| MH Connectors MHDM 9 Way Straight 2.77 mm Pitch Cable D-Sub ConnectorBrand | MH Connectors |
Key Features
- Features 9 male contacts for robust signal transmission.
- Supports current rating of 5A suitable for efficient power handling.
- Constructed with brass contacts plated with gold over nickel for enhanced conductivity and durability.
- Steel housing ensures mechanical strength and shielding.
- Designed for solder termination to provide secure cable connections.
- Operates safely within voltage rating of 250V.
- Wide operating temperature range from -55°C to 105°C for varied environments.
- Connector shell size E with 2.77 mm pitch spacing between contacts.
Product Description
MH Connectors MHDB9SP is a 9 way straight D-Sub cable connector with 2.77 mm pitch spacing, designed for secure solder cup termination of cables. It features male brass contacts plated with gold over nickel to ensure reliable electrical performance and resistance to corrosion. The connector shell is made of durable steel, providing mechanical robustness and shielding against EMI.
This connector supports a current rating of 5A and is rated for voltages up to 250V, making it suitable for various power and signal transmission applications in electronics and industrial equipment.
The operating temperature range from -55°C to 105°C enables use in harsh environments, including industrial, automation, and instrumentation fields.
Its construction complies with MHDB series standards, ensuring compatibility with corresponding components and systems. The solder type termination enables secure cable attachment, favored in assembly and repair scenarios.
9 male contacts enable multi-signal or multi-power connections. Gold over nickel plating enhances contact reliability and reduces oxidation. Steel housing shields against electrical noise and provides mechanical protection.
2.77 mm pitch ensures compatibility with specified D-Sub interface dimensions. Wide temperature tolerance expands usability across various industrial settings. Solder termination type enhances connection security and durability.
This MH Connectors MHDB9SP D-Sub Connector is ideal for use in power connectors, electronic components, telecommunications equipment, test and measurement devices, and other industrial electrical applications. The connector's robust design supports demanding operational environments requiring stable and durable electrical connections.
Explore more connectors and components in the Electronics & Electricals category on EnvMart for your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MHDB9SP connector supports a current rating of 5A, making it suitable for efficient power handling applications.
This model is rated for voltages up to 250V, ensuring safe operation in various electrical applications.
It features brass contacts plated with gold over nickel for enhanced conductivity, and the housing is made of durable steel for mechanical strength.
The connector operates safely within a temperature range of -55°C to 105°C, allowing use in varied environments.
This connector has 9 male contacts, enabling multi-signal or multi-power connections.
It utilizes a solder termination type, providing secure cable connections favored in assembly and repair scenarios.
The contact pitch spacing for the MHDB9SP is 2.77 mm, ensuring compatibility with specified D-Sub interface dimensions.
The connector features a straight orientation, designed for easy integration into various setups.
The connector's construction complies with MHDB series standards, ensuring compatibility with corresponding components and systems.
The MHDB9SP connector is manufactured in China, as indicated by its country of origin.
It features a steel housing that provides mechanical robustness and shielding against electromagnetic interference (EMI).
