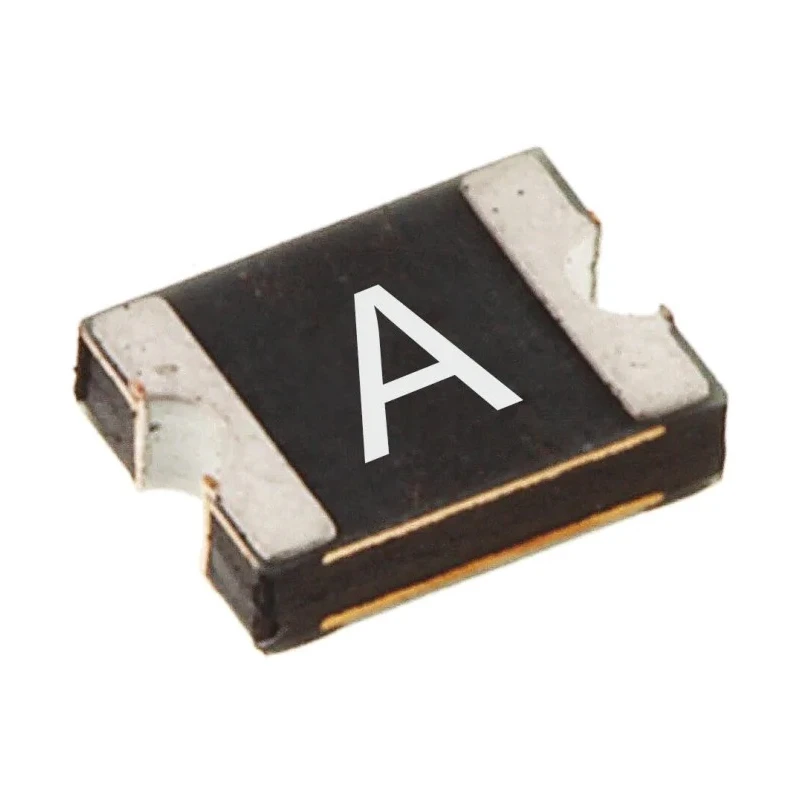

Littelfuse 0.25 A Resettable Fuse 16V DC Surface Mount Overcurrent Protection 1206L025YR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 16V dc |
| Brand | Littelfuse |
| Height | 1mm |
| Length | 3.5mm |
| Model | 1206L025YR |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | 1206L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Trip Current | 0.5A |
| Power Dissipation | 0.6W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 0.08s |
| Hold Current | 0.25A |
| Minimum Resistance | 0.55Ω |
| Maximum Resistance | 2.3Ω |
Key Features
- Offers rapid switching from low to high resistance under overload conditions.
- Automatic reset feature supports thousands of cycles without maintenance.
- Compact 1206 package size ideal for space-constrained applications.
- Constructed with tin plated copper terminals for reliable connectivity.
- Wide operating temperature range from -40°C to 85°C ensures device reliability.
- Power dissipation rating of 0.6W suitable for various electronic circuits.
- Complies with RoHS standards for environmental safety.
- Ideal for use in security systems, power supplies, automotive and medical equipment.
Product Description
Littelfuse 1206L025YR resettable fuse is a compact surface mount device designed to provide reliable overcurrent protection for electronic circuits running on 16V DC with a hold current of 0.25A. This 1206L series fuse automatically trips within 0.08 seconds at a trip current of 0.5A to prevent damage from excess current.
The fuse features a small footprint with dimensions 3.5mm length, 1.8mm width, and 1mm height, making it perfect for high-density circuit board applications. Its tin plated copper terminals ensure excellent electrical conductivity and solderability on PCBs.
Designed for maintenance-free automatic reset, the fuse can endure thousands of trip cycles, returning to low resistance state once the fault clears and power is removed. This eliminates the need for fuse replacement, enhancing reliability and reducing downtime.
The device operates efficiently between -40°C and 85°C ambient temperatures, supporting a variety of environments. It dissipates up to 0.6W of power during operation and maintains resistance between 0.55Ω minimum and 2.3Ω maximum under rated conditions.
Certified RoHS compliant, the Littelfuse 1206L025YR fuse suits critical industrial and commercial applications including security systems, power supplies, transformers, automotive electronics, medical devices, instrumentation, control systems, computers, peripherals, audiovisual and telecommunications equipment.
Rapid response to overcurrent with a 0.08 second trip time. Maintenance-free operation with automatic reset capability. Compact 1206 package ideal for space-saving designs. Wide temperature tolerance ensuring environmental resilience.
RoHS compliant and environmentally safe. High current rating of 100A suitable for demanding circuits. Reliable tin plated copper terminal material for durability. Used broadly in industrial, automotive, and medical electronics.
This Littelfuse Resettable Fuse supports enhanced circuit protection in demanding electrical, automation, industrial, and commercial environments. Explore our broad selection of circuit protection components through EnvMart for best-in-class quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating is 0.25A, which indicates the maximum continuous current the fuse can handle without tripping.
The trip current for the Littelfuse 1206L025YR is 0.5A, meaning it will trip and interrupt the circuit when the current exceeds this value.
This model trips within 0.08 seconds when an overload condition occurs, providing rapid response to overcurrent situations.
The dimensions are 3.5mm in length, 1.8mm in width, and 1mm in height, making it suitable for high-density circuit board applications.
The maximum operating temperature is 85°C, allowing it to function effectively in various environments.
It is rated for 16V DC, which is suitable for a variety of electronic circuits.
The power dissipation rating is 0.6W, indicating how much power the fuse can safely dissipate during operation.
The fuse features tin plated copper terminals, which ensure reliable connectivity and solderability on PCBs.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The minimum resistance is 0.55Ω under rated conditions, which is important for understanding its performance in a circuit.
This model is suitable for various applications including security systems, power supplies, automotive electronics, and medical devices.
The package type is a reel, which is common for surface mount devices and facilitates easy handling during assembly.
