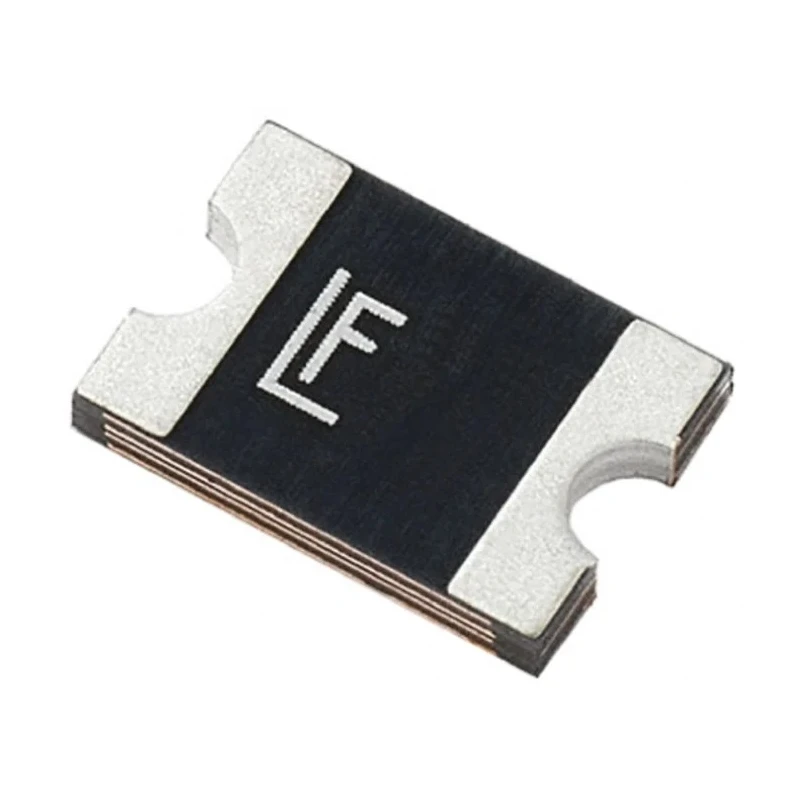

Littelfuse 1.1 A Resettable Fuse 33V dc Surface Mount Overcurrent Protection 2920L100PR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 33V dc |
| Brand | Littelfuse |
| Height | 1mm |
| Length | 7.98mm |
| Model | 2920L100PR |
| Width | 5.44mm |
| Current Rating | 40A |
| Series | 2920L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 2920 |
| Trip Current | 2.2A |
| Power Dissipation | 1.5W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 0.5s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.12Ω |
| Maximum Resistance | 410mΩ |
Key Features
- Offers automatic resettable protection for electrical circuits against overloads.
- Designed to switch from low to high resistance under short circuit or overload conditions.
- Small size reel packaging suits high-volume assembly.
- Constructed with tin plated copper terminals for reliable conductivity.
- Maintains performance over a temperature range of -40°C to 85°C.
- Power dissipation rating of 1.5W ensures stable operation.
- Conforms to RoHS standards for environmental compliance.
- Ideal for automotive, medical, instrumentation, and telecommunication applications.
Product Description
Littelfuse 2920L100PR resettable fuse delivers reliable overcurrent protection with a hold current of 1.1 A and a dc voltage rating of 33 volts. This surface mount fuse is designed for applications where space is constrained and automatic resettable protection is needed.
The 2920L series fuse switches rapidly from low resistance to a high resistance state during electrical faults such as overloads or short circuits. It automatically resets once the fault condition clears and power is removed, enabling maintenance-free operation for thousands of cycles.
Constructed with tin plated copper terminals, the fuse ensures excellent electrical conductivity and durability. The fuse features a compact form factor with a length of 7.98 mm, width of 5.44 mm, and height of 1 mm, suitable for surface mount PCB assembly.
Operable over a temperature range from -40°C to 85°C, it dissipates power up to 1.5W and maintains reliable performance. Its trip current is specified at 2.2 A with a current rating of 40 A.
This component is RoHS compliant, making it environmentally friendly and safe for use in various electronics and electrical systems.
Applications include use in automotive equipment, medical devices, instrumentation and control gear, security systems, power supplies, transformers, audio visual equipment, computers, and telecommunication devices.
Automatic resettable overcurrent protection. Compact surface mount design. Wide temperature operating range. Tin plated copper terminals ensure conductivity. Compliance with RoHS environmental standards. Suitable for automotive and medical applications.
High reliability for instrumentation and control systems. Power dissipation of 1.5 watts. Series 2920L for consistent performance. Explore a broad range of Resettable Fuses and related circuit protection devices on EnvMart for industrial, electronic, and electrical engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of the Littelfuse 2920L100PR is 1.1 A.
This model has a maximum voltage rating of 33 V dc.
The trip current for the 2920L100PR is specified at 2.2 A.
The dimensions of this fuse are 7.98 mm in length, 5.44 mm in width, and 1 mm in height.
The power dissipation rating of this model is 1.5 W.
It operates within a temperature range of -40°C to 85°C.
The fuse is constructed with tin plated copper terminals for reliable conductivity.
During overload conditions, it switches from low resistance to a high resistance state and automatically resets once the fault condition clears.
Yes, the Littelfuse 2920L100PR conforms to RoHS standards for environmental compliance.
This fuse is suitable for applications in automotive equipment, medical devices, instrumentation, and telecommunication devices.
The time to trip for the 2920L100PR is 0.5 seconds.
The minimum resistance is 0.12Ω and the maximum resistance is 410mΩ.
