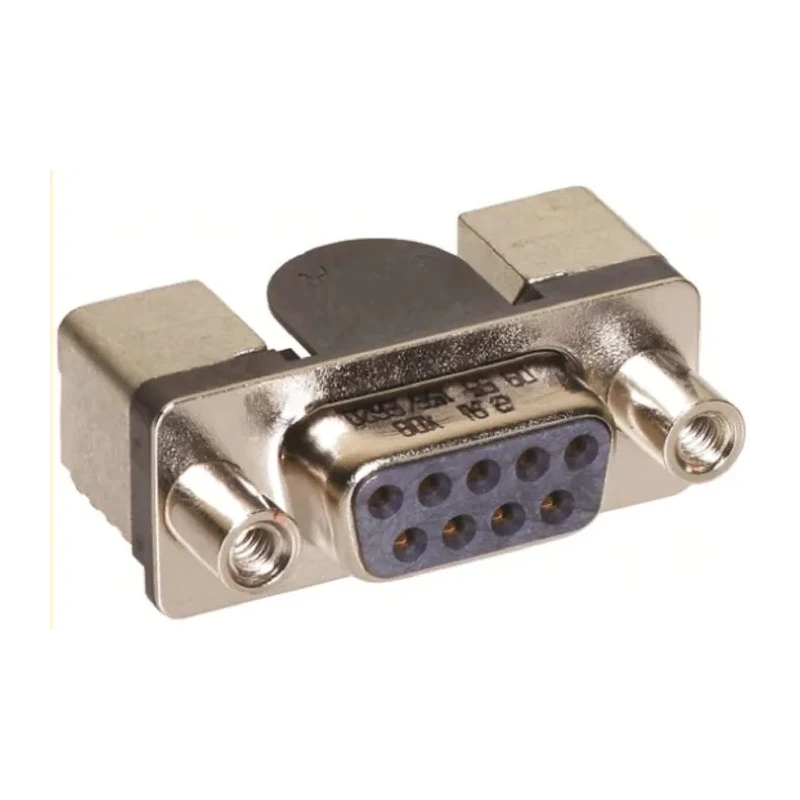

HARTING D-Sub 9 Way Right Angle 2.76 mm Pitch Surface Mount Female Connector with Board Lock 09551566619741
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Metal |
| Contact Material | Phosphor Bronze |
| Series | D-Sub |
| Mounting Hardware | Board Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| 692-6071 | 9 way with UNC 4-40 non-removable screw locks fitted |
| 787-0890 | 9 way with M3 non-removable screw locks fitted |
| 787-0897 | 15 way with M3 non-removable screw locks fitted |
Key Features
- Features 9 contacts with gold-plated phosphor bronze pins for reliable conductivity.
- Right angle orientation suitable for low profile PCB mounting applications.
- Constructed with metal housing ensuring durability and shielding.
- Terminated by soldering for secure electrical connection.
- Board lock mounting hardware provides stable mechanical fixing.
- Operates within temperature range from -55°C to 125°C.
- Low profile design (9.85 mm) ideal for space-constrained electronic setups.
- Manufactured to D-Sub series standards without additional certifications.
Product Description
HARTING 09551566619741 is a 9 Way Right Angle D-Sub Surface Mount Female Connector featuring a 2.76 mm pitch designed for electronics and electrical equipment applications requiring reliable PCB connections.
Built with a metal housing and gold-plated phosphor bronze contacts, this connector ensures excellent electrical contact with a current rating of 5A and withstands voltages up to 1000V. Its low profile right angle configuration facilitates optimized layout on PCBs, especially in compact designs.
The connector includes board lock mounting hardware for secure installation and features solder termination for strong electrical connections. It operates effectively within a temperature range from -55°C to 125°C, making it suitable for various industrial environments.
9 contacts with gold-plated phosphor bronze material for durability and conductivity. Right angle orientation enables space-saving PCB layouts. Metal housing provides robustness and EMI shielding. Board lock mounting assures secure mechanical stability.
Solder termination offers reliable electrical contact. Operating temperature range from -55°C up to 125°C. Voltage rating of 1000V and current rating of 5A for electrical performance. Low profile height of 9.85 mm fits constrained spaces.
This D-Sub connector series is widely used in industrial, electronic manufacturing, and data communication applications, providing dependable interconnect solutions. Explore the broad range of D-Sub Connectors and accessories available for specialized needs within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A, making it suitable for various electrical applications.
The voltage rating is up to 1000V, allowing it to handle high voltage applications effectively.
This connector features 9 contacts, providing reliable connectivity for various applications.
The housing is made of metal, while the contacts are gold-plated phosphor bronze, ensuring good conductivity.
It uses solder termination for secure and reliable electrical connections.
The pitch of this connector is 2.76 mm, designed for specific PCB layout requirements.
It includes board lock mounting hardware, which provides stable mechanical fixing during installation.
This connector has a right angle orientation, making it suitable for low profile PCB mounting applications.
The low profile height of this model is 9.85 mm, ideal for space-constrained electronic setups.
This connector is widely used in industrial, electronic manufacturing, and data communication applications.
The country of origin for this connector is China.
