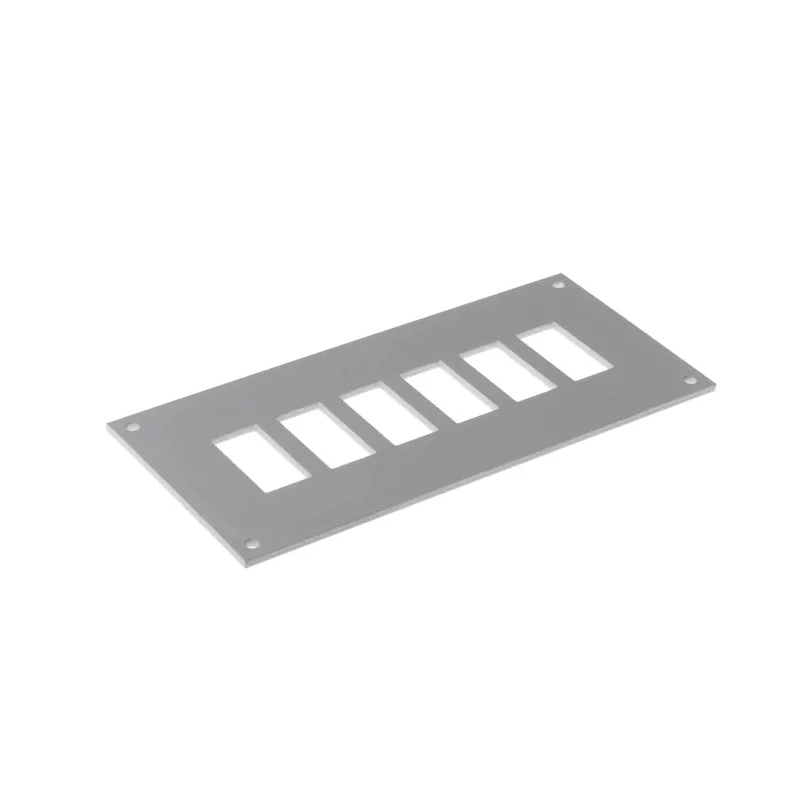

RS PRO Thermocouple Panel for Use with Up To 6 Fascia Sockets RoHS Standard 236-4154

RS PRO 236-4154 thermocouple panel is a precision accessory designed to accommodate up to 6 fascia sockets, suitable for applications requiring reliable thermocouple module paneling.

The panel utilizes anodised aluminium faceplates known for their robustness and resistance to harsh industrial environments, making it highly suitable for industrial, laboratory, automation, and electrical control applications.

It is compatible with both miniature (height 45mm) and standard (height 66mm) fascia panel mounting thermocouple sockets. The faceplates feature an etched matt and satin finish, contributing to their durability and aesthetic appeal.

The design of the panel includes 4 fixing holes with diameters of 3.25mm, strategically placed 5mm from the edges for secure mounting. Length formulas provide customization based on the number of ways required, calculated as Standard: (19 x n) + 31mm and Miniature: (15 x n) + 25mm, where n is the number of ways, allowing flexibility in panel sizing.

Available in multiple configurations, including miniature sizes of 2, 4, 6, 12, 16, 20, and 24 ways, and standard sizes from 1 up to 6 ways, the panel caters to a broad spectrum of industrial instrumentation requirements.

This thermocouple panel complies with RoHS directives, ensuring safety and environmental standards are met.

Manufactured in the United Kingdom, the RS PRO 236-4154 model adheres to strict quality controls, making it an optimal choice for precise thermocouple socket panel applications in sectors such as manufacturing, HVAC, electrical panel assembly, and process control systems.

Constructed with anodised aluminium faceplates for durability. Compatible with miniature and standard fascia thermocouple sockets. Etched matt and satin anodised finish for corrosion resistance. Standard height measures 66mm; miniature height measures 45mm.

Includes fixing holes 4 x 3.25mm diameter, positioned 5mm from edges. Available in various way configurations from 1 to 24 ways depending on size. RoHS compliant, suitable for environmentally conscious installations. Explore more in our Sensor Accessories category at EnvMart for quality electrical components.
