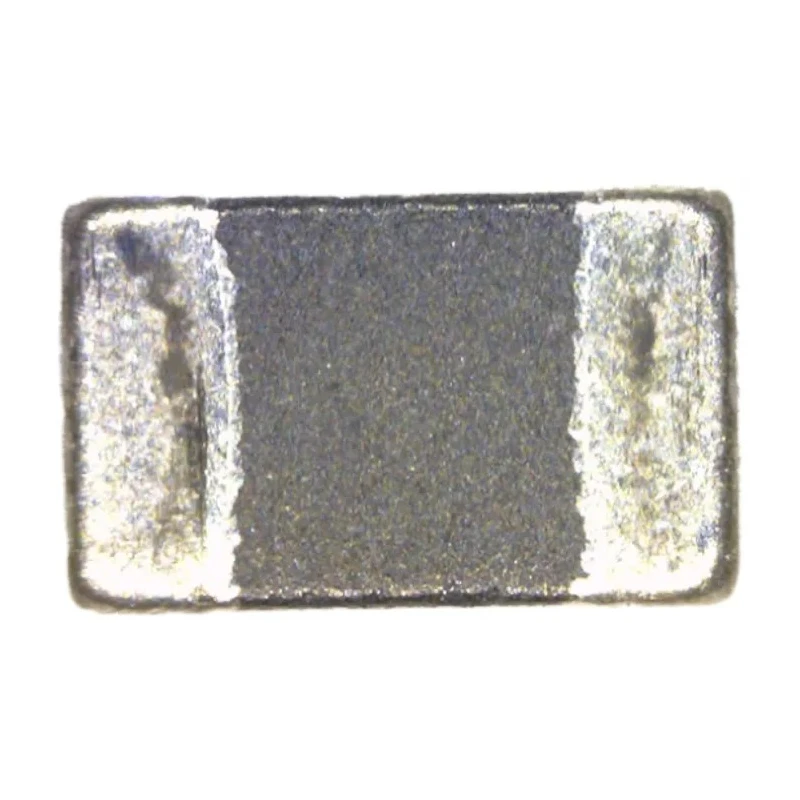

Murata 1 μH Shielded Multilayer Surface Mount Inductor 0805 Package Ferrite Core 1.3 A Idc LQM21PN1R0NGRD

Murata LQM21PN1R0NGRD is a shielded multilayer surface mount inductor featuring a ferrite core that delivers an inductance of 1 μH. Designed in the compact 0805 package, this inductor supports a maximum DC current of 1.3 A, making it suitable for various electronic applications requiring stable inductive performance in small form factors.

The multilayer chip choke construction uses Murata's original process technology and magnetic materials, offering stable operation with a ±30% inductance tolerance. It supports operating temperatures from -55°C up to 125°C, catering to automotive and industrial environment requirements without compromising performance.

This model incorporates shielding with a ferrite core to reduce electromagnetic interference, improving circuit reliability and compliance with EMC regulations. Its maximum self-resonant frequency of 50 MHz allows use in a wide frequency spectrum.

Packaged on embossed tape, the LQM21PN1R0NGRD is ready for automated insertion into PCB assemblies, enhancing production efficiency. The termination style is solder, compatible with conventional surface mount manufacturing processes.

With compact dimensions (2.0 mm length × 1.25 mm depth × 0.9 mm height), this inductor suits space-constrained electronic designs across industrial, automotive, consumer electronics, and telecommunications equipment sectors.

The inductor uses a 0805 package suitable for compact surface mount designs. Features a multilayer construction providing stable magnetic performance. Inductance tolerance is ±30%, suitable for general purpose applications.

Maximum operating temperature reaches up to 125°C, accommodating demanding environments. The ferrite core core material ensures effective shielding and reduces electromagnetic interference. RoHS compliant and packaged on embossed tape, enabling easy automated assembly.

Designed for applications requiring up to 50 MHz self-resonant frequency. Compact dimensions of 2.0 mm length, 1.25 mm depth, and 0.9 mm height. Termination style is solder, compatible with standard PCB mounting processes.

This Murata surface mount inductor is ideal for designers seeking reliability and efficiency in multilayer inductors. Its use cases include power supply filtering, noise suppression, signal integrity in electronic circuits, and various industrial and automotive electronic applications. Explore more options within the Surface Mount Inductor category on EnvMart to find complementary components for your projects.
