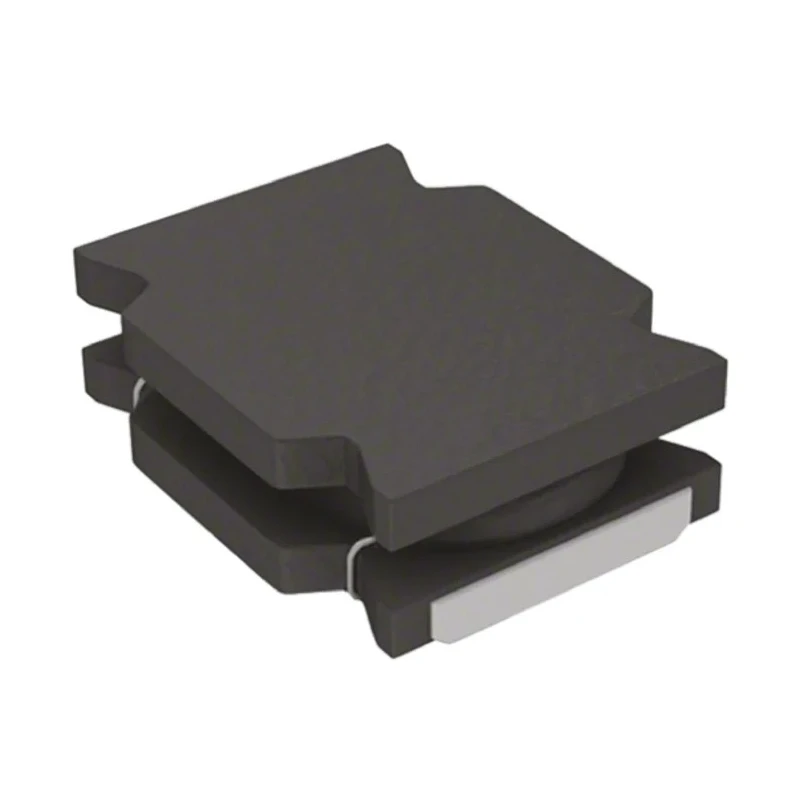

Murata Wirewound Surface Mount Inductor 68 μH ±10% 100 mA 0806 Ferrite Core LQH2MCN680K02L
Specifications
| Country of Origin | Japan |
|---|---|
| Size | 2.0x1.6mm (0806) |
| Brand | Murata |
| Height | 0.9mm |
| Length | 2mm |
| Model | LQH2MCN680K02L |
| Depth | 1.6mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 68μH |
| Standards/Approvals | RoHS |
| Package/Case | 0806 |
| Maximum DC Current | 100mA |
| Pin Count | 2 |
| Maximum DC Resistance | 8.58Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 14MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact size measuring 2.0 x 1.6 mm with 0.9 mm height for space-saving PCB layouts.
- Constructed with a ferrite core and solder termination style for reliable electrical connections.
- Operates efficiently within temperature range of -40°C to 85°C.
- Embossed tape packaging facilitates automated pick-and-place assembly processes.
- Low maximum DC resistance of 8.58 Ω ensures minimal power loss.
- Wirewound construction provides stable inductance and high self-resonant frequency of 14 MHz.
- RoHS-compliant and moulded design suitable for environmental safety standards.
- Two-pin count suitable for surface mounting on electronic circuit boards.
Product Description
Murata LQH2MCN680K02L is a high-quality wirewound surface mount inductor featuring a ferrite core designed for electronic applications requiring reliable inductance of 68 μH with ±10% tolerance. This compact 0806-sized component measures 2.0 mm in length, 1.6 mm in depth, and 0.9 mm in height, facilitating integration into miniature and densely packed circuit boards.
The inductor supports a maximum DC current of 100 mA with a low maximum DC resistance of 8.58 Ω, ensuring energy efficient performance. Its solder termination style and embossed tape packaging enable efficient SMT assembly ideal for automated manufacturing lines.
Rated for operation across a temperature range from -40°C to 85°C, this inductor complies with RoHS environmental standards, making it suitable for automotive, industrial, and consumer electronics applications where durability and compliance are critical.
The wirewound construction offers excellent inductance stability with a high self-resonant frequency of 14 MHz, suitable for a variety of filtering, energy storage, and signal tuning functions. The absence of shielding allows for cost-effective applications without additional electromagnetic interference containment needs.
Compact 0806 package size measuring 2.0 x 1.6 x 0.9 mm. Ferrite core and wirewound inductor construction for stable performance. Maximum DC current rating of 100 mA with low DC resistance. RoHS compliant and environmentally safe.
Solder termination style suitable for surface mounting. Operating temperature between -40°C and 85°C. Embossed tape packaging supports automated SMT assembly. High self-resonant frequency of 14 MHz for efficient signal handling.
This Surface Mount Inductor is ideal for use in industrial electronics, telecommunications, automotive electronics, power supplies, and other precision electronic devices. Murata’s LQH2MCN680K02L ensures reliable inductive performance in demanding environments.
Explore a broad range of inductors and related electronic components at EnvMart for your specialized technical needs.
