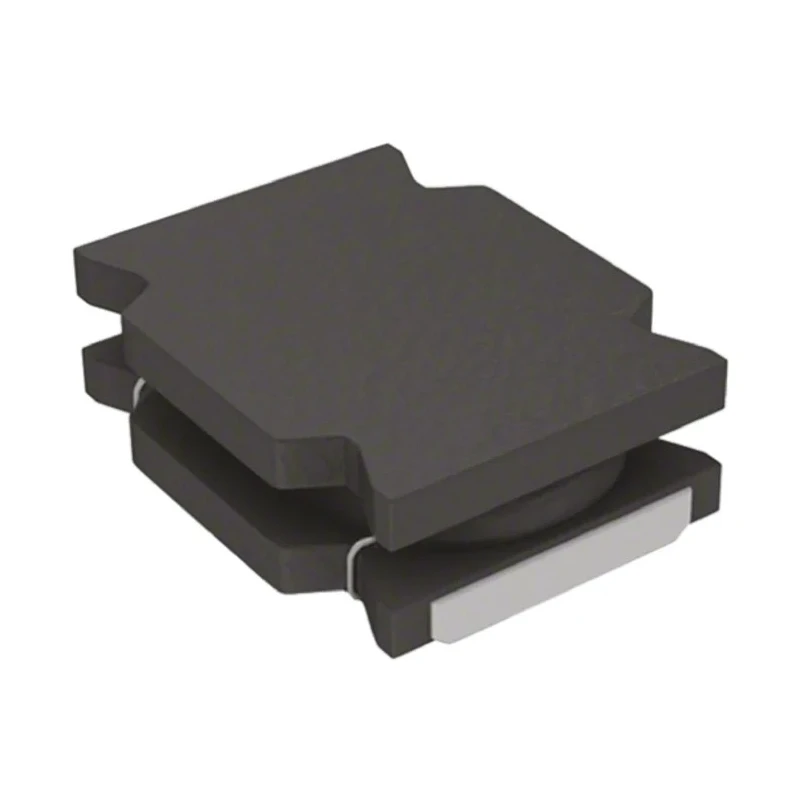

Murata Unshielded Wirewound Surface Mount Inductor 56μH 110mA 0806 Ferrite Core LQH2MCN560K02L

Murata LQH2MCN560K02L is an unshielded wirewound surface mount inductor designed for use in compact electronic circuits requiring stable inductance. This inductor features a ferrite core which enhances magnetic performance and minimizes energy losses in PCB applications. Its 0806 package size (2.0x1.6mm) suits designs with tight space constraints while maintaining reliable electrical characteristics.

The 56μH inductance with ±10% tolerance makes it suitable for filtering, energy storage, and signal conditioning in power supplies, communication devices, and consumer electronics. It supports a maximum DC current of 110mA and has a maximum DC resistance of 7.41Ω, balancing efficiency and thermal performance.

The device is rated for a maximum operating temperature of 85°C, enabling use in environments with moderate thermal conditions. With solder termination style, it is compatible with standard surface mount manufacturing techniques and packaged on embossed tape for seamless integration into automated assembly lines.

This inductor also provides a maximum self-resonant frequency of 17MHz, useful for applications requiring stable operation in RF and signal frequencies. Its wirewound construction ensures robustness and consistent inductance over time. The LQH series product is RoHS compliant, meeting environmental standards for hazardous substance reduction.

Primarily used in industrial, electronics manufacturing, communication equipment, and power supply circuits, this surface mount inductor offers dependable performance in a compact form factor. Murata's expertise in magnetic components ensures quality and longevity for critical applications.

Compact 0806 package size with dimensions 2.0x1.6mm. Constructed with ferrite core material for stable magnetic properties. Inductance tolerance of ±10% suitable for general electronics applications. Maximum DC resistance of 7.41Ω optimizing energy efficiency.

Maximum operating temperature up to 85°C for reliable performance. Solder termination style compatible with surface mount technology (SMT). Embossed tape packaging for automated assembly processes. Maximum self-resonant frequency of 17MHz ensuring frequency stability.

Wirewound inductor construction providing robust inductance characteristics. Compliant with RoHS standards ensuring environmental safety. Explore more Surface Mount Inductors and electronic components from leading brands in the Electronics & Electricals category at EnvMart.
