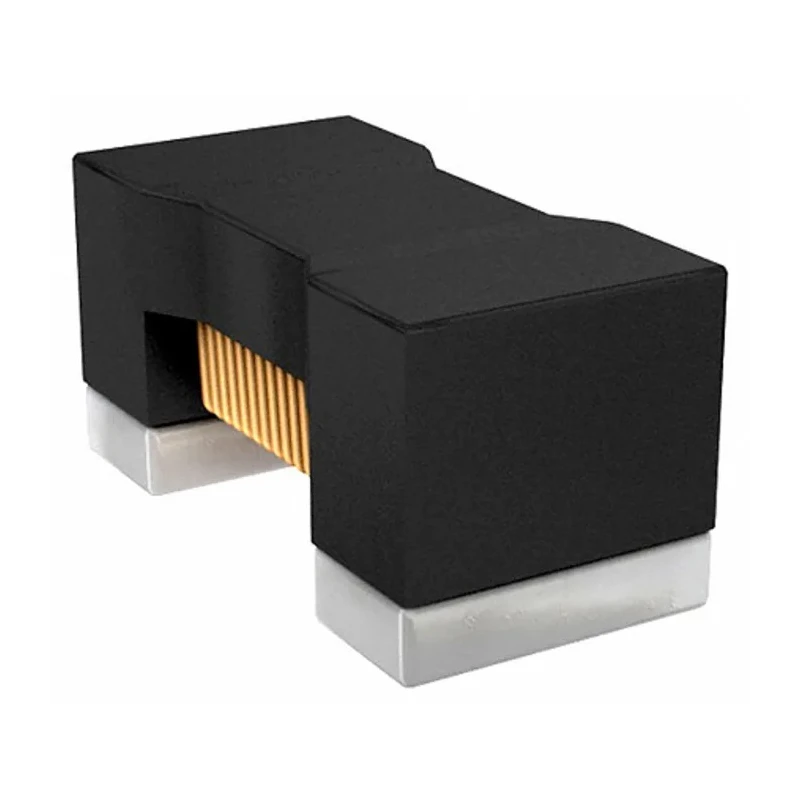

Murata 0603 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 91 nH ±2% 230 mA Idc Q:34 LQW18AN91NG00D

Murata LQW18AN91NG00D is a high-quality 0603 unshielded wirewound surface mount inductor featuring a ferrite core. It has a nominal inductance of 91 nH with a tolerance of ±2%, making it suitable for precision high-frequency circuit designs.

This inductor supports a maximum DC current of 230 mA and operates reliably within a temperature range of -55°C to 125°C, supporting both industrial and telecommunications applications.

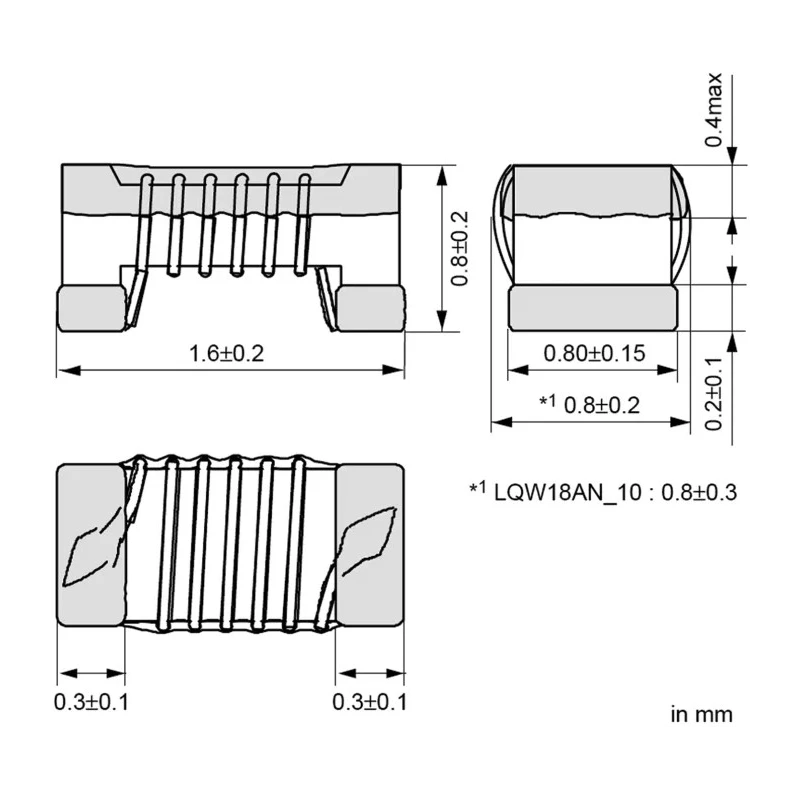

The compact 0603 package measures 1.6 mm in length, 0.8 mm in height and depth, which allows for dense PCB mounting in modern electronic devices. The wirewound construction provides a minimum quality factor of 34 and a maximum self-resonant frequency of 1.9 GHz, suitable for VHF and UHF frequency ranges.

The ferrite core enhances inductance stability while the low maximum DC resistance of 640 mΩ reduces power losses, improving circuit efficiency. The termination style is solder, facilitating surface mount technology assembly.

Packaged in paper tape, this product is ready for automated insertion machinery, improving production efficiency. It is RoHS compliant, ensuring environmental safety standards. Wirewound construction with high resonance frequency and quality factor.

Compact 0603 package size with precise dimensions. Suitable for Bluetooth, GSM, and wireless LAN high-frequency circuits. Wide operating temperature range and stable inductance. Low maximum DC resistance for efficient operation.

Ferrite core material for enhanced performance. Solder termination for easy surface mounting. RoHS compliance and packaged in paper tape for automated assembly.

Ideal for use in industrial, telecommunications, and commercial electronic assemblies. Discover a wide range of Surface Mount Inductors and related components available at EnvMart.
