Murata Wirewound Surface Mount Inductor 4.7 nH ±0.1 nH 750 mA DC Current Ferrite Core 0402 Package LQW15AN4N7B00D

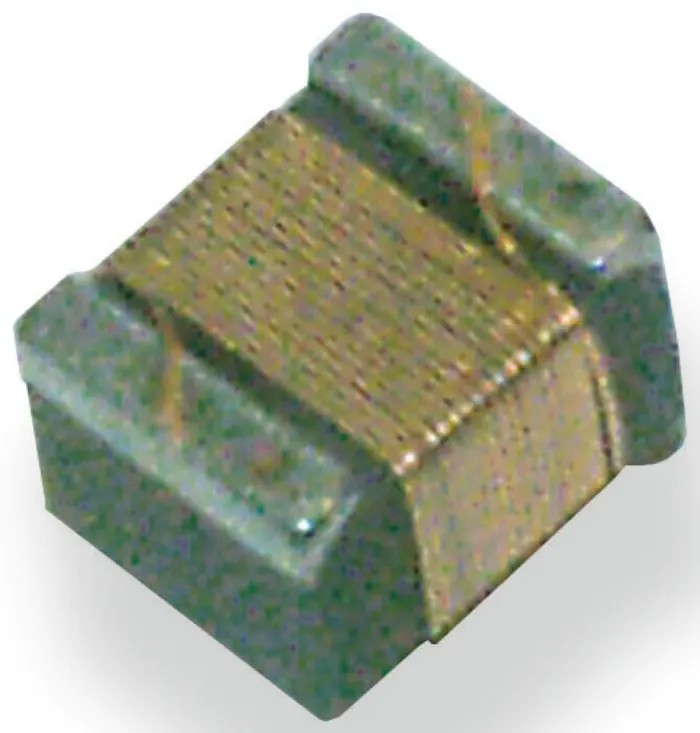

Murata LQW15AN4N7B00D wirewound surface mount inductor is engineered with a ferrite core in a 0402 package size for compact electronic designs.

This inductor offers an inductance of 4.7 nH with a tight tolerance of ±0.1 nH, ensuring precision in high frequency circuits commonly found in wireless telecommunications such as Bluetooth, GSM, and WLAN devices.

Designed to handle a maximum DC current of 750 mA and a maximum DC resistance of 70 mΩ, it delivers reliable performance with minimal power losses. The component supports an operating temperature range from -55°C to 125°C, enhancing durability and suitability across varied environmental conditions.

Its wirewound construction and ferrite core material provide high quality factor and low noise, with a minimum quality factor of 25 and a maximum self-resonant frequency of 8 GHz, optimizing operation in VHF and UHF frequency bands.

The inductor is RoHS compliant and intended for surface mount assembly, supplied on paper tape to support automated manufacturing processes. Termination is designed for soldering, ensuring strong mechanical and electrical connections.

The inductance value is 4.7 nH with ±0.1 nH tolerance. Maximum DC current rating of 750 mA. Compact 0402 package with dimensions 1 mm length, 0.5 mm height, and 0.6 mm depth. Low maximum DC resistance of 70 mΩ. Operating temperature range: -55°C to 125°C.

Wirewound construction with ferrite core. Minimum quality factor of 25 and resonant frequency up to 8 GHz. RoHS compliant and solder termination style. Packaging format: paper tape for assembly.

This inductor is ideal for use in industrial, consumer, and telecommunication electronic circuitry requiring compact, high-frequency inductors with reliable DC handling capabilities.
