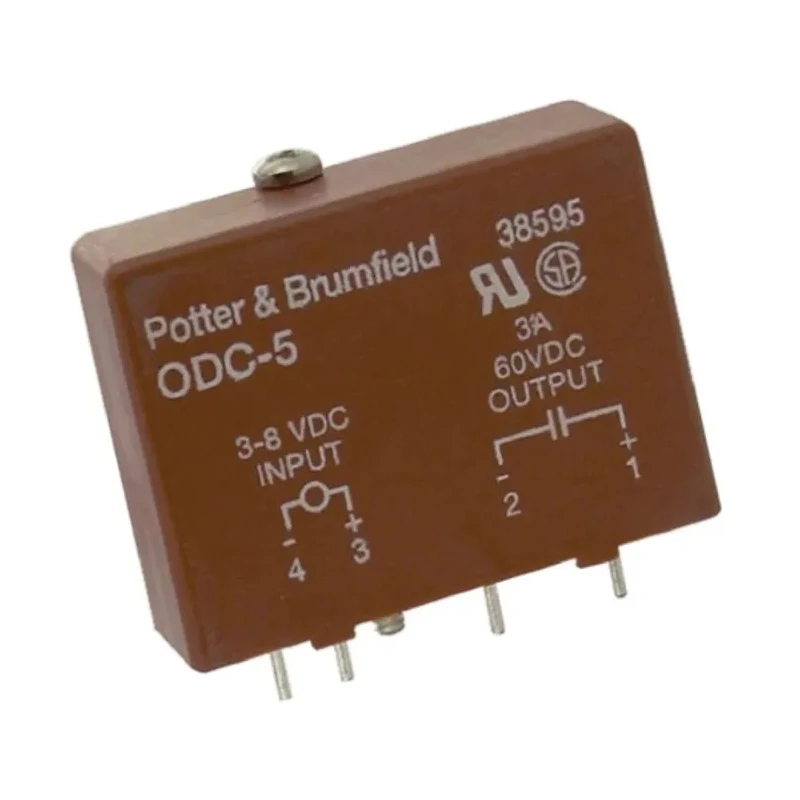

TE Connectivity Solid State Relay PCB Mount, 3 A Load Current, 60 V dc Load Voltage, 8 V dc Control ODC5

TE Connectivity ODC5 solid state relay is a PCB mount device engineered to handle a maximum load current of 3 A and a maximum load voltage of 60 V dc, with a control voltage range of 3 V to 8 V dc. It serves as an efficient interface between microprocessor or computer-based control systems and external loads, providing excellent photo-isolation to protect sensitive electronics from electrical noise and transient spikes.

This relay features a single-pole single-throw (SPST) normally open (NO) contact configuration, suitable for a variety of switching applications in industrial automation, HVAC control, and electronic equipment. Designed to operate reliably in temperatures ranging from -30°C to 80°C, it is well suited for demanding environmental conditions.

The ODC5 is housed in an industry standard package with PCB terminals, facilitating easy and secure mounting on printed circuit boards. Its compact size, measuring 43.2 mm in length, 31.8 mm in height, and 1.0 inch in width, allows integration into space-constrained applications.

Performance specifications include a low off-state leakage current of 500 μA, minimizing power loss when the relay is inactive, and a capacitance of 8 pF to reduce noise coupling in sensitive signals. The relay meets recognized industry standards and approvals, including UL94V-0 safety rating and certifications documented under File LR38595M77, File E81606, and E29244, ensuring compliant and safe operation.

Applications for this solid state relay span industrial control systems, automated machinery, instrumentation, and other electronics requiring reliable, noise-immune switching. Its photo-isolated construction and robust electrical characteristics make it ideal for integration in control panels, PLCs, and embedded control units.

With the ODC5 relay, TE Connectivity delivers a high-quality solution engineered for durability and precise control in industrial and commercial environments. Offers reliable photo-isolation for microprocessor-based control systems.

Supports SPST contact configuration for switching applications. Operates within a temperature range from -30°C to 80°C. Features PCB terminal type for easy installation on printed circuit boards. Compact dimensions of 43.2 mm length, 31.8 mm height, and 1.0 in width.

Industry standard package ensures compatibility and easy replacement. Minimal off-state leakage current of 500 μA reducing power loss. Low capacitance of 8 pF for reduced signal interference. Explore more electrical relays and Solid State Relay options with TE Connectivity in the Electronics & Electricals category at EnvMart.
