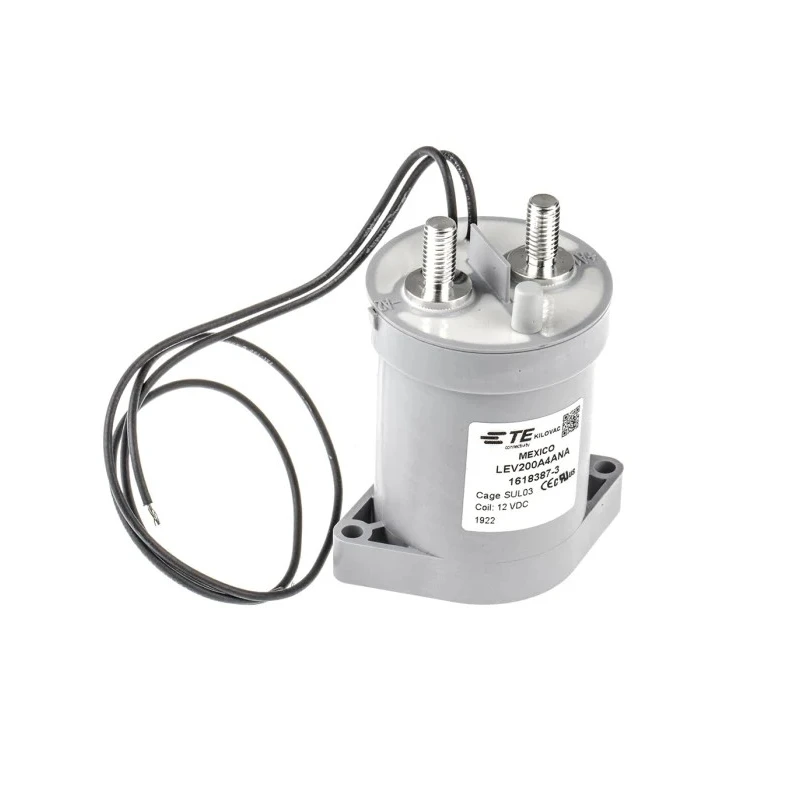

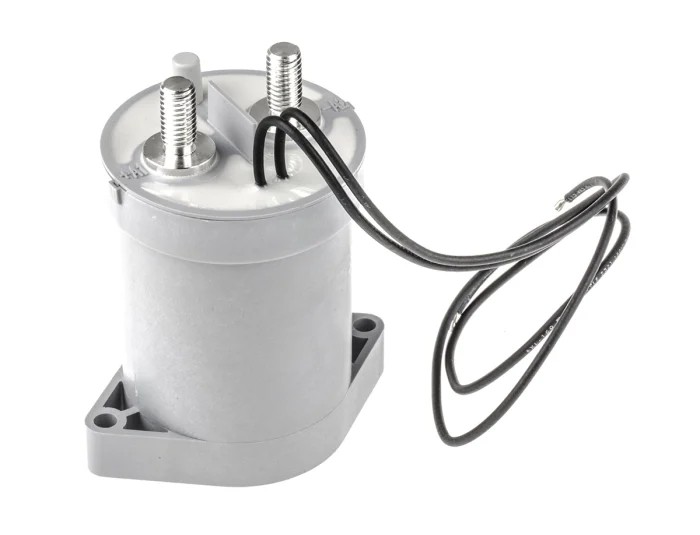

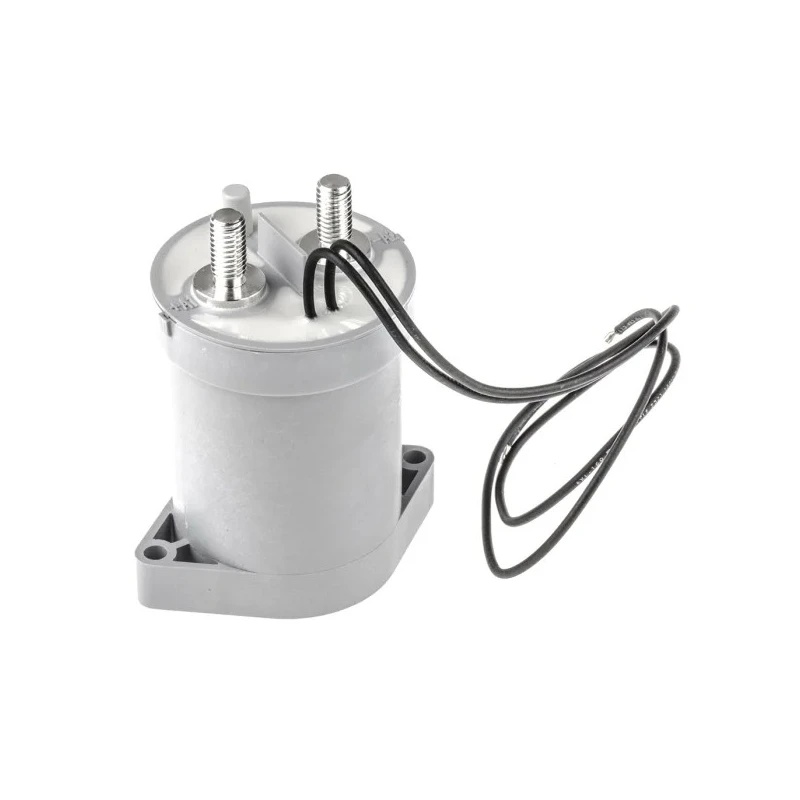

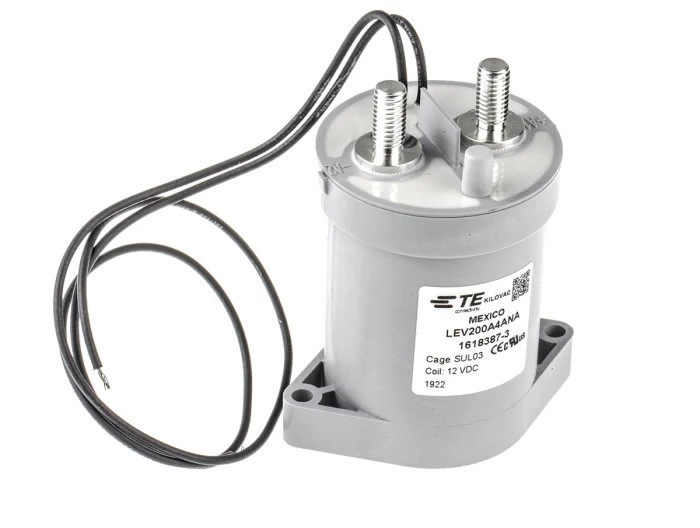

TE Connectivity LEV200 Contactor, 12V DC Coil, 1-Pole, 500A Contact Current, 900V Contact Voltage LEV200
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Function | Safety |
| Length | 93.98mm |
| Model | LEV200 |
| Depth | 60.45mm |
| Width | 77.72mm |
| Mount Type | Panel |
| Series | LEV200 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Contact Voltage | 900V |
| Coil Voltage | 12V dc |
| Normal State Configuration | 1 NO |
| Contact Current | 500A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 200A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Safety |
| Pole and Throw Configuration | SPST |
Key Features
- Operates with a 12V DC coil voltage for reliable control.
- Single pole (1-pole) design suitable for power and motor control circuits.
- Supports a maximum contact current of 500 amps for heavy-duty applications.
- Maximum contact voltage rating of 900 volts DC ensures high voltage isolation.
- Includes one auxiliary contact configured as 1 NO for control signaling.
- Panel mount type with lug ring terminal connections for secure installation.
- Operational temperature range from -40°C to 85°C suitable for industrial environments.
- Compact dimensions approximately 93.98mm length, 77.72mm width, and 60.45mm depth.
Product Description
TE Connectivity LEV200 Contactor features a 12V DC coil and single-pole configuration, designed primarily for safety-oriented switching and control in industrial applications. This contactor is rated for a high contact current of 500 amperes and a maximum contact voltage of 900 volts DC, suitable for motor control circuits and power isolation.
The device includes one auxiliary contact with a normally open (1 NO) configuration and uses lug ring terminals for secure, panel-mounted installation. Rated for operation within a wide temperature range from -40°C to 85°C, it is built to withstand harsh industrial environments.
The compact package measures 93.98 mm in length, 77.72 mm in width, and 60.45 mm in depth, occupying only 65.5 cm3 volume. It is hermetically sealed, providing intrinsic safety and high isolation of 8kV between open contacts.
Typical applications include use in power and motor control circuits, industrial machinery safety systems, automotive battery switching, and backup power systems. The contactor's robust construction ensures reliable performance in demanding environments.
Operates with a 12V DC coil voltage for reliable control. Single pole (1-pole) design suitable for power and motor control circuits. Supports a maximum contact current of 500 amps for heavy-duty applications. Maximum contact voltage rating of 900 volts DC ensures high voltage isolation.
Includes one auxiliary contact configured as 1 NO for control signaling. Panel mount type with lug ring terminal connections for secure installation. Operational temperature range from -40°C to 85°C suitable for industrial environments.
Compact dimensions approximately 93.98mm length, 77.72mm width, and 60.45mm depth. Hermetically sealed and intrinsically safe construction for reliable operation. Applications include industrial machinery, automotive battery switching, and circuit protection.
Explore more products in the TE Connectivity range and other Contactors for comprehensive automation and control solutions available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating of this model is 500 amps, making it suitable for heavy-duty applications.
This contactor operates with a coil voltage of 12V DC.
The maximum contact voltage rating for this contactor is 900 volts DC, ensuring high voltage isolation.
The dimensions of this model are approximately 93.98 mm in length, 77.72 mm in width, and 60.45 mm in depth.
It is designed for panel mounting and features lug ring terminal connections for secure installation.
This contactor operates within a temperature range of -40°C to 85°C, suitable for industrial environments.
This model is a single-pole (1-pole) contactor, suitable for power and motor control circuits.
Yes, it includes one auxiliary contact configured as normally open (1 NO) for control signaling.
This contactor complies with RoHS standards, ensuring it meets environmental regulations.
The auxiliary contact in this model is configured as normally open (1 NO).
Typical applications include power and motor control circuits, industrial machinery safety systems, and automotive battery switching.
The LEV200 is hermetically sealed, providing an intrinsic safety rating with high isolation of 8kV between open contacts.
