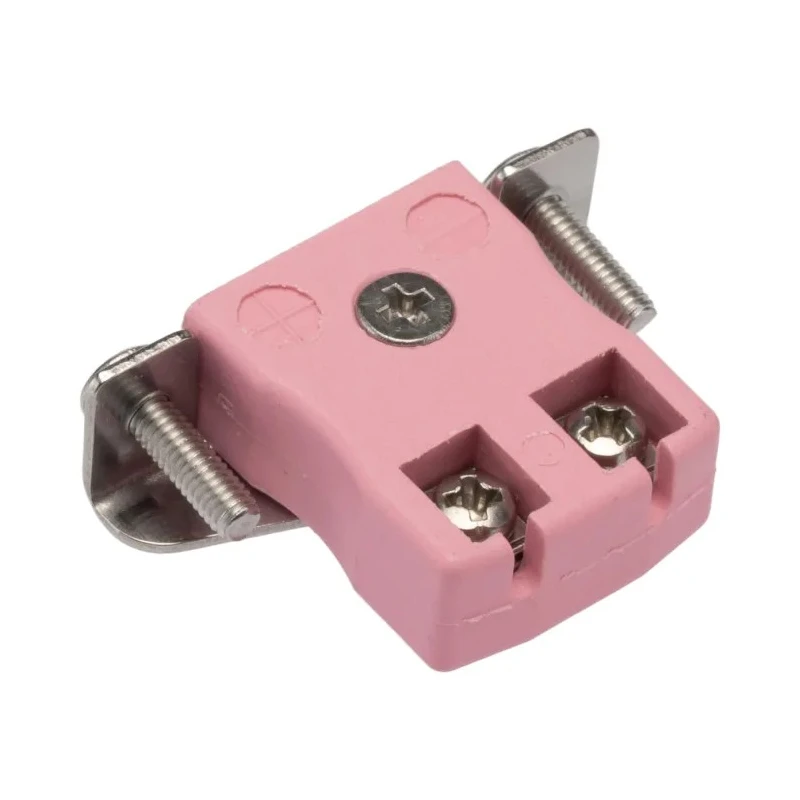

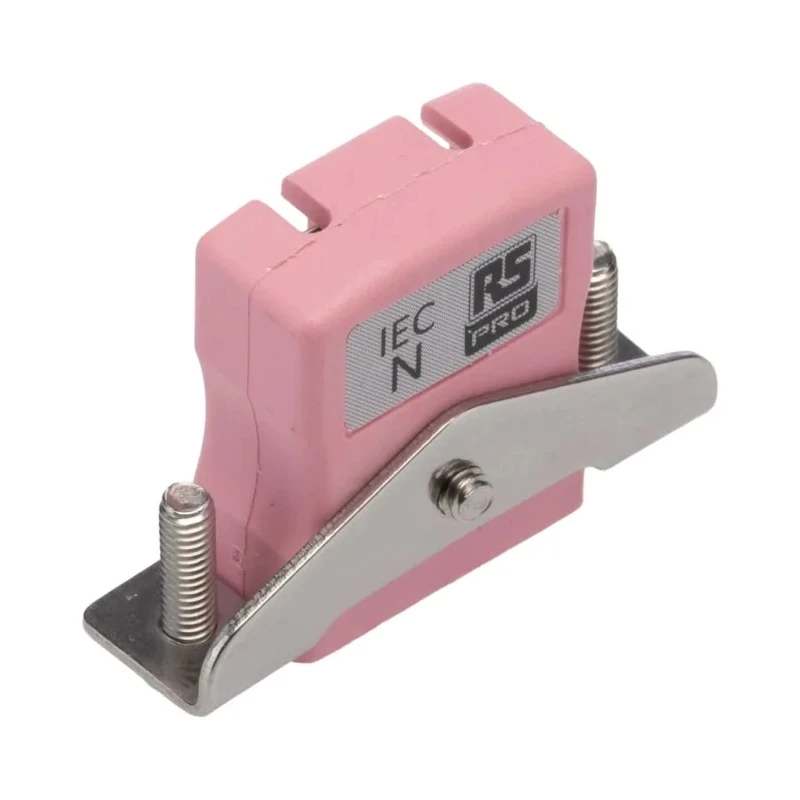

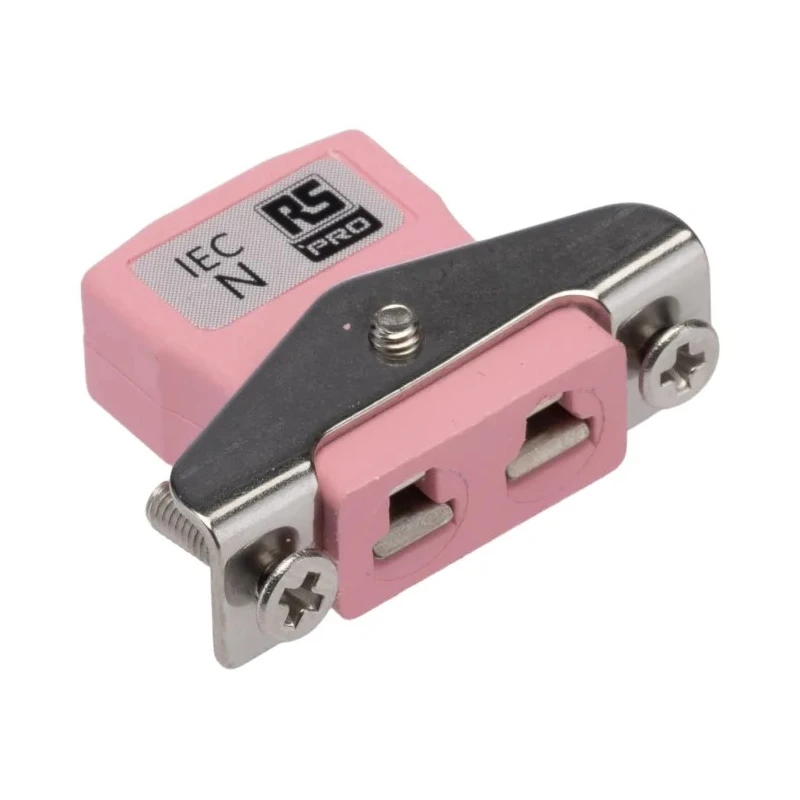

RS PRO Thermocouple Connector for Use with Type N Thermocouple, RoHS Compliant, IEC Standard 774-7245

RS PRO 774-7245 Thermocouple Connector for Use with Type N Thermocouple is a miniature, quick wire, in-line panel mount socket compatible with temperature sensing applications across industrial, laboratory, HVAC, and manufacturing sectors.

This connector utilizes contacts made from authentic thermocouple alloys, ensuring precise and reliable signal fidelity essential for accurate temperature measurement systems. The housing is crafted from impact-resistant glass-filled thermoplastic materials, capable of withstanding high operating temperatures up to 220°C.

The stainless steel brackets on either side facilitate rapid and secure panel mounting, improving installation efficiency in control panels and instrumentation assemblies. The product complies with RoHS environmental standards and adheres to IEC colour coding for seamless identification of Type N thermocouple use.

The design supports both stranded and solid thermocouple wires up to 4mm in diameter, with an easy 'jab-in' termination method that speeds up wiring while reducing connection errors. The flat polarised pins accepted by the female connector guarantee proper polarity and stable electrical connectivity.

Ideal for extending, replacing, or installing thermocouples in thermal measurement chains, this accessory maintains material consistency to prevent signal distortion, vital for industrial process control, HVAC monitoring, laboratory testing, and water treatment plant instrumentation.

True thermocouple alloys or compensating materials in contact pins ensure accuracy. Quick identification with IEC colour coded housing and clear type markings. Robust glass-filled thermoplastic housing for durability and heat resistance.

Stainless steel brackets provide secure mounting to panels. Capable of handling high temperatures up to 220°C reliably. Accommodates thermocouple cables up to 4mm diameter. 'Jab-in' wire termination for efficient, secure wiring.

Compatible with stranded or solid wires for versatile installation.

The RS PRO 774-7245 supports precision temperature sensing connections in a variety of industrial and laboratory scenarios. It effectively bridges temperature sensors and data acquisition equipment or control systems, ensuring minimal signal interference and integrity challenges.
