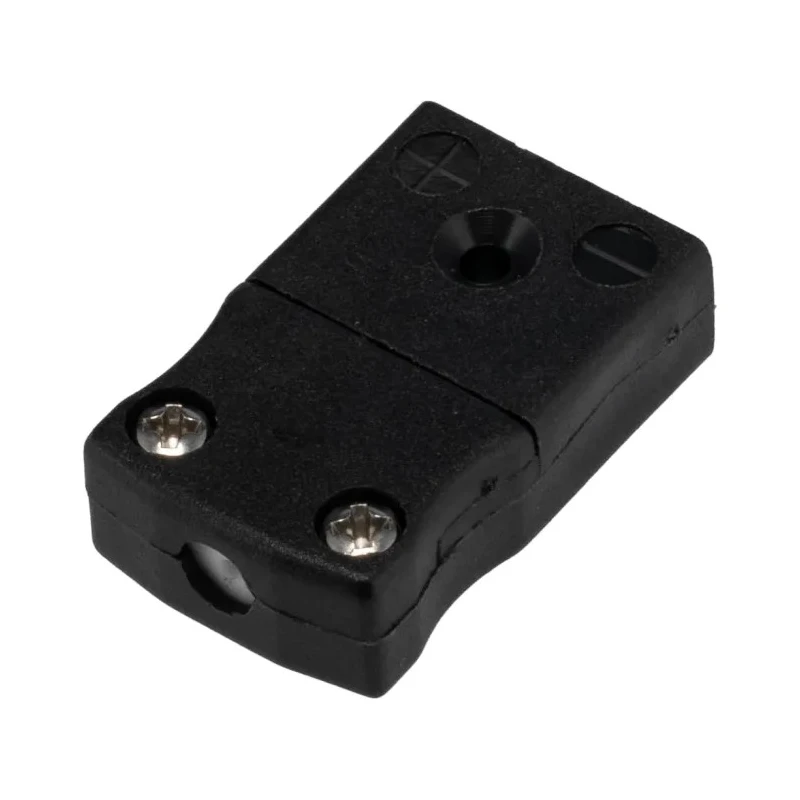

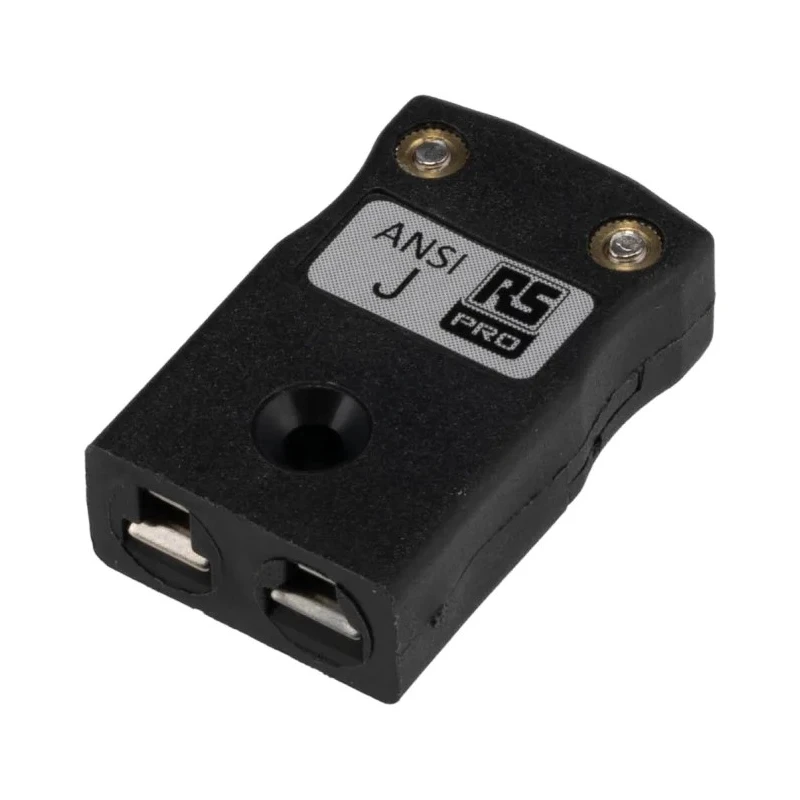

RS PRO Thermocouple Connector for Use with Type J Thermocouple, ANSI Compliant, RoHS Compliant Standard 769-1123

RS PRO 769-1123 Thermocouple Connector is engineered for use with Type J Thermocouples and meets ANSI and RoHS standards, delivering reliable and accurate temperature sensing connections. The miniature in-line socket connector is colour-coded according to ANSI specifications to simplify identification and reduce wiring errors.

Constructed from rugged glass-filled thermoplastic, the housing ensures high impact resistance and can operate safely in temperatures as high as 220°C. Contacts are made from true thermocouple alloys or compensating materials that match the thermocouple type, ensuring precise signal transmission without distortions.

This female socket connector accepts flat, polarized pins and allows connections with stranded or solid wires of up to 4mm diameter. The captive screw clamps enable quick and secure wiring, providing a safe and error-free means to replace or extend thermocouple assemblies.

Applications include industrial automation, laboratory instrumentation, HVAC systems, manufacturing process monitoring, and any scenario requiring dependable temperature measurement continuity. The connector's robustness and compliance with ANSI standards make it suitable for even the most demanding environments.

Rugged glass-filled thermoplastic housing with high-temperature resistance. True thermocouple alloy contacts for accurate readings. ANSI color-coded for easy identification of thermocouple type. Secure captive screw clamp connection method.

Compatible with cables up to 4mm diameter. Polarized flat pins ensure correct polarity and connection. RoHS compliant, environmentally safe manufacturing. Ideal for industrial and laboratory temperature measurement applications.

This set contains one RS PRO miniature Thermocouple Connector designed for Type J thermocouples. Explore more in the Thermal Sensors category at EnvMart for a complete temperature measurement solution.
