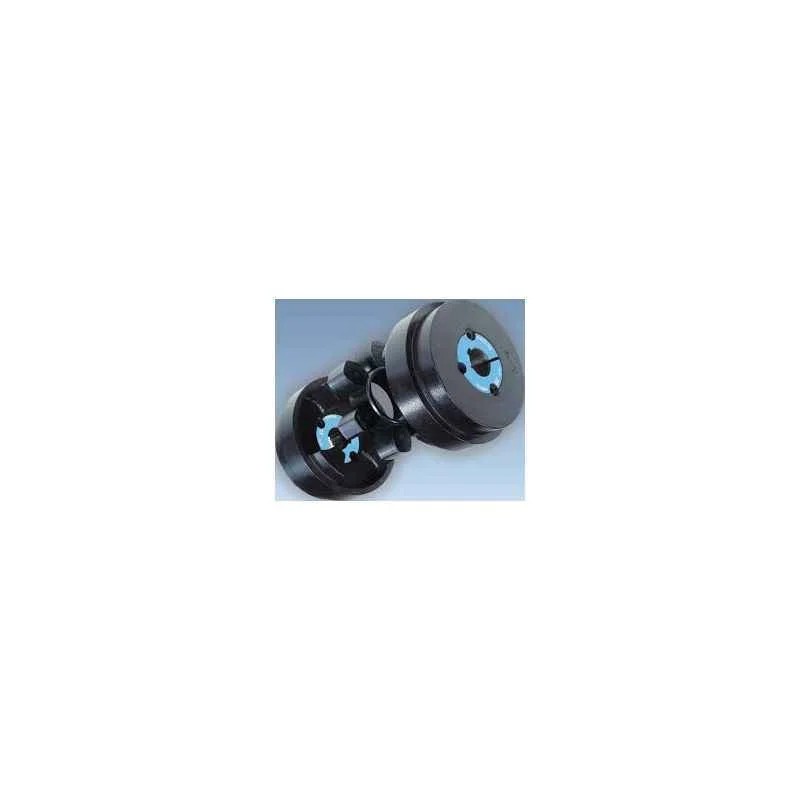

Fenner HRC Coupling with B Flange Pilot Bore, Bore Range 38-100 mm, Nominal Torque 2000 Nm, Size HRC 230

The Fenner HRC Coupling with B Flange Pilot Bore is meticulously engineered to deliver high reliability in industrial power transmission applications. This coupling unit, produced by Fenner, incorporates a pilot bore design with a bore size range from 38 mm up to 100 mm, making it suitable for a wide array of shaft diameters commonly found in machinery installations.

Equipped with a nominal torque rating of 2000 Nm, the coupling is built for heavy-duty drive systems, offering robust performance and operational safety. The interacting dog design ensures fail-safe operation, providing security against unexpected misalignments or overloads. Its mounting and alignment process is streamlined by machined outside diameters, enabling a straightforward fit with a simple straight edge for accurate installation.

The HRC Coupling accommodates incidental angular, parallel, and axial misalignments, which enhances operational flexibility and reduces the risk of premature wear or breakdown. Its power consumption, rated at 20.9 kW at 100 rpm, is matched to standard motor sizes, ensuring energy efficiency across a range of industrial setups.

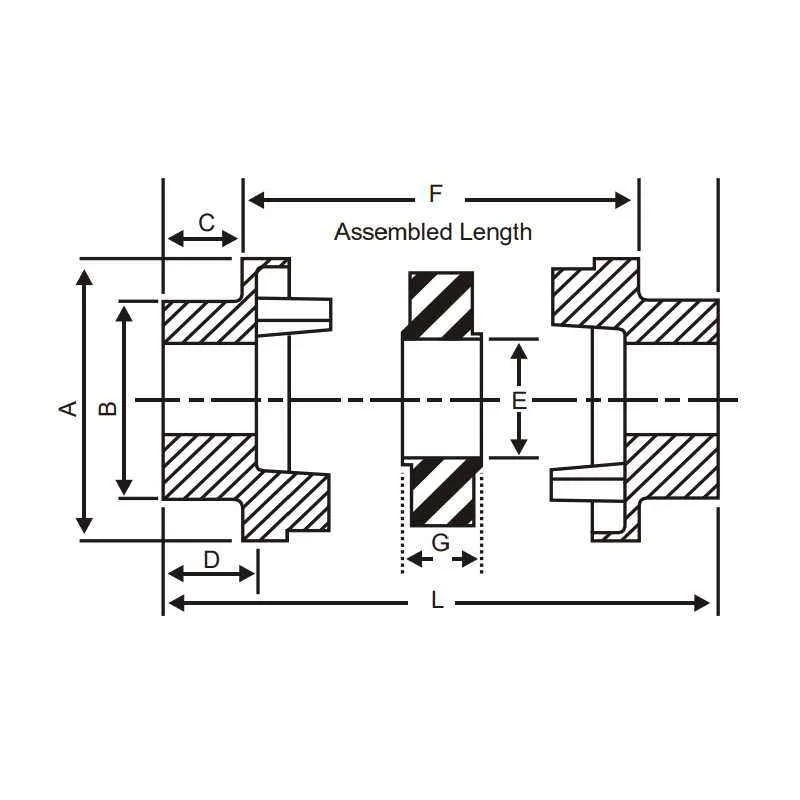

Constructed to minimize maintenance requirements, the coupling offers a long service life under normal industrial conditions. Size HRC 230 provides compatibility with a wide range of equipment. Standard dimensions include A (225 mm), B (155 mm), C (77 mm), D (90 mm), E (99 mm), F (85.5 mm), G (59.5 mm), L (239.5 mm).

This coupling is typically applied in manufacturing plants, construction equipment, power transmission assemblies, and other heavy engineering scenarios where reliability and efficient mechanical performance are paramount. The pilot bore configuration makes it a versatile option for adaptation to specific shaft requirements.

For industrial engineers and maintenance professionals seeking a trustworthy coupling solution, Fenner's HRC Pilot Bore with B Flange combines fail-safe design and easy fitting, backed by strong torque handling and operational efficiency. The unit is supplied as a single piece in protective packaging.

Features pilot bore with a bore range from 38 mm to 100 mm. Nominal torque rating of 2000 Nm ensures handling of heavy-duty loads. Fail-safe and reliable interacting dog design suitable for demanding environments. Simplifies installation with easy alignment and fitting using machined outside diameters.

Accommodates incidental misalignments for operational flexibility. Low maintenance requirements due to efficient power transmission. Rated power consumption of 20.9 kW at 100 rpm supports standard motor sizes. Supplied in size HRC 230 for compatibility with industrial equipment.
